B Cabling Diagrams and Remote Start/Stop
76 Installation and First Startup

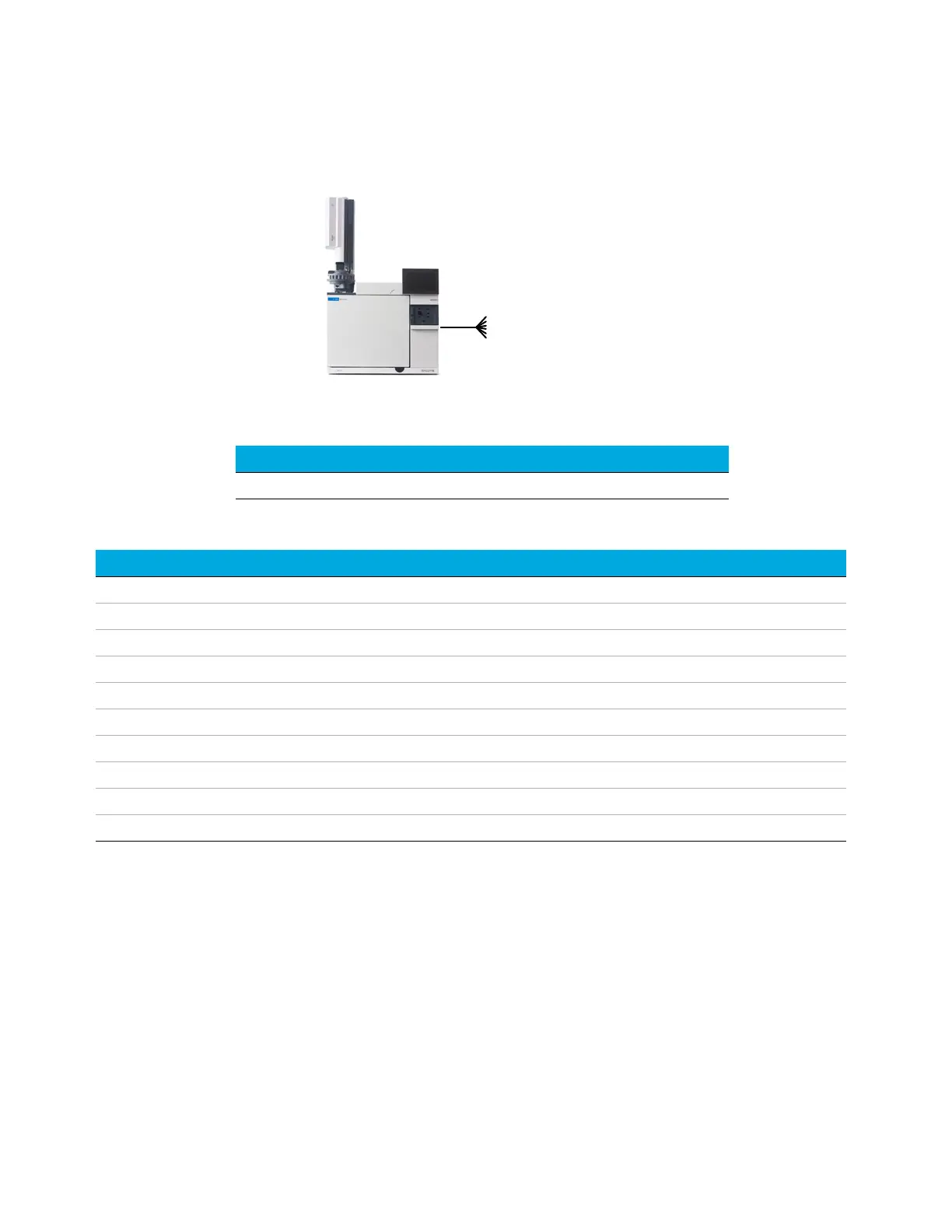

GC / External Events (unspecified, non-Agilent
instrument)
Number Part number and description
1 G1530-60590, External events cable, 8-pin/spade lugs
GC/ALS
1. External event cable,
8 pin/spade lugs,
G1530-60590
Connector Signal name Maximum rating Wire color Corresponds to valve #
24 volt control output
1 24 volt output 1 150 mA output Yellow 5
2 24 volt output 2 150 mA output Black 6
3 Ground Red
4 Ground White
Relay contact closures (normally open)
5 Contact closure 1 48 V AC/DC, 250 mA Orange 7
6 Contact closure 1 Green 7
7 Contact closure 2 48 V AC/DC, 250 mA Brown or violet 8
8 Contact closure 2 Blue 8
