Power Measurement How to Measure Power
102 Agilent 8163A/B, 8164A/B & 8166A/B Mainframes, Sixth Edition
Figure 53 The Window and Refresh Modes
To choose the <Refresh> MinMax mode:
1 Move to the Power Meter channel and press the [Details] softkey.
2 Move to the [MinMax Mode] parameter and press Enter.
3 Move to <Refresh>, by using the cursor key, and press Enter. The screen in
Figure 54 appears.

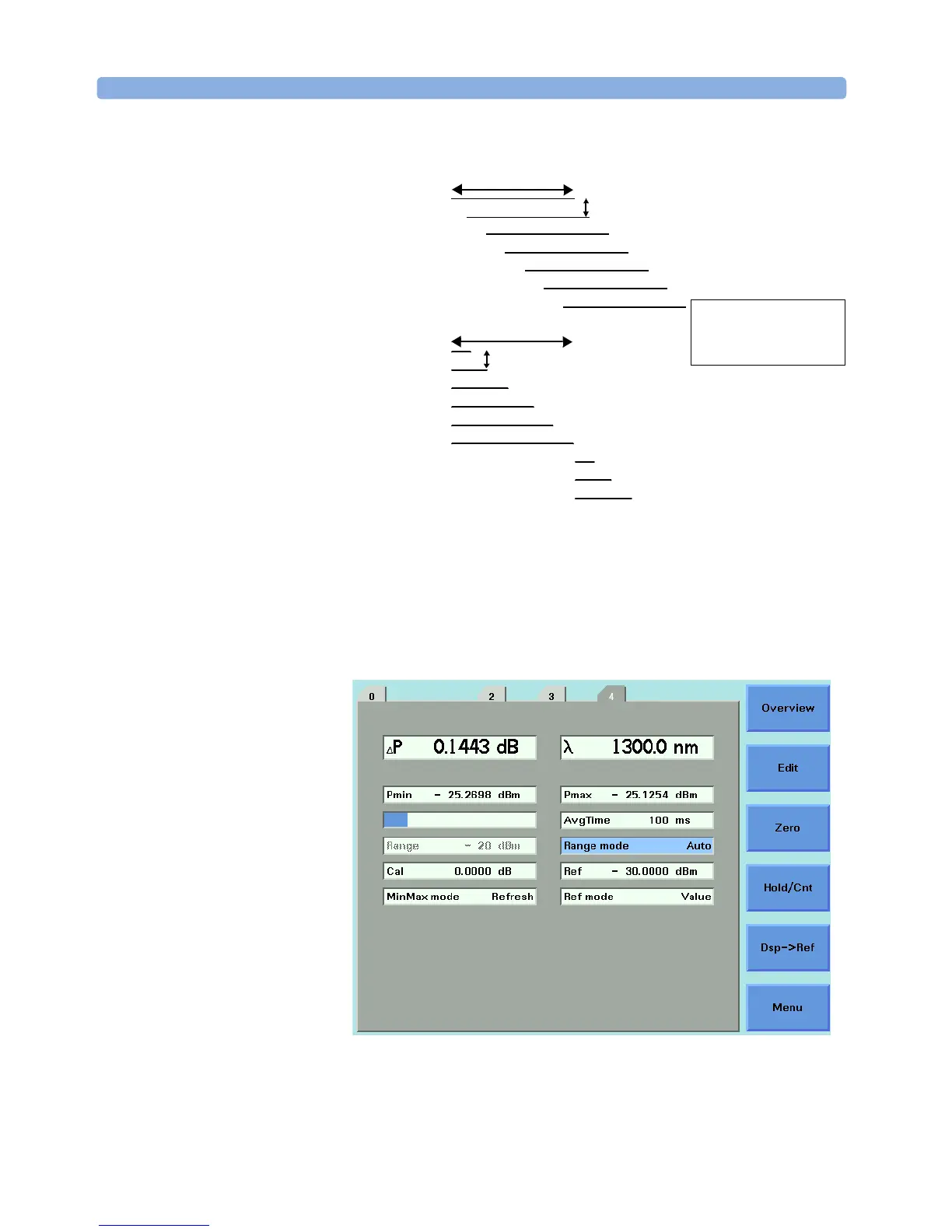

Figure 54 MinMax Mode Screen
4 Press Menu, move to <Data Points> and press Enter.
5 Enter 100 and press Enter.
Window
Refresh
N Samples
N Samples
Time for display to update
Time for display to update
The length of the lines
displayed represents the
size of the buffer at the
time of update
Mode
Mode
To Next Page
