Using the System Utilities Additional Information
Agilent 8163A/B, 8164A/B & 8166A/B Mainframes, Sixth Edition 71
How to Configure your Foot Pedal
You can use an Agilent 81610FP Foot Pedal (Part Number 81610-68709) to
generate triggers. This accessory is similar to a mouse, you press the Foot
Pedal and a trigger is generated. You can attach the Foot Pedal to the Input
Trigger BNC Connector, see “Input and Output Connectors” on page 310.
To configure your Foot Pedal:
1 Press the Config hardkey.
2 Move to the <Foot pedal support> menu option and press Enter. You see a box
displaying <On> and <Off>.

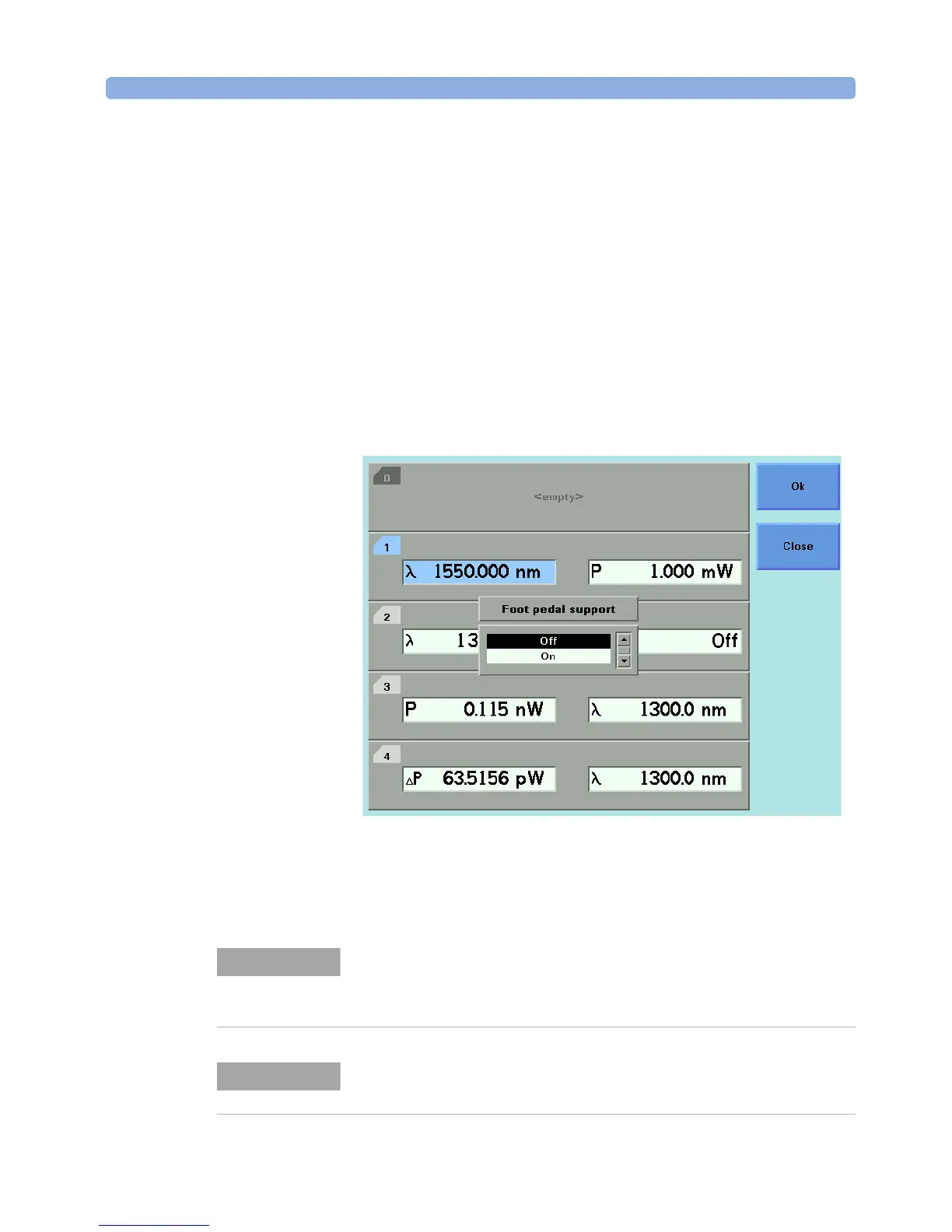

Figure 32 Enabling/Disabling the Foot Panel
3 Move to <On> to enable the Agilent 81610FP Foot Pedal or move to <Off> to
disable the Agilent 81610FP Foot Pedal.
4 Press Enter.
Valid for 8163A, 8164A, and 8166A only.
This functionality requires FPGA version 1.5 or higher. The FPGA version
number and date is displayed after you boot up the instrument.
The Trigger configuration must not be set to “disabled”
NOTE
NOTE
