GPIB Interface Installation and Maintenance
Agilent 8163A/B, 8164A/B & 8166A/B Mainframes, Sixth Edition 313
Connector

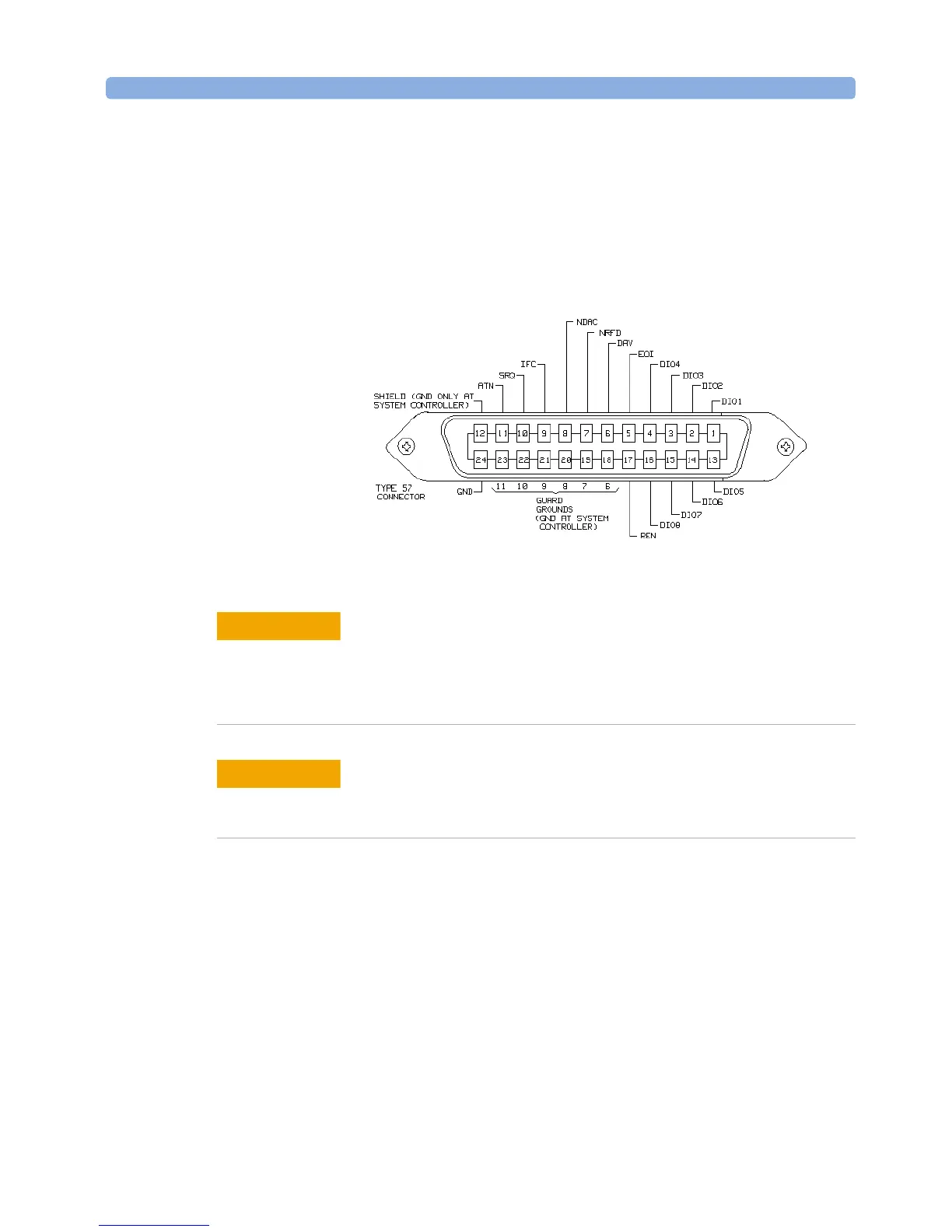

The following figure shows the connector and pin assignments.
Connector Part Number: 1251-0293
Figure 200 GPIB Connector
Agilent Technologies products delivered now are equipped with
connectors having ISO metric-threaded lock screws and stud
mounts (ISO M3.5×0.6) that are black in color. Earlier connectors
may have lock screws and stud mounts with English-threaded lock
screws and stud mounts (6-32 UNC) that have a shiny nickel finish.
It is recommended that you do not stack more than three
connectors, one on top of the other.
Hand-tighten the connector lock screws. Do not use a screwdriver.
CAUTION
CAUTION
