How to Use Triggers Tunable Lasers
Agilent 8163A/B, 8164A/B & 8166A/B Mainframes, Sixth Edition 151

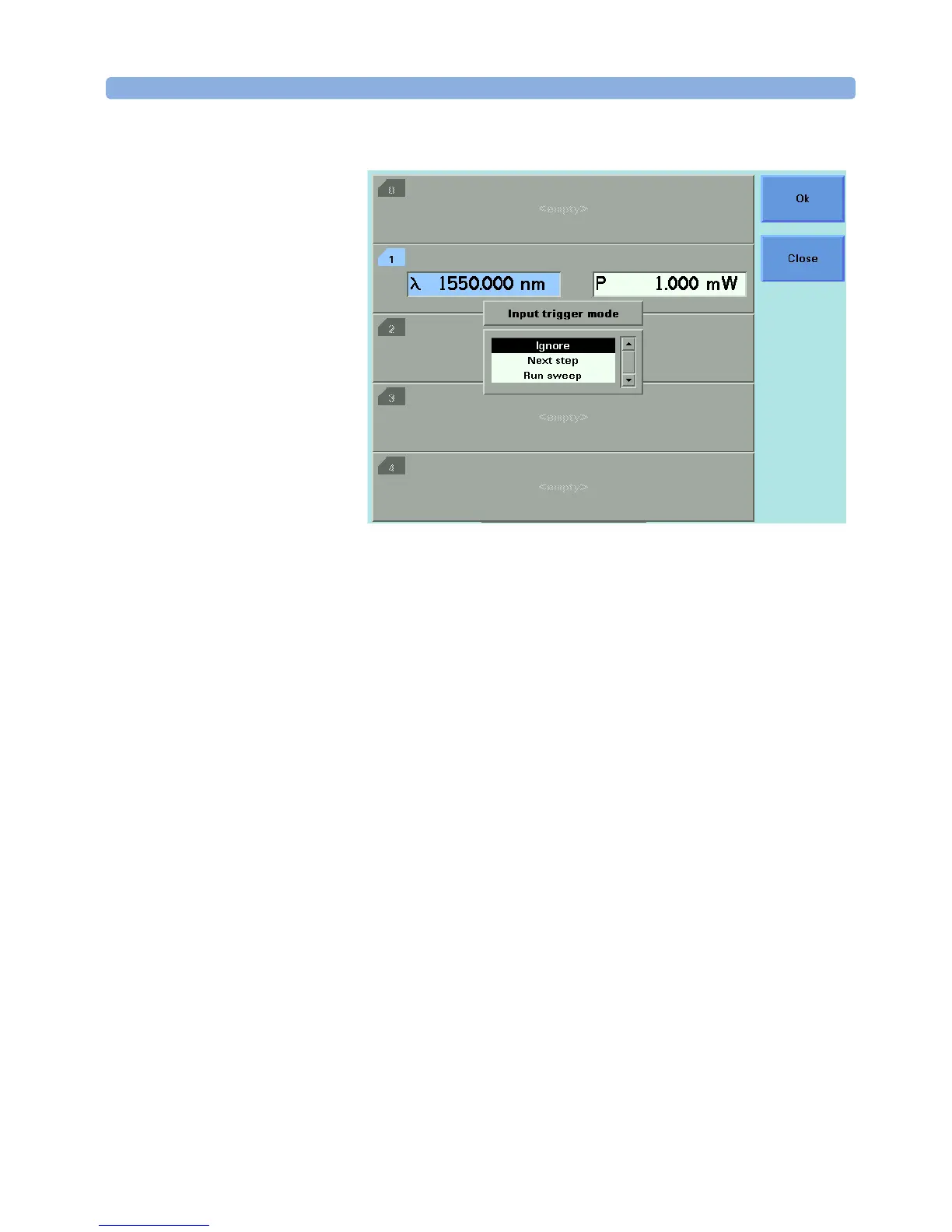

Figure 79 Input Trigger Mode
4 Move to one of the following, by using the cursor key:
• <Ignore>, input triggers are ignored.
•<Next Step>, an input trigger will cause the next step of a stepped sweep to be
performed.
•<Run Sweep>, an input trigger will start a single sweep cycle.
5 Press Enter.
You can generate input triggers in any of the following ways:
• applying a trigger to the Input Trigger Connector on the rear panel of your
instrument,
•setting <Trigger Configuration> to <Loopback> so that an output trigger
automatically generates an input trigger, or
• using the
:TRIGger
GPIB command, see your mainframe’s Programming Guide.
