Chapter 1 General Information
Installation
22
Rack Mounting
The power supply can be mounted in a standard 19-inch rack cabinet using one of
three optional kits available. A rack-mounting kit for a single instrument is available
as Option 1CM (P/N 5063-9243). Installation instructions and hardware are included
with each rack-mounting kit. Any Agilent System II instrument of the same size can
be rack-mounted beside the Agilent E3631A power supply.

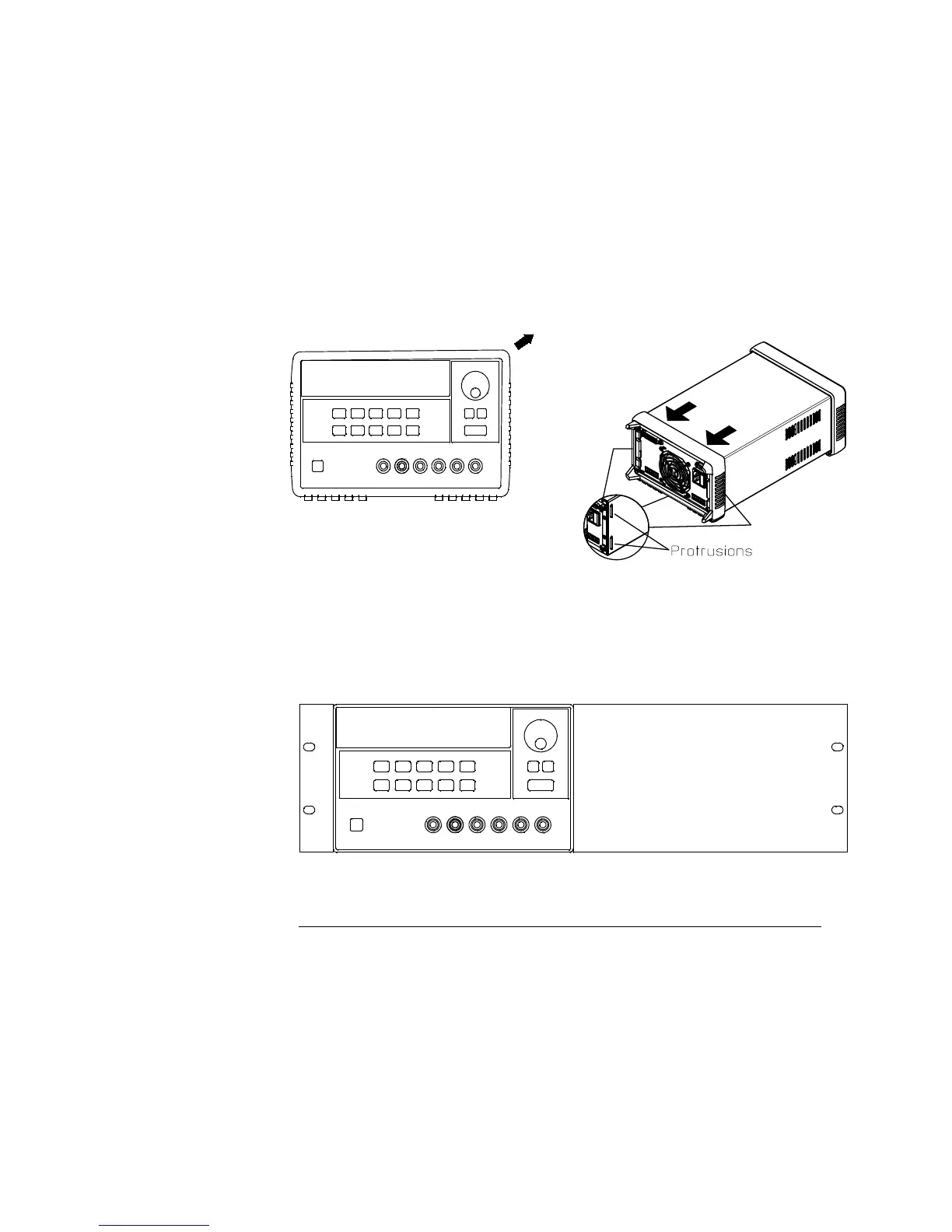

Remove the front and rear bumpers before rack-mounting the power
supply.
Front Rear (bottom view)
To remove the rear bumper, pull the bumper off from the top as there are
protrusions on the sides and bottom of the cover.
To rack mount a single instrument, order adapter kit 5063-9243.
