Chapter 7 Tutorial
Output Characteristics
145
7
Output Characteristics
An ideal constant-voltage power supply would have a zero output impedance
at all frequencies. Thus, as shown in Figure 7-3, the voltage would remain perfectly
constant in spite of any changes in output current demanded by the load.

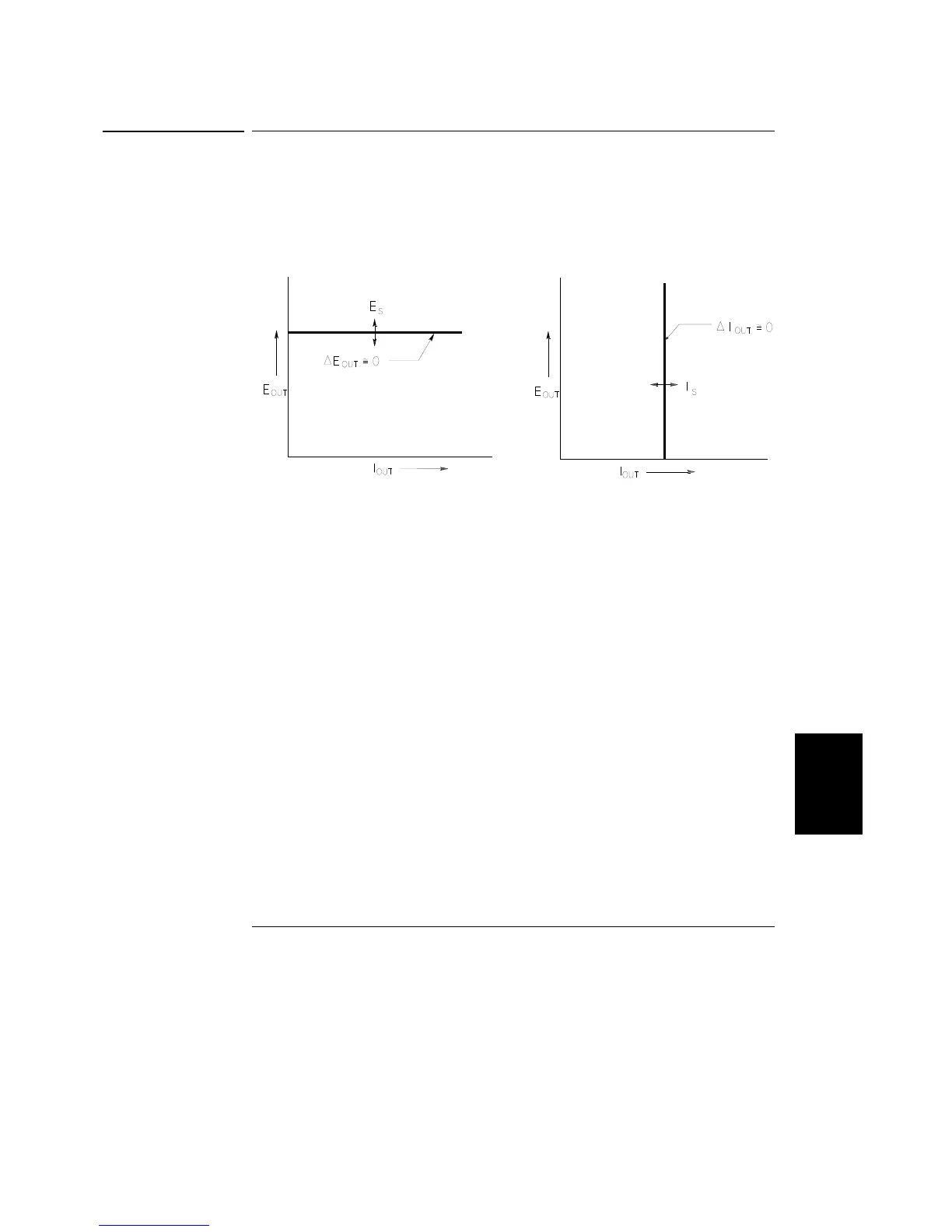

Figure 7-3. Ideal Constant Voltage Figure 7-4. Ideal Constant Current
Power Supply Power Supply
The ideal constant-current power supply exhibits an infinite output impedance at all
frequencies. Thus as Figure 7-4 indicates, the ideal constant-current power supply
would accommodate a load resistance change by altering its output voltage by just
the amount necessary to maintain its output current at a constant value.
Each of the three Agilent E3631A power supply outputs can operate in either constant-
voltage (CV) mode or constant-current (CC) mode. Under certain fault conditions,
the power supply can not operate in either CV or CC mode and becomes
unregulated.
