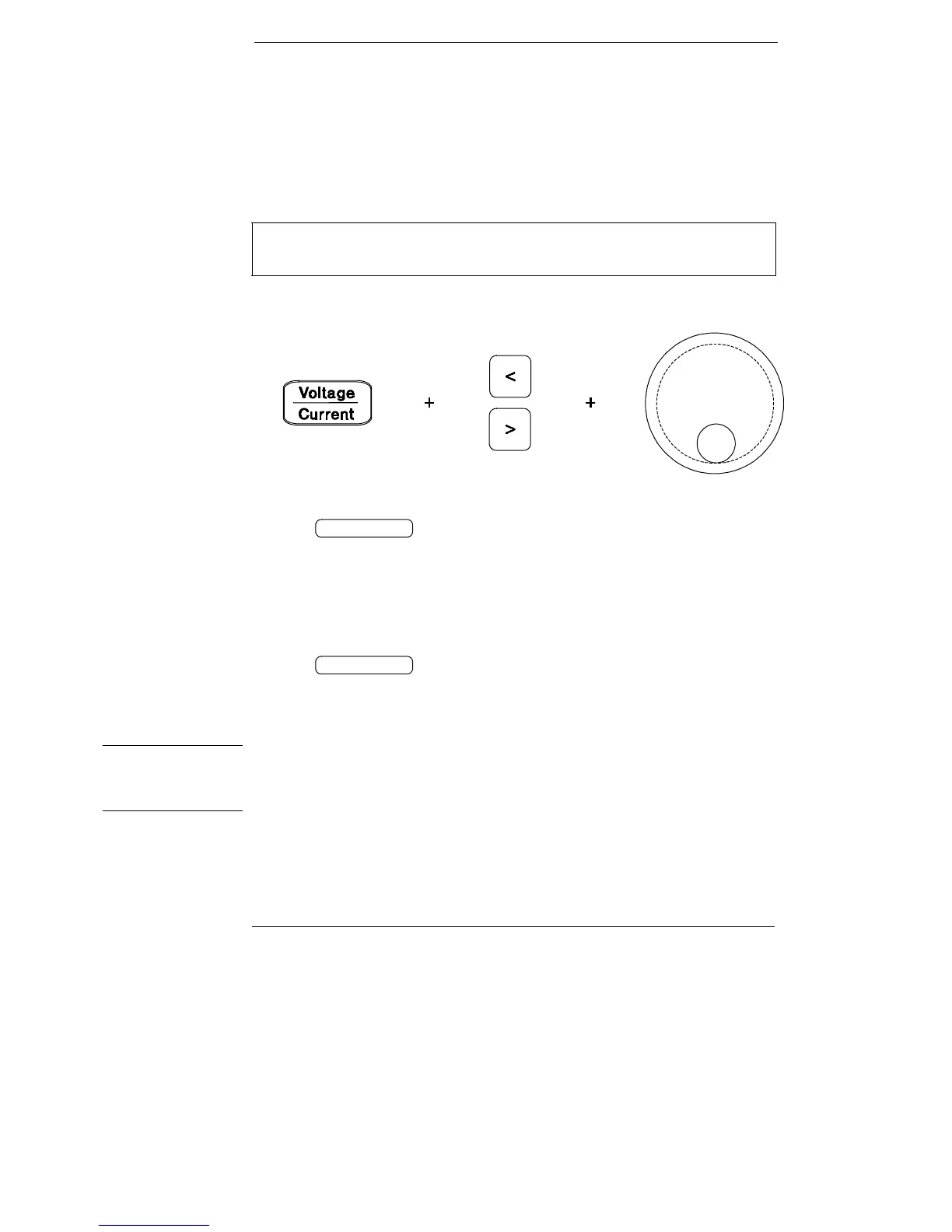

Front-Panel Voltage and Current Limit Settings
You can set the voltage and current limit values from the front panel
using the following method.
1
Press the key after turning on the power supply.
2 Set the knob to the voltage control mode or current control mode using the
voltage/current adjust selection key.
3 Move the blinking digit to the appropriate position using the resolution selection keys.
4 Change the blinking digit to the desired value using the control knob.
5 Press the key to enable the output. After about 5 seconds, the
display will go to the output monitor mode automatically to display the voltage
and current at the output.
Note All front panel keys and controls can be disabled with remote interface commands.
The Agilent E3631A must be in “Local” mode for the front panel keys and controls
to function.
Use the voltage/current adjust selection key, the resolution selection keys, and
the control knob to change the monitoring or limiting value of voltage or current
.
