GPRS Mobile Measurements

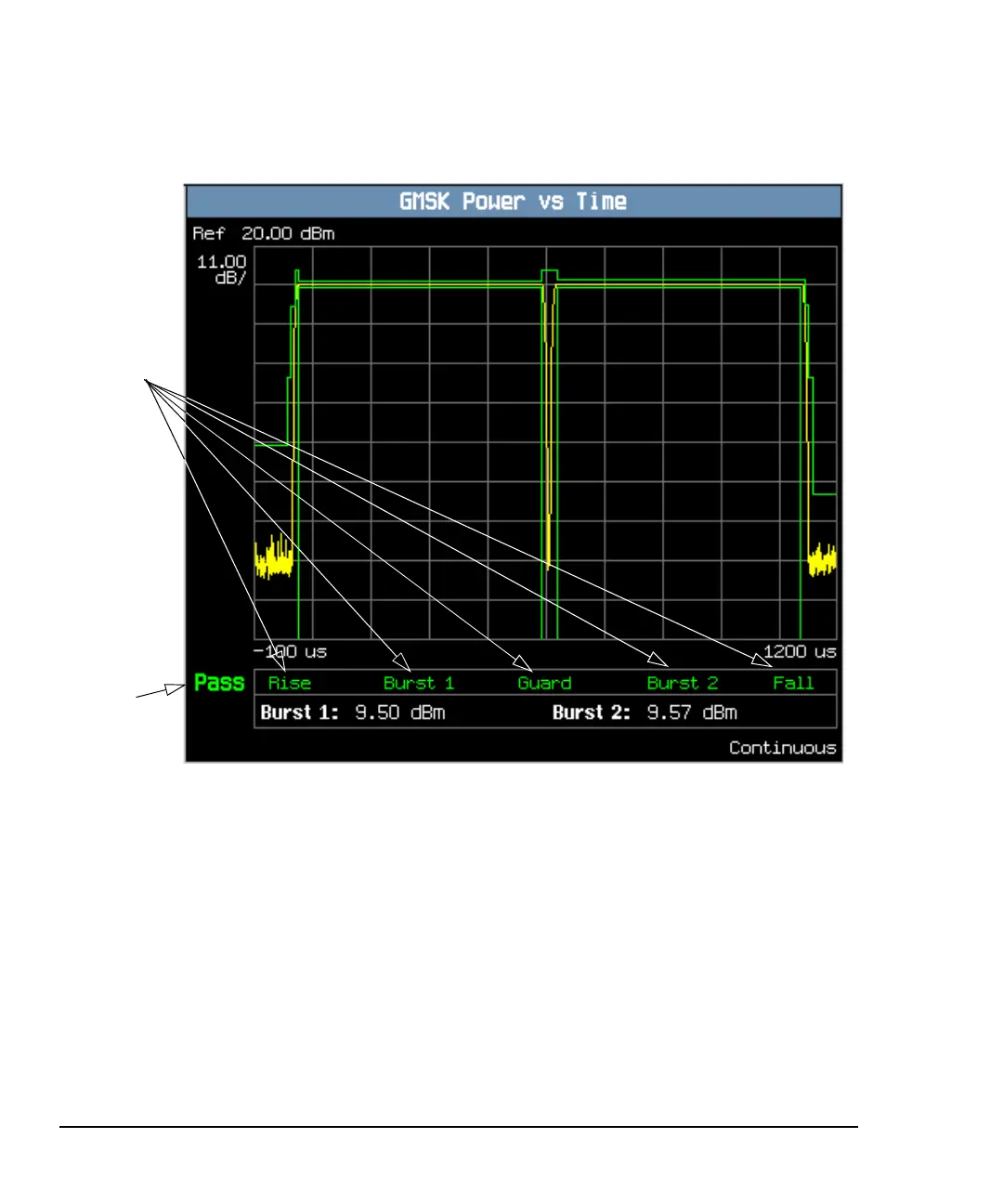

A typical full graph view of two adjacent uplink bursts is shown above.
Two types of pass/fail results are provided:
• An overall measurement pass/fail indicator is positioned in the bottom left
corner of the display:
— The text “Pass” is shown in a green-colored font if the measurement has
passed the entire mask.
— The text “Fail” is shown in a red-colored font if the measurement has failed
any part of the mask.
Overall
Pass/Fail
indicator
Pass/Fail
indicators
for each
section of
the uplink
bursts
