GPRS Mobile Measurements
Measuring Phase and Frequency Error
1. Connect the mobile.
2. Turn the mobile on and wait for Attached in the Active Cell: field.
Note: For mobiles that don’t perform a GPRS attach automatically, set the mobile
to data mode.
3. Press the Start Data Connection (
F3) key and watch for the Active Cell:
field changing to Transferring.
4. Press the
Measurement selection key.
5. Select the Phase & Frequency Error measurement.
6. Press the Phase & Freq. Setup (
F1) key.
7. Set the measurement parameters as needed for your measurement situation,
including:
Measurement Timeout = 10 s

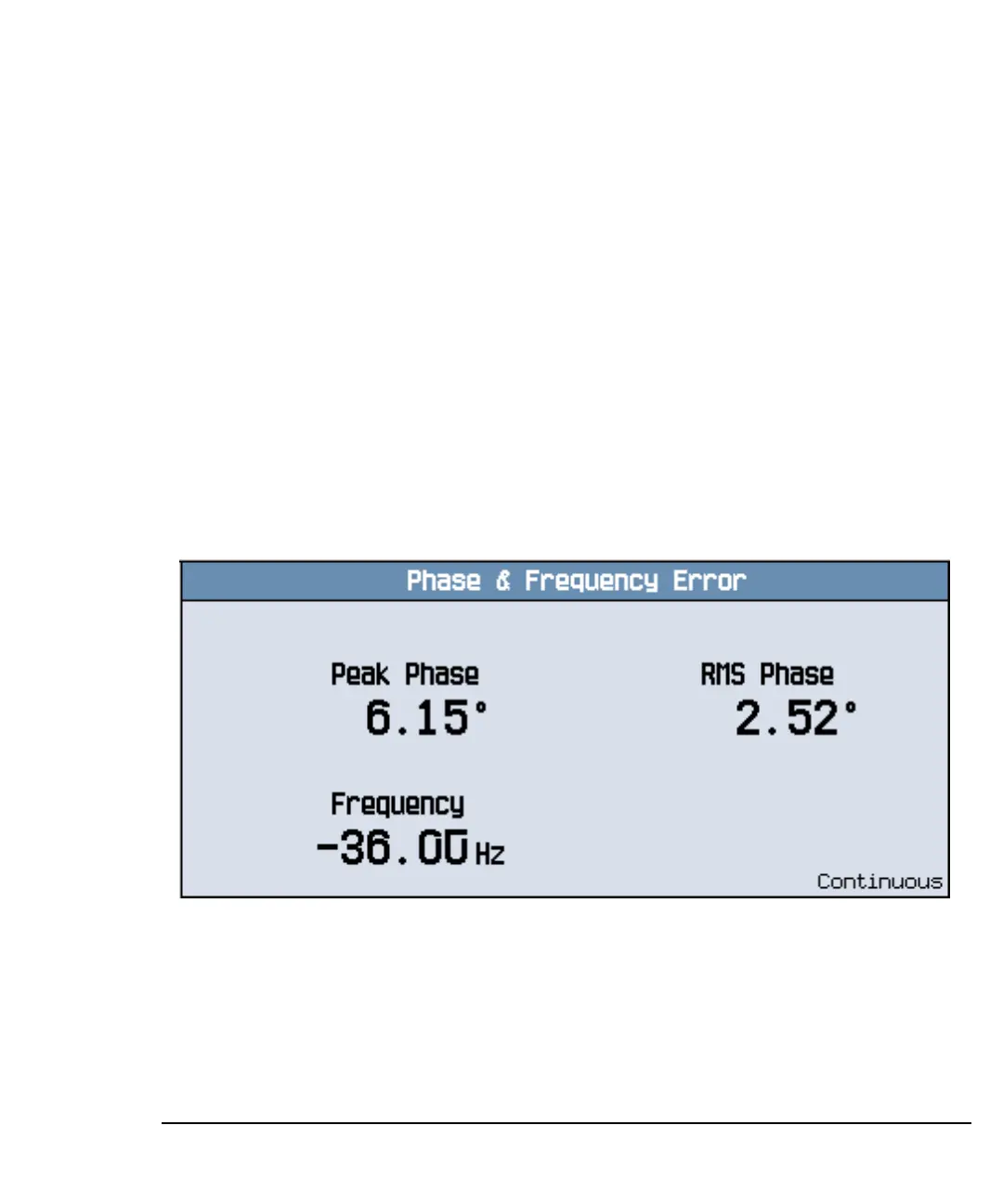

A typical phase and frequency error measurement result is shown above.
8. Press the Change View (
F2) key.
