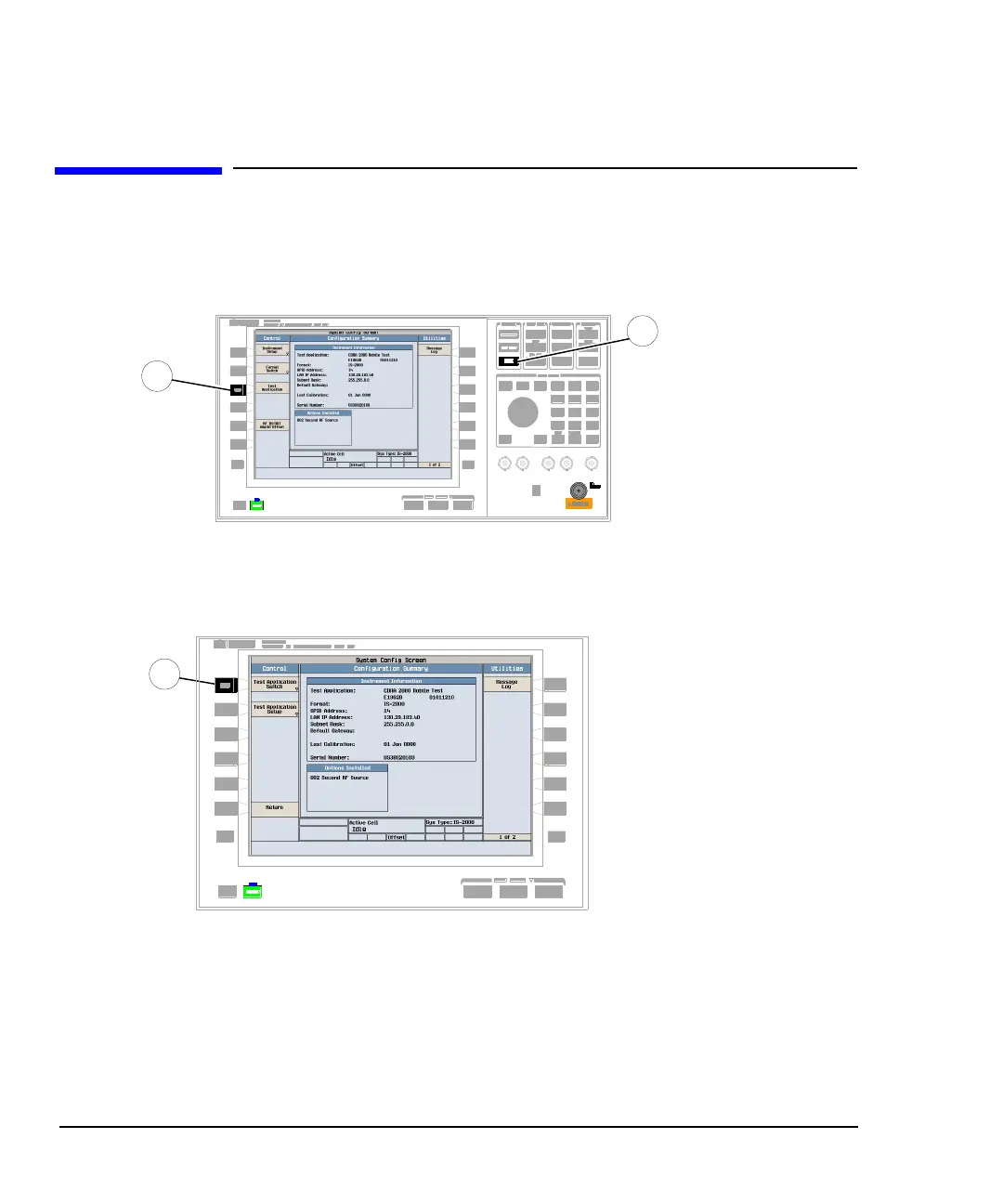

How Do Switch Test Applications?

A. Choose a test application.

1. Press the SYSTEM CONFIG key.

2. Press the Test Application (

F3) key.

3. Press the Test Application Switch (

F1) key, and wait for the Test Application,

Revision, License menu to appear. There is a slight pause before the menu is

displayed.

Table of Contents15
AMPS/136 Mobile Test Application21
How Do I Make Measurements on a Mobile22
Establish a Call22
Select Measurements23
How Do I Change Measurement Setup24
Select a Measurement24
Set up the Measurement24
How Do I Turn off a Measurement26
How Do I Change Call Parameters27
How Do I Change Cell Parameters28
How Do I Change the MS TX Level29
Change the Digital MS TX Level Immediately29
Change the MS TX Level During a Handoff30
How Do I Perform a Handoff31
How Do I Configure the Test Set for My Test System32
Configure Instrument Information and Setup32
Set Amplitude Offsets33
Check the Message Log34
How Do I End a Call35
AMPS/136 Mobile Measurements36
Measuring Digital Transmit Power37
Measuring Modulation Accuracy38
Measuring Adjacent Channel Power39
Measuring Bit Error Ratio40
Measuring IQ Tuning41
Measuring Analog Transmit Power43
Measuring Frequency Stability44
Measuring Frequency Modulation45
Cdma2000 Mobile Test Application47
How Do I Make Measurements on a Mobile Station48
Establish a Call48
Select Measurements48
How Do I Change the Measurement Setup49
Select a Measurement49
Set up the Measurement50
How Do I Turn off a Measurement51
How Do I Set up a Call52
How Do I Set up an IS-2000 Call52
How Do I Set up an IS-95 Call54
How Do I Change Call Parameters56
How Do I Change Cell Information57
Set Cell Parameters57
Set Access Parameters59
Set Registration Parameters61
How Do I Change Code Channel Levels63
How Do I Perform a Handoff64
How Do I Configure the Test Set for My Test System65
Configure Instrument Information and Setup65
Set Amplitude Offsets66
Check Message Log67
How Do I End a Call68
Cdma2000 Measurement Procedures69
Measuring Waveform Quality70
Measuring Handoff Waveform Quality71
Measuring Digital Average Power72
Measuring Channel Power73
Measuring Access Probe Power74
Measuring Frame Error Rate (FER)76
Measuring TDSO (Test Data Service Option) Frame Error Rate (FER)77
Measuring Code Domain Power and Code Domain Power + Noise79
Measuring Code Channel Time/Phase Error82
Measuring Gated Power83
Measuring TX Spurious Emissions84
Related Topics85
GPRS Mobile Test Application87
How Do I Make Measurements on a Mobile88
Establish a Data Connection88
Select Measurements89
How Do I Change Measurement Setup90
Select a Measurement90
Set up the Measurement91
How Do I Turn off a Measurement92
How Do I Change Call Parameters93
How Do I Change Cell Parameters94
Select the Cell Parameters Menu94
Set a Cell Parameter95
How Do I Perform a Handover96
How Do I Change the MS TX Level97
Change the MS TX Level Immediately97
Change the MS TX Level During a Handover98
How Do I Configure the Test Set for My Test System99
Configure Instrument Information and Setup99
Set Amplitude Offsets100
Check the Message Log101
How Do I End the Data Connection102
GPRS Mobile Measurements103
Measuring Transmit Power104
Measuring Power Versus Time105
Measuring Phase and Frequency Error113
Measuring Output RF Spectrum116
Measuring Bit Error121
GSM Mobile Test Application123
How Do I Make Measurements on a Mobile124
Establish a Call124
Select Measurements125
How Do I Change a Measurement's Setup126
Select a Measurement126
Set up the Measurement127
How Do I Turn off a Measurement128
How Do I Change Call Parameters129
How Do I Change Cell Parameters130
Select the Cell Parameters Menu130
Set a Cell Parameter131
How Do I Configure the Test Set for My Test System132
Configure Instrument Information and Setup132
Set Amplitude Offsets133
Check the Message Log134
How Do I End a Call135
GSM Mobile Measurements136
Measuring Transmit Power137
Measuring Power Versus Time138
Power Versus Time Graph Menus143
Measuring Phase and Frequency Error144
Phase and Frequency Error Graph Menus147
Measuring Fast Bit Error148
Measuring Bit Error149
Measuring Output RF Spectrum150
Output RF Spectrum Graph Menus154
Measuring IQ Tuning155
IQ Tuning Graph Menus158
E1985A GSM_AMPS/136_GPRS Mobile Test Application (Fast Switching)159
How Do I Switch Formats160
Choose a Format160
Switch Formats161
Switching Test Applications163
How Do Switch Test Applications164
Choose a Test Application164
Switch Test Applications165
