3 Installing the Autosampler
Installing the Thermostatted Autosampler
6 Place the air channel adapter into the autosampler tray base. Make sure the
adapter is fully pressed down. This assures that the cold airstream from the
Thermostat is correctly guided to the tray area of the Autosampler.

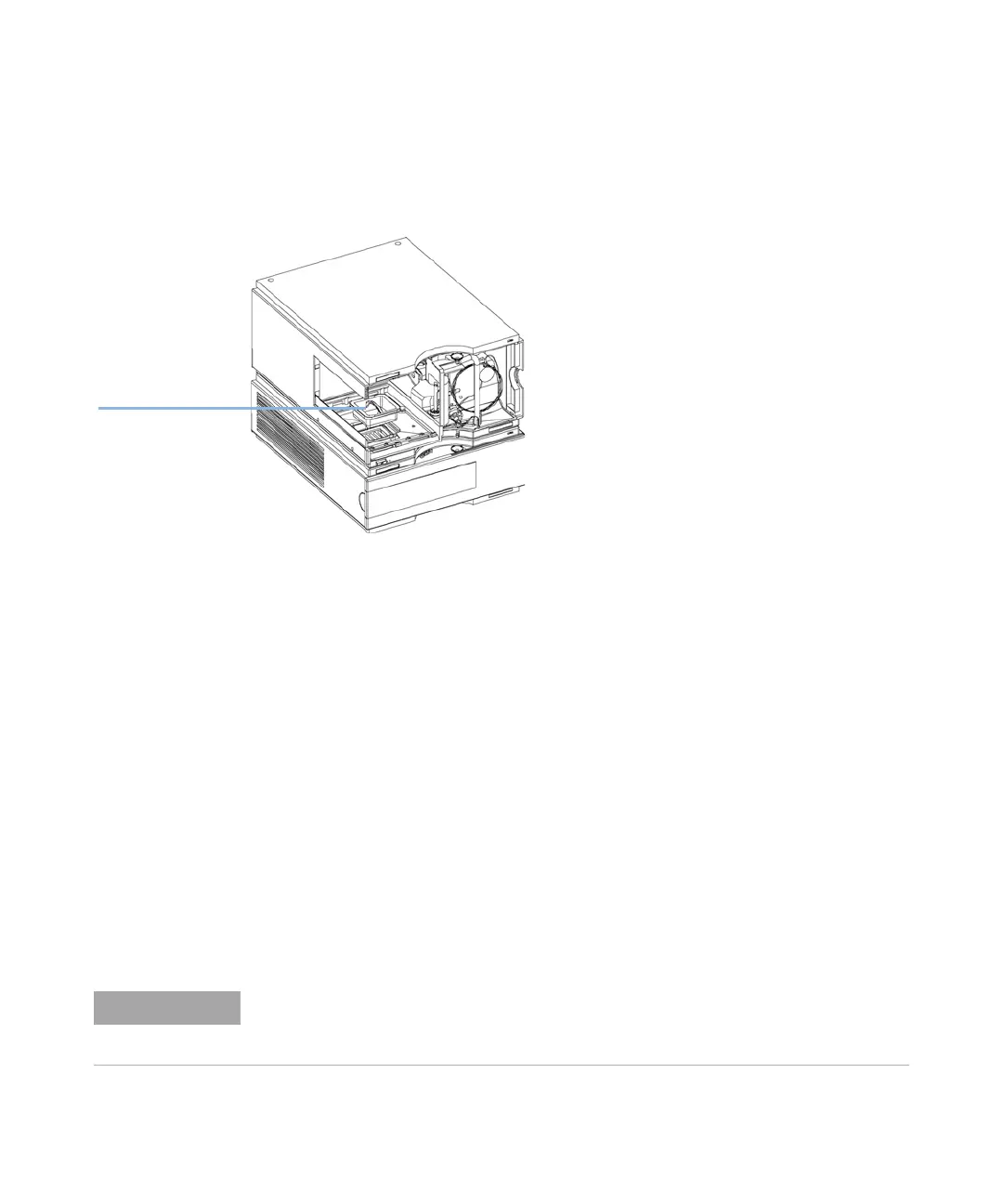

Figure 16 Air channel adapter
7 Re-install the tray
8 Ensure the power switch on the front of the Autosampler is OFF and the
power cables are disconnected.
9 Connect the cable between the Autosampler and the Thermostat, see
Figure 17 on page 47.
10 Connect the power cables to the power connectors.
11 Connect the CAN cable to the other Agilent 1200 Infinity modules.
12 If an Agilent ChemStation is the controller, connect either
• The GPIB cable to the detector
• The LAN connector to the LAN interface
13 Connect the APG remote cable (optional) for non Agilent 1200 Infinity
instruments.
14 Turn ON power by pushing the button at the lower left hand side of the
sampler.
6^gX]VccZaVYVeiZg
NOTE
The sampler is turned ON when the line power switch is pressed and the green indicator
lamp is illuminated. The detector is turned OFF when the line power switch is protruding
and the green light is OFF.
