G1369C LAN Interface User Manual 11

Introduction - Around your LAN Interface Card 1

Introduction to the LAN Interface Card

LAN Control Configurations

The basic LAN configurations are shown below.

Local Configuration Using Cross-over Cable

The simplest way is a configuration with a single system.

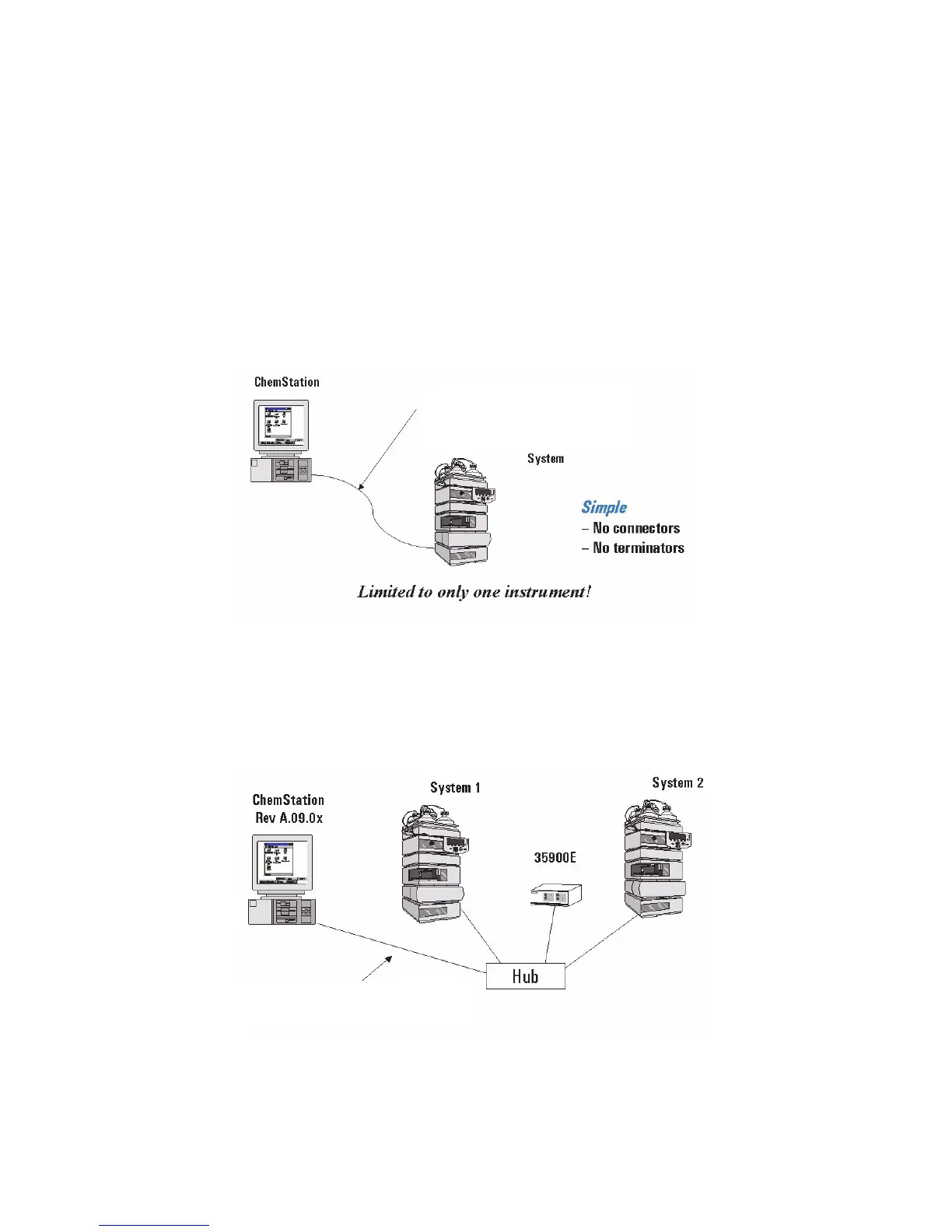

Figure 2 Local configuration using cross-over cable

LAN Using a HUB and Twisted Pair Cables

More complicated setup than direct cross- over connection.

Figure 3 LAN configuration using a HUB and twisted pair cables

Patch-cable Cross-over

Shielded 3 m (5023-0203)

Patch-cable Twisted pair Shielded

7 m (5023-0202) for all cables
