G1369C LAN Interface User Manual 21
Getting Started 2
LAN Interface Card Configuration
Configuration Switches
The configuration switches are mounted on the card, see Figure 10.

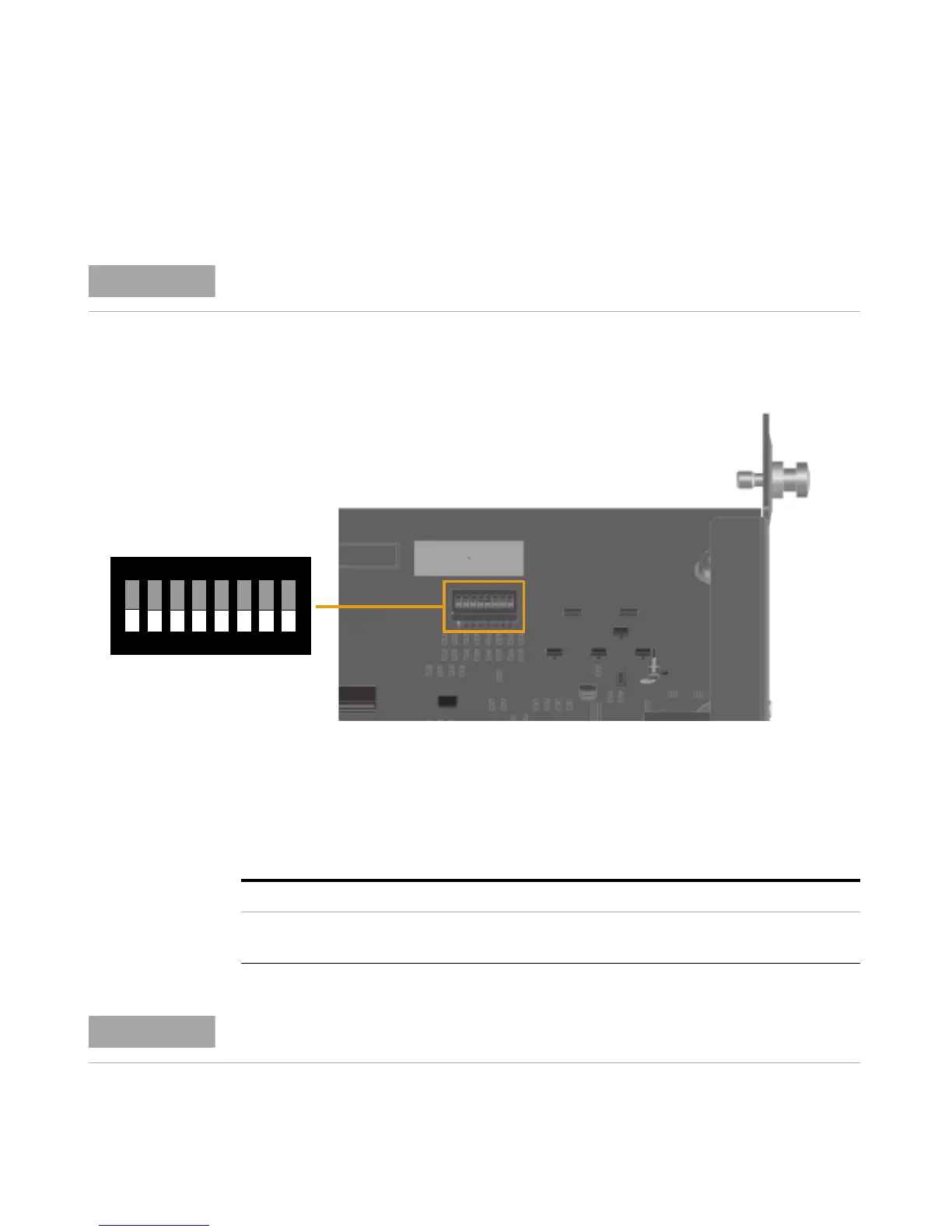

Figure 10 Location of Configuration Switches
The LAN Interface Card is shipped with all switches set to OFF, as shown
above.
The board is sensitive for electrostatic discharge (ESD). See CAUTION on page 17.
Table 4 Factory Default Settings
Initialization (‘Init’) Mode Bootp, for details see page 22
Link Configuration speed and duplex mode determined by auto-negotiation, for
details see page 27
Compared to the G1369A LAN Card, SW 7 and SW 8 must be always in OFF position on the
G1369B/B LAN Card, otherwise the selected modes are not working.
