22 G1369C LAN Interface User Manual
2Getting Started
LAN Interface Card Configuration
Initialization Mode Selection
The following initialization (init) modes are selectable:
Bootp
When the initialization mode “Bootp” is selected, the card tries to
download the parameters from a Bootp Server. The parameters obtained
become the active parameters immediately. They are not stored to the
non- volatile memory of the card. Therefore, the parameters are lost with
the next power cycle of the card.

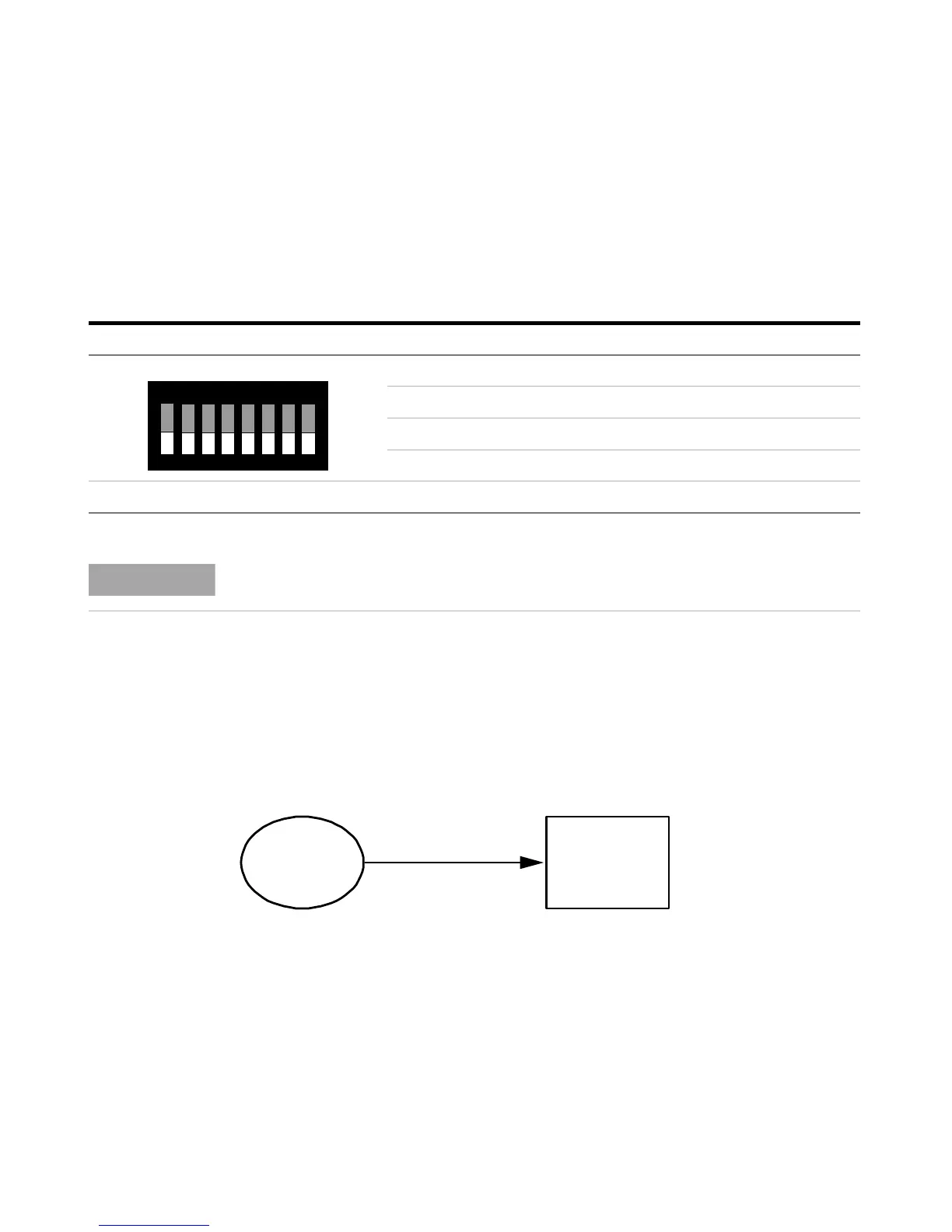

Figure 11 Bootp (Principle)
Table 5 Initialization Mode Switches
SW 4SW 5SW 6SW 7SW 8Init Mode
OFF OFF OFF OFF OFF Bootp
OFF OFF ON OFF OFF Bootp & Store
OFF ON OFF OFF OFF Using Stored
OFF ON ON OFF OFF Using Default
ON OFF OFF OFF OFF DHCP
1
2
345678
ON
NOTE
Compared to the G1369A LAN Card, SW 7 and SW 8 must be always in OFF position on the
G1369B/C LAN Card, otherwise the selected modes are not working.
Bootp
Server
Active
Parameter
