12 G1369C LAN Interface User Manual
1 Introduction - Around your LAN Interface Card
Introduction to the LAN Interface Card
LAN With Existing Customer Network
Use MDI/MDI- X port or “Cascade” Port with standard twisted pair cable
to connect Hub to a “parent” hub. IP Addresses and other TCP/IP
configuration information MUST be provided by the customer’s IT
organization. The customer LAN must be able to handle instrument data
and must have sufficient bandwidth for instrument acquisition (no
overnight backups over the LAN).

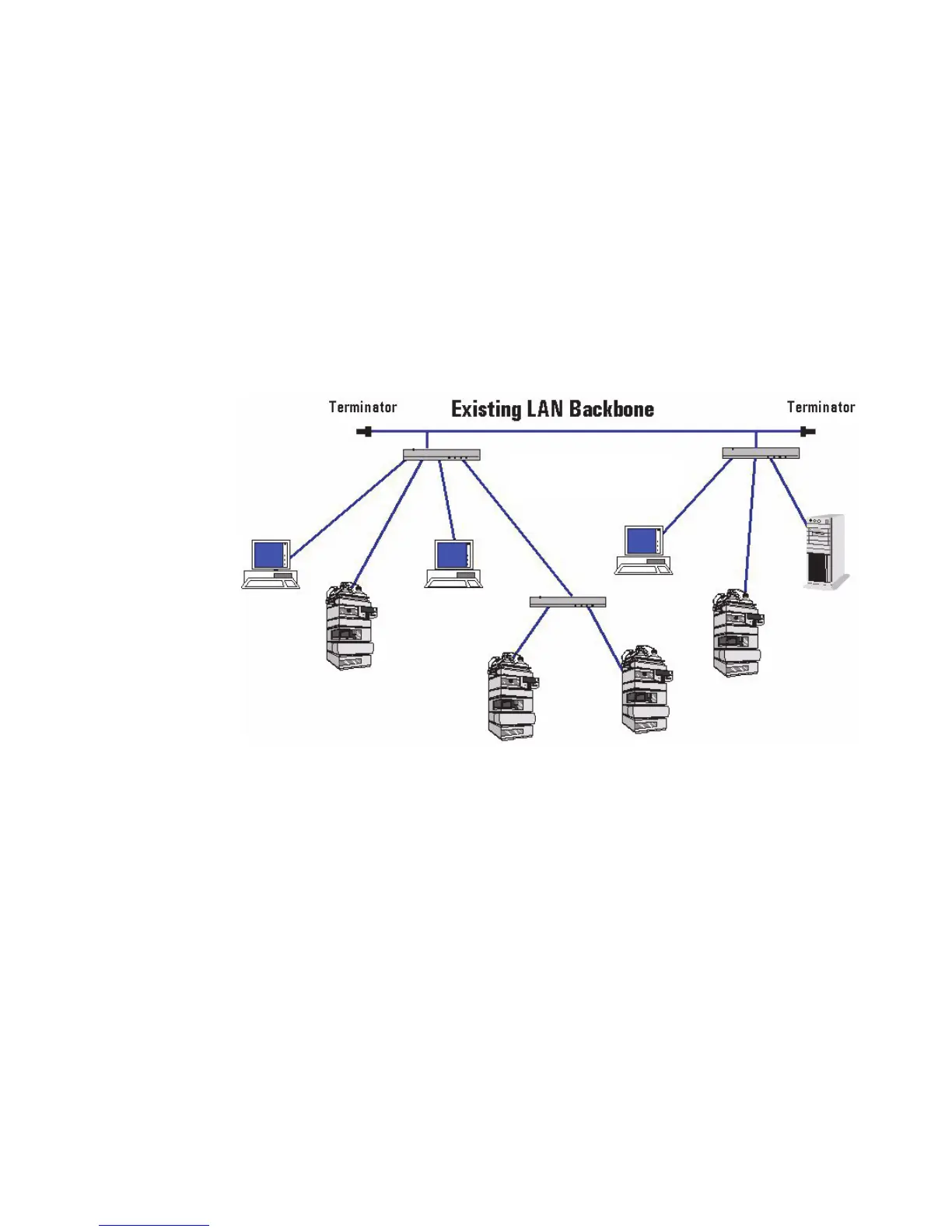

Figure 4 LAN configuration with existing customer network
