Installing and Cabling the LAN Interface Card
What You Have To Do First
1 Remove the LAN Interface Card from it’s packaging.

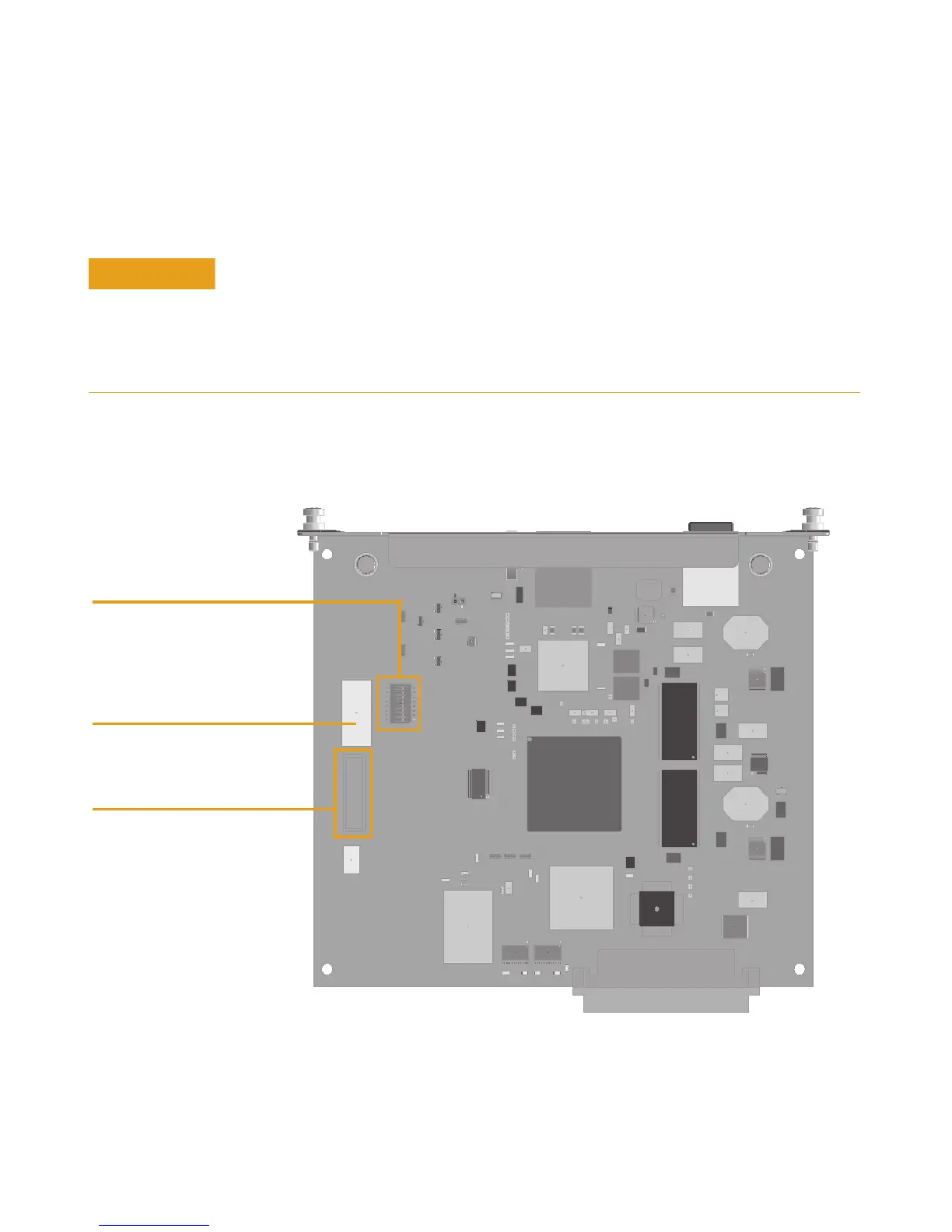

Figure 6 Board Layout G1369C
CAUTION
Electronic boards and components are sensitive to electrostatic discharge (ESD).
ESD can damage electronic boards and components.
• Be sure to hold the board by the edges and do not touch the electrical
components.Always use an ESD protection (for example, an ESD wrist strap) when
handling electronic boards and components.
Configuration switch,
see “Configuration
Switches” on
page 21
Board information
(manufacturing part
number, revision)
MAC label, see
Figure 7 on page 18
