LAN Interface Card Configuration
Link Configuration Selection
The LAN Interface Card supports 10 or 100 Mbps operation in full- or
half- duplex modes. In most cases, full- duplex is supported when the
connecting network device - such as a network switch or hub - supports
IEEE 802.3u auto- negotiation specifications.
When connecting to network devices that do not support auto- negotiation,
the LAN Interface Card will configure itself for 10- or 100- Mbps
half- duplex operation.
For example, when connected to a non- negotiating 10- Mbps hub, the LAN
Interface Card will be automatically set to operate at 10- Mbps half- duplex.
If the card is not able to connect to the network through auto- negotiation,
you can manually set the link operating mode using link configuration
switches on the card.

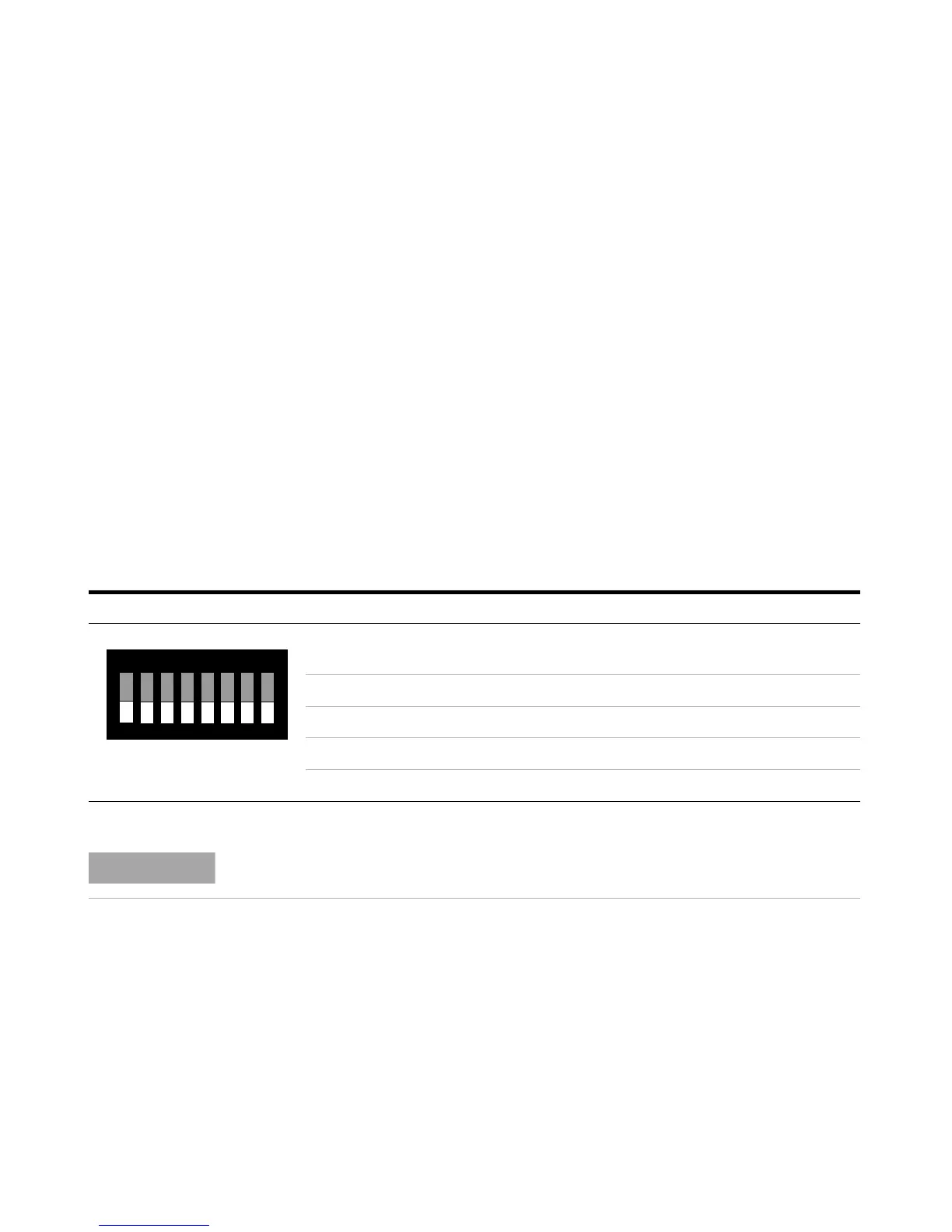

Table 7 Link Configuration Switches
SW 1 SW 2 SW 3 SW 7 SW 8 Link Configuration
OFF - - OFF OFF speed and duplex mode determined by
auto-negotiation
ON OFF OFF OFF OFF manually set to 10 Mbps, half-duplex
ON OFF ON OFF OFF manually set to 10 Mbps, full-duplex
ON ON OFF OFF OFF manually set to 100 Mbps, half-duplex
ON ON ON OFF OFF manually set to 100 Mbps, full-duplex
