18 G1369C LAN Interface User Manual
2Getting Started
Installing and Cabling the LAN Interface Card
2 Note the MAC (Media Access Control) address for further reference. The
MAC or hardware address of the LAN Interface Card is a world wide
unique identifier. No other network device will have the same hardware
address. The MAC address can be found on a label on the card (see
Figure 6 on page 17).

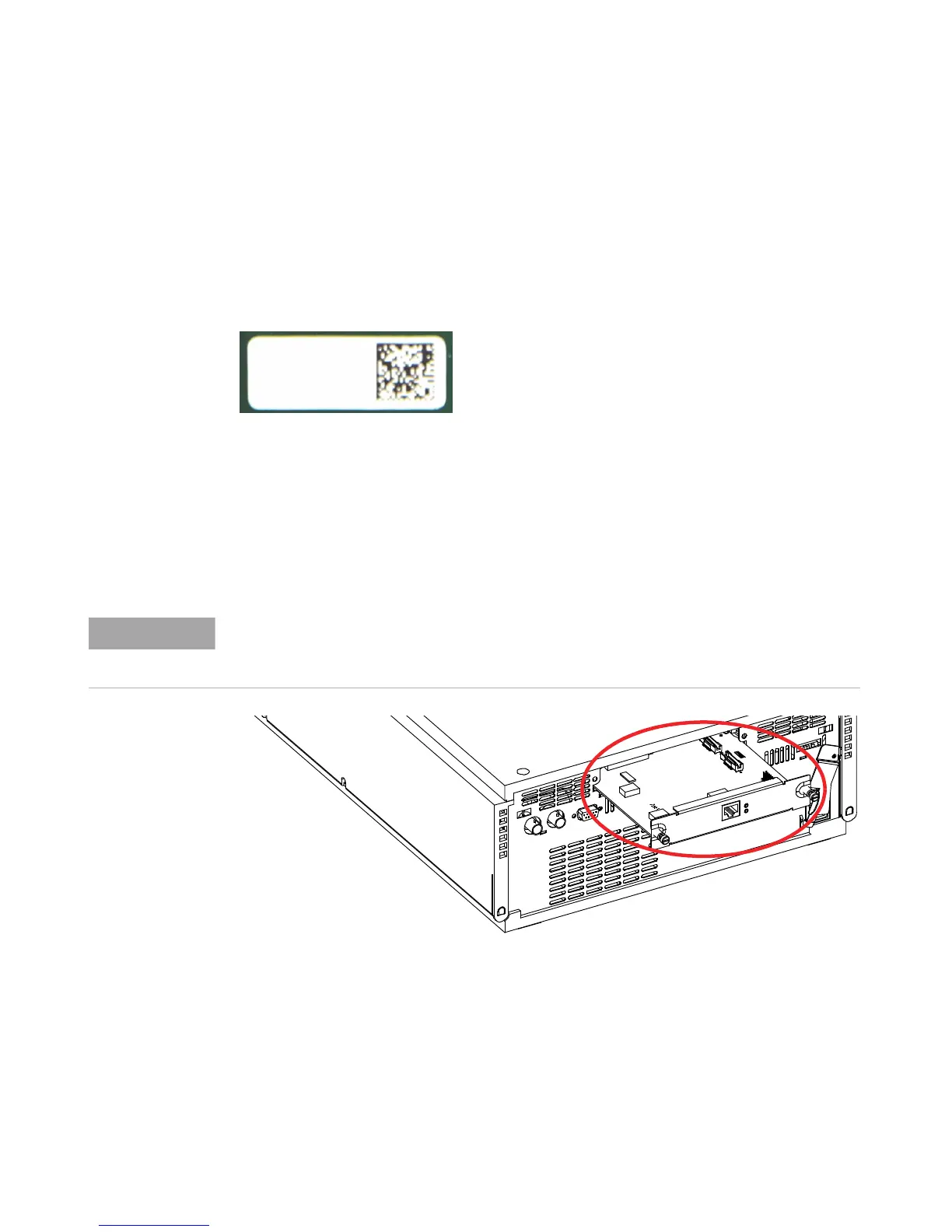

Figure 7 MAC-Label
3 Turn off instrument line power or remove the power cord before
installing the LAN Interface Card.
4 On your instrument, identify the option slot for the MIO accessory card.
5 Remove any blank cover plates and ensure that the slot is empty.
Figure 8 Location of LAN Interface Card (e.g. 1100/1200 series detector)
Part number of the LAN Interface Card, see page 56
Revision Code, Vendor, Year and Week of assembly
MAC address
Country of Origin
G1369-65810
BB ZZ 1103 MSS-A
MAC 0030D3177321
Made in Germany
If the module has the 1100 CAN modification board installed, it probably has a revision 1
mainboard and will not accept the LAN interface. Refer to “LAN Interface Card
Compatibility” on page 13
