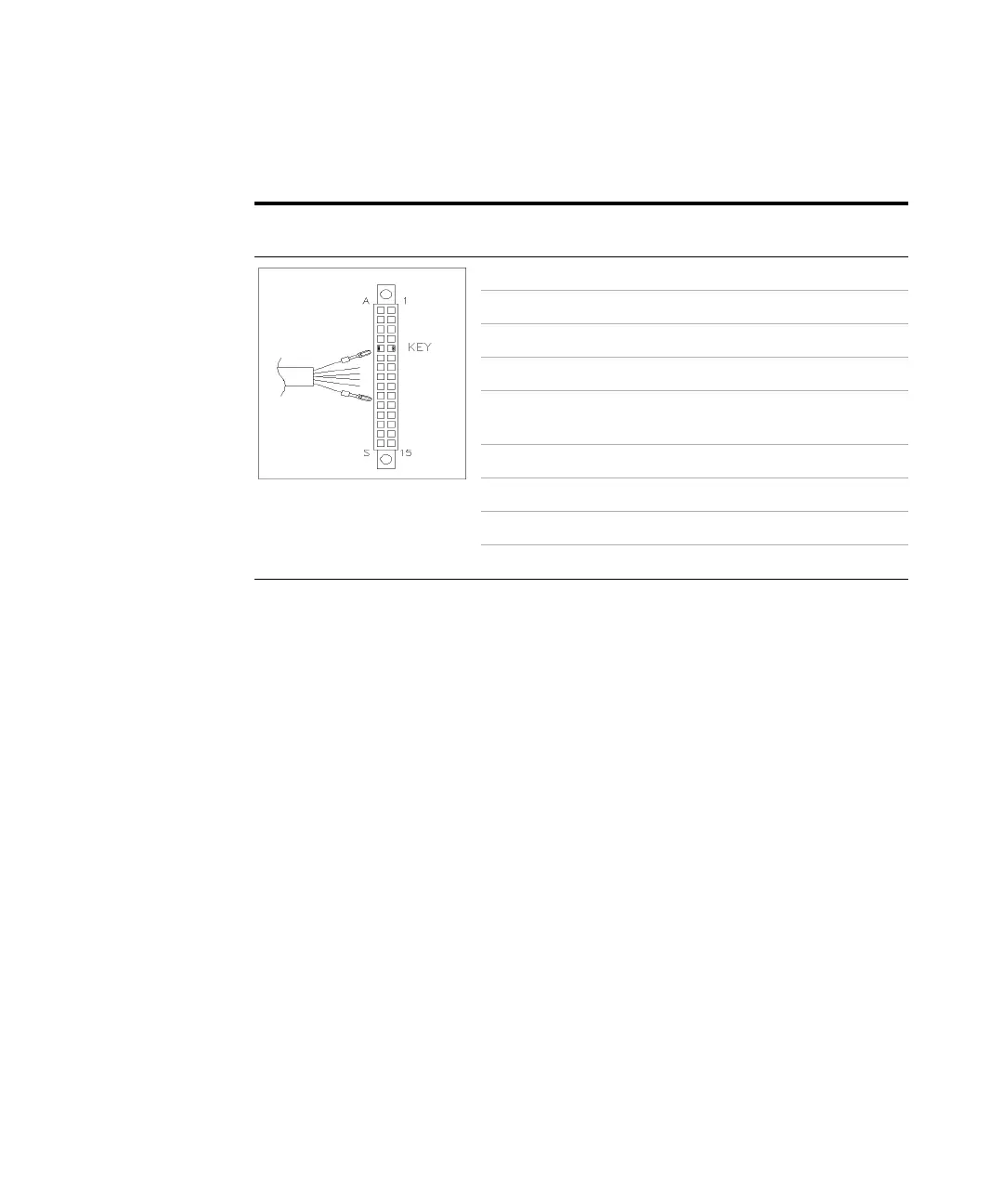

Identifying Cables
10
Remote Cables
Agilent Module to General Purpose
p/n 01046-60201 Wire Color Pin Agilent
module
Signal Name Active
(TTL)
White 1 Digital ground
Brown 2 Prepare run Low
Gray 3 Start Low
Blue 4 Shut down Low
Pink 5 Not
connected
Yellow 6 Power on High
Red 7 Ready High
Green 8 Stop Low
Black 9 Start request Low
