LAN Configuration
What You Have to Do First
What You Have to Do First
The module has an on- board LAN communication interface.
1 Note the MAC (Media Access Control) address for further reference. The
MAC or hardware address of the LAN interfaces is a world wide unique
identifier. No other network device will have the same hardware address.
The MAC address can be found on a label at the rear of the module
underneath the configuration switch (see Figure 23 on page 234).
Figure 22 MAC-Label
2 Connect the instrument's LAN interface (see Figure 23 on page 234) to
• the PC network card using a crossover network cable (point-to-point) or
• a hub or switch using a standard LAN cable.

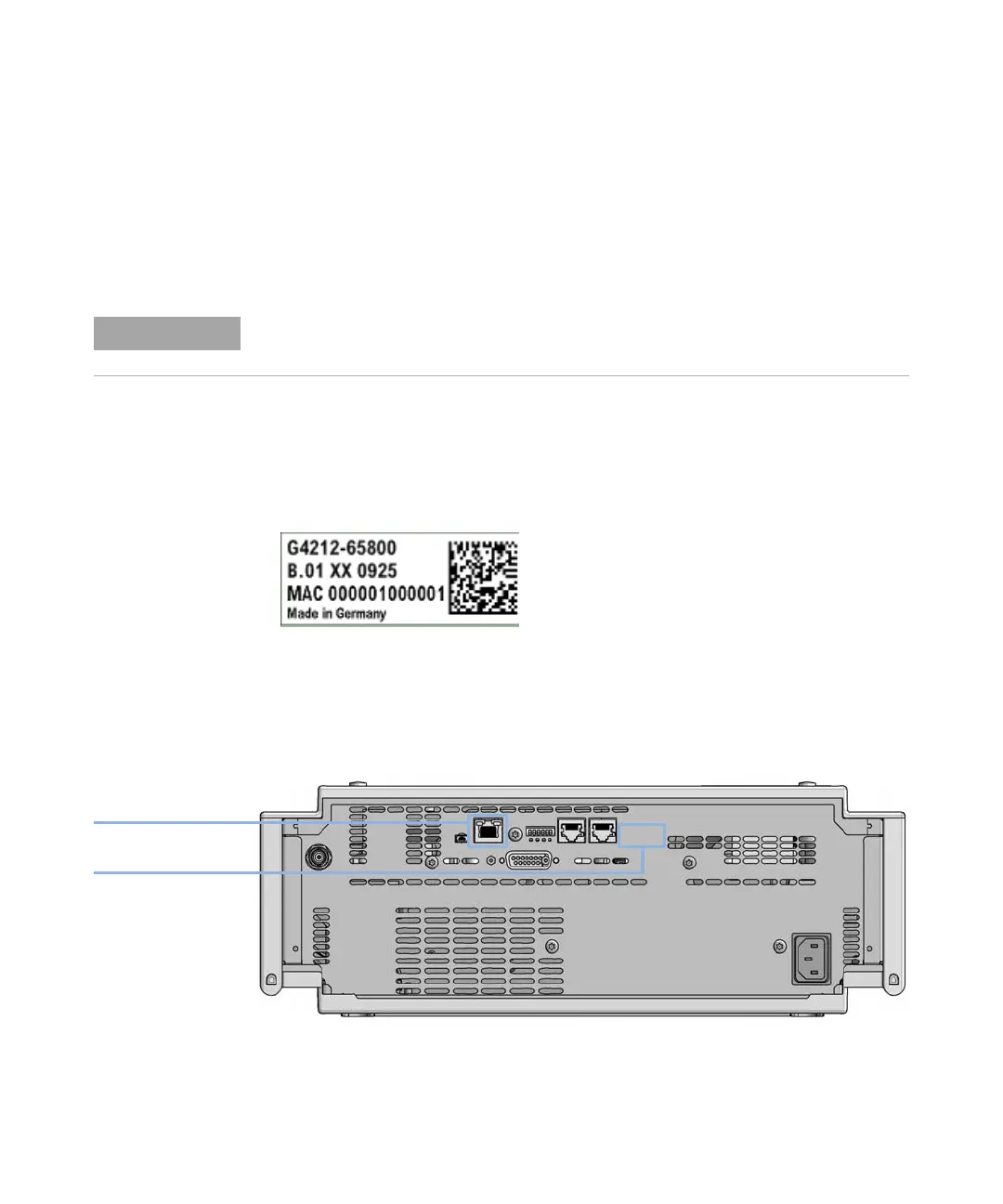

Figure 23 Location of LAN interfaces and MAC label
This chapter is generic and may show figures that differ from your module. The
functionality is the same.
3DUWQXPEHURIWKHGHWHFWRUPDLQERDUG
5HYLVLRQ&RGH9HQGRU<HDUDQG:HHNRIDVVHPEO\
0$&DGGUHVV
&RXQWU\RI2ULJLQ
/$1LQWHUIDFH
0$&ODEHO
