238 Agilent InfinityLab LC Series 1260 Infinity II FLD User Manual
11 Identifying Cables
Remote Cables
• 5188-8057 ERI to APG and RJ45 (Connector D_Subminiature 15 pin (ERI),
Connector D_Subminiature 9 pin (APG), Connector plug Cat5e (RJ45))
One end of these cables provides a Agilent Technologies APG (Analytical
Products Group) remote connector to be connected to Agilent modules. The
other end depends on the instrument to be connected to.

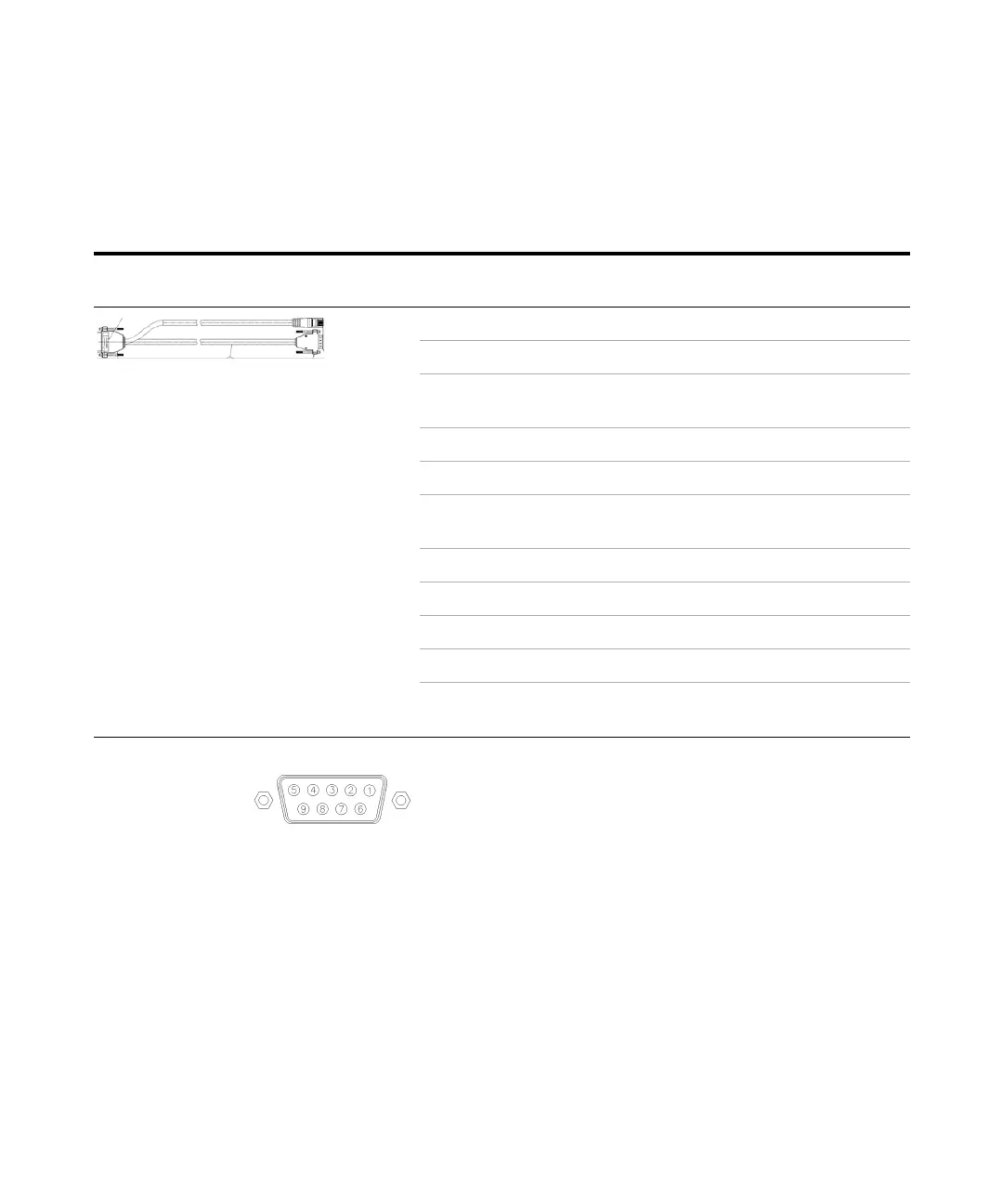

Table 29 5188-8057 ERI to APG and RJ45
p/n 5188-8057 Pin (ERI) Signal Pin (APG) Active
(TTL)
Pin (RJ45)
10 GND 1 5
1Start
Request
9High
2Stop8High
3Ready7High
4 Fraction
Trigger
5High4
5 Power on 6 High
6 Shut Down 4 High
7Start3High
8 Prepare 2 High
Ground Cable
Shielding
NC
