Instructions for Use
Preparation for Installation
MS120 Single Stage Rotary Vane Pumps User Manual / 87-900-150-01(B) 146/198

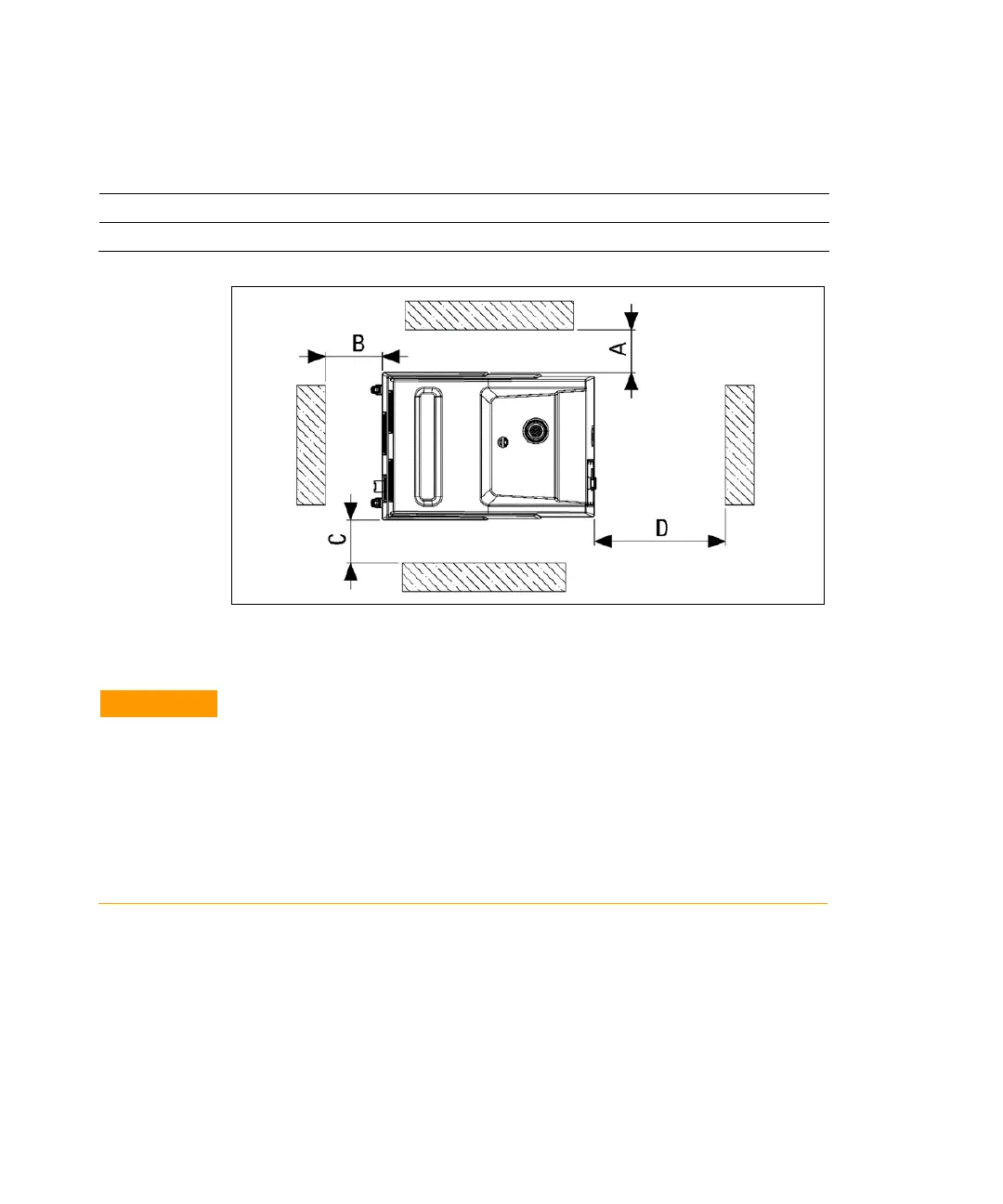

Tab. 2 Minimum distance
Quote A B C D
Dimension 150 mm 200 mm 150 mm 1500 mm
Figure 9
CAUTION!
The pump must be installed outside and must always be protected from the
weather.
Avoid warm air coming from the exhaust or the cooling fans causing discomfort
to the personnel.
Do not install the pump in a dusty area or where other materials may block or
cover the cooling surfaces quickly.
Connection to the machine
The connection to the chamber to be pumped down must be carried
out by means of pipes of the same diameter as the inlet port.
