How to connect the I/O port to an external cable

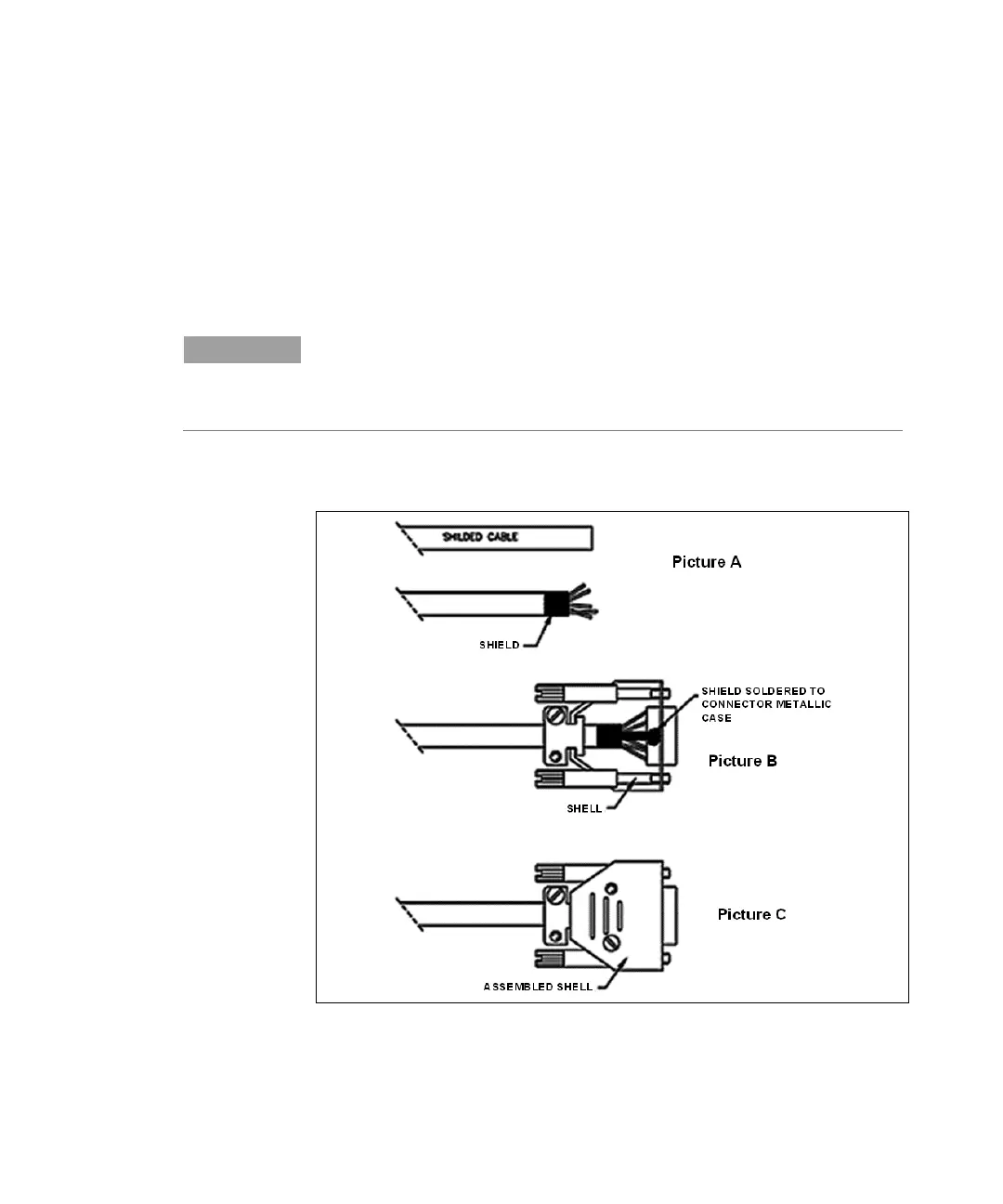

The following picture shows the right procedure to connect a cable to
the I/O port connector.
A shielded cable of 30 m maximum length has to be utilized for both
serial and I/O port connection.
NOTE
Take care to have a good contact (soldered) between the metallic connector
case and the external shield of the cable. Moreover, this connection has to be
assured at least on the controller side.
In this way, you will be sure to reduce the influence of the external
noise and to accomplish the EMC requests.
Figure 26
