Technical Information
User Interface
5
MS120 Single Stage Rotary Vane Pumps User Manual / 87-900-150-01(B) 184/198

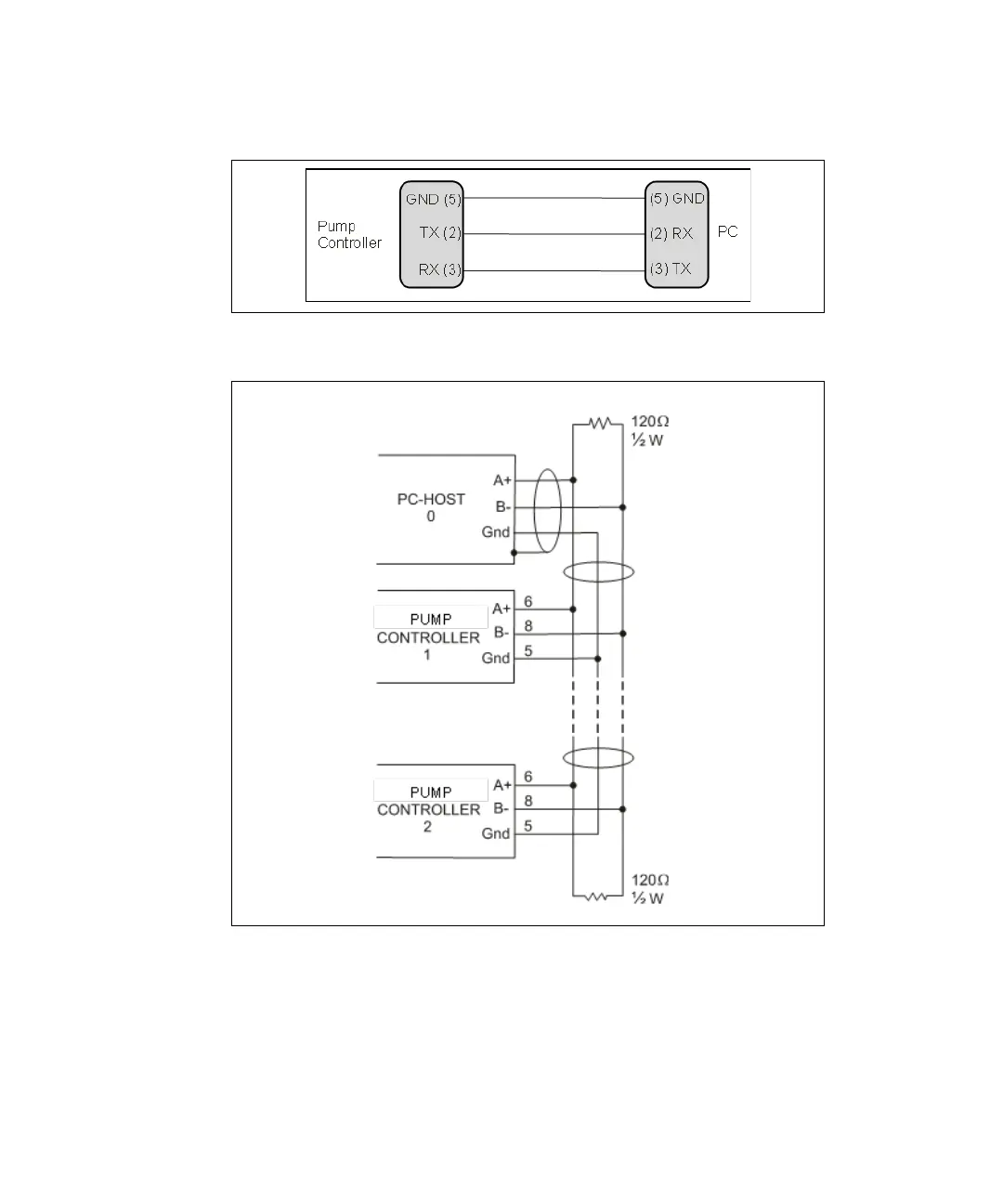

Figure 24
Figure 25
The communication port mating connector is supplied with the unit.
See the host computer's instruction manual for further details on
serial port connections.
