Instructions for Use
MS120 Single Stage Rotary Vane Pumps User Manual / 87-900-150-01(B) 158/198

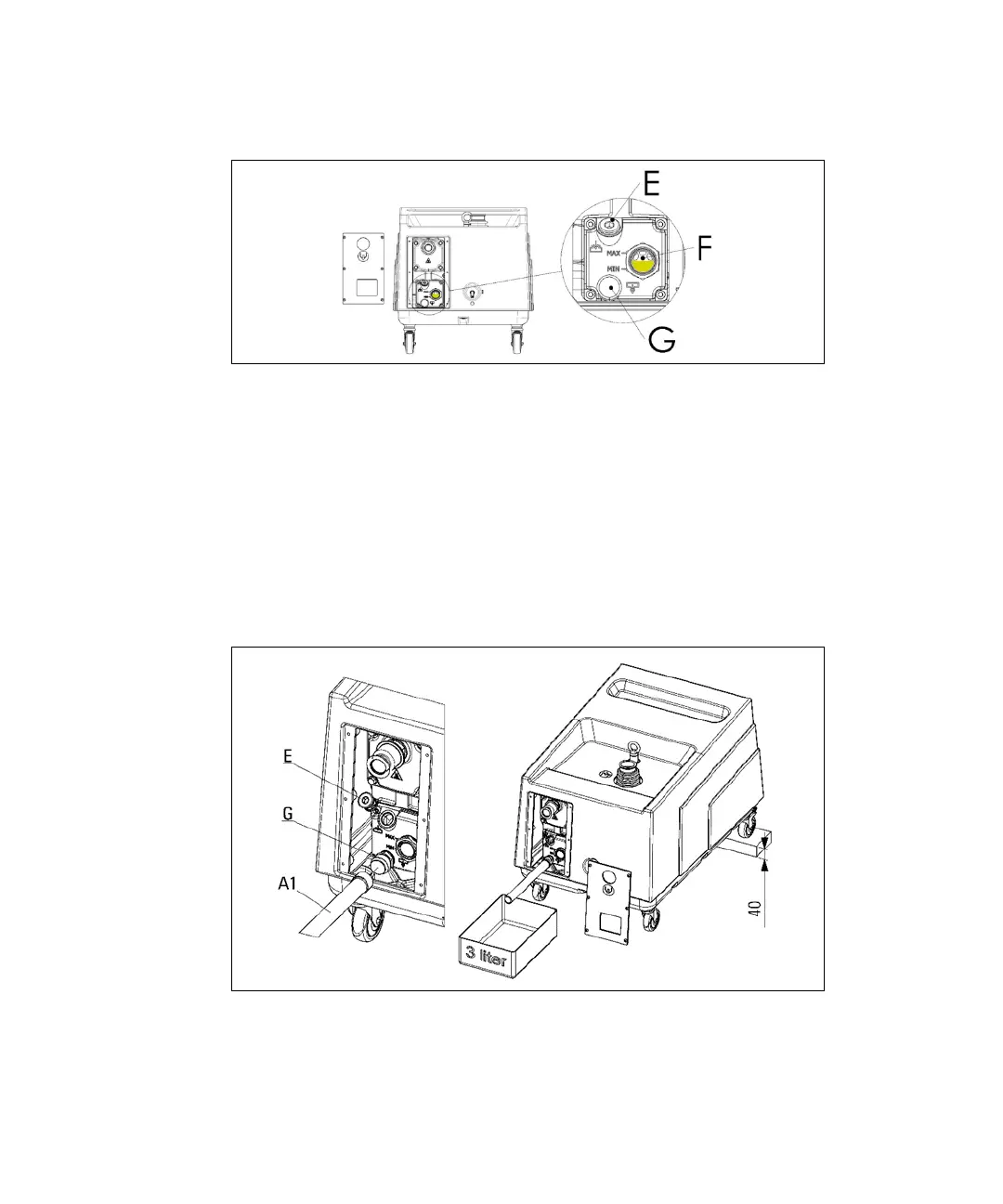

Figure 14
Screwing the oil drain pipe on the discharge (G), the lubricant will
start to drain. It is recommended to raise the pump of at least 40mm
to ensure the complete draining of the lubricant, remember to brake
the wheels to prevent the pump from falling. Once the oil in tank has
completely been discharged from the tank, reassemble both plugs
(“E” and “G”) and let the pump run under vacuum for about one
minute, so that the lubricating line gets emptied and any oil residual
keeps inside the pump. Then remove the plugs and discharge the rest
of the oil.
Figure 15
