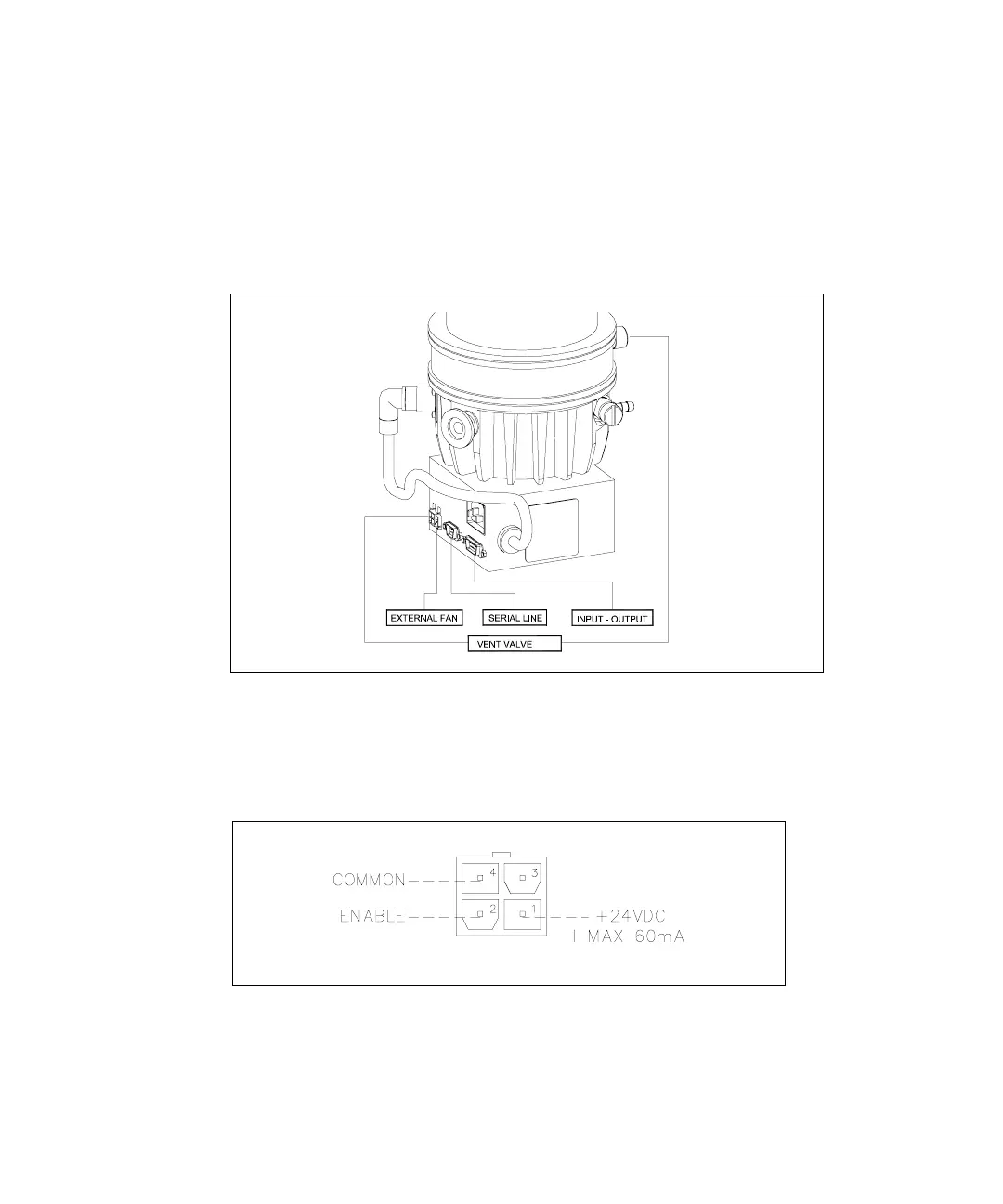

Figure 3
TwisTorr 304 FS on board interconnections
P3 - Vent
Figure 4 P3-Vent
This is a dedicated 24 Vdc connector to control the optional vent valve.
17 Technical Information
Interconnections
148/178 TwisTorr 304 FS on board Controller User Manual /
87-901-028-01 (C)
Interconnections
The following figure shows the TwisTorr 304 FS on board
interconnections.
