Technical Information
Air Cooling Kit Installation
276/304 TwisTorr 304 FS User Manual / 87-901-027-01
Air Cooling Kit Installation
An air cooling kit (X3500-68011) is available to improve the TwisTorr
304 FS cooling during operational conditions.
Fan specifications:
 air flow: 147 m
3
/h
 input voltage: 24 Vdc
 dimensions: 119 x 119 x 32 mm (4.7 x 4.7 x 1.3 in.)
 power: 2.6 W

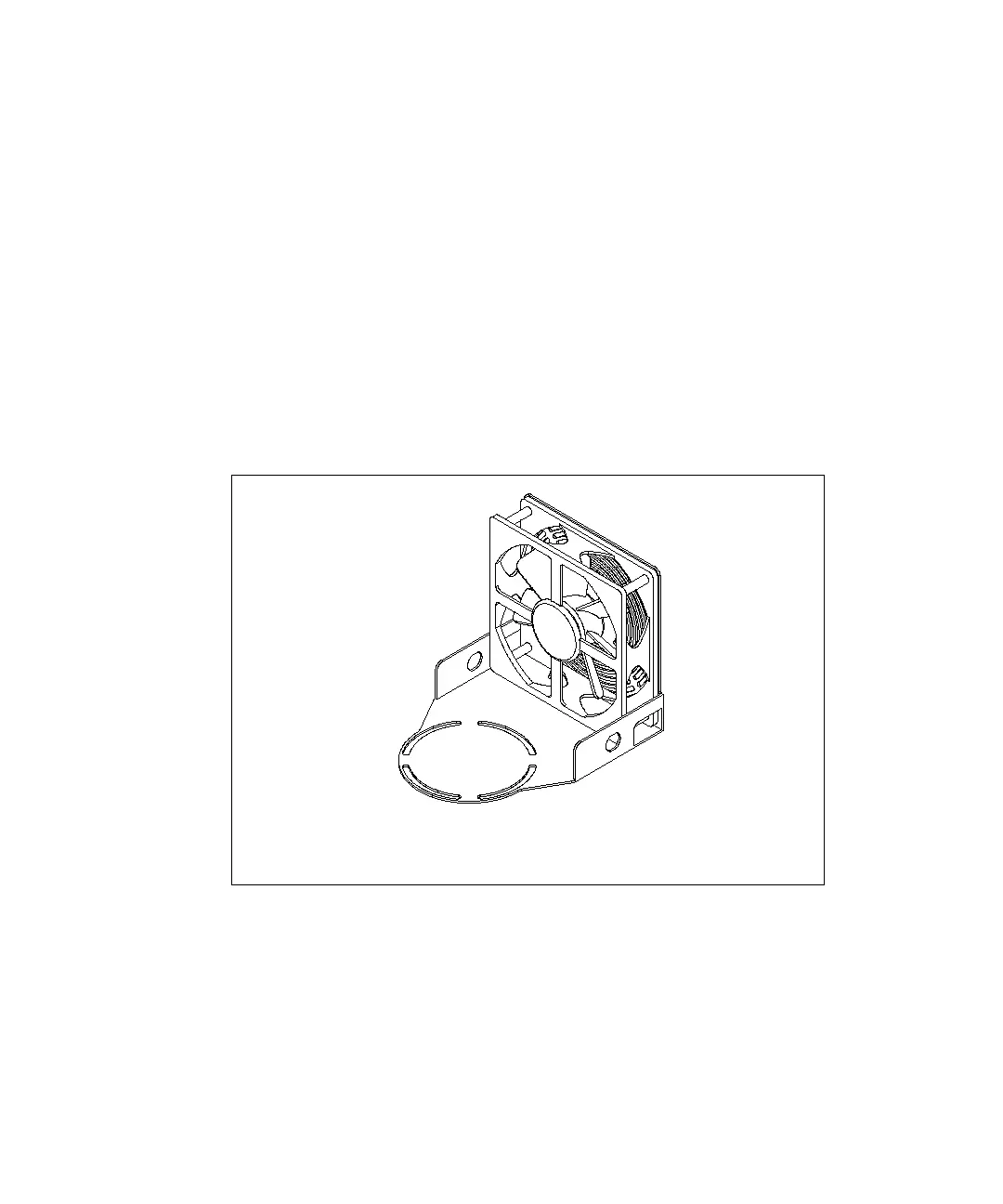

Figure 38
The fan bracket is shaped so that it can be mounted close to the
pump. When the pump is supplied by the rack C.U. , please utilize the
special fan extension cable 969-9949.
