Technical Information
Air Cooling Kit Installation
TwisTorr 304 FS User Manual / 87-901-027-01 277/304

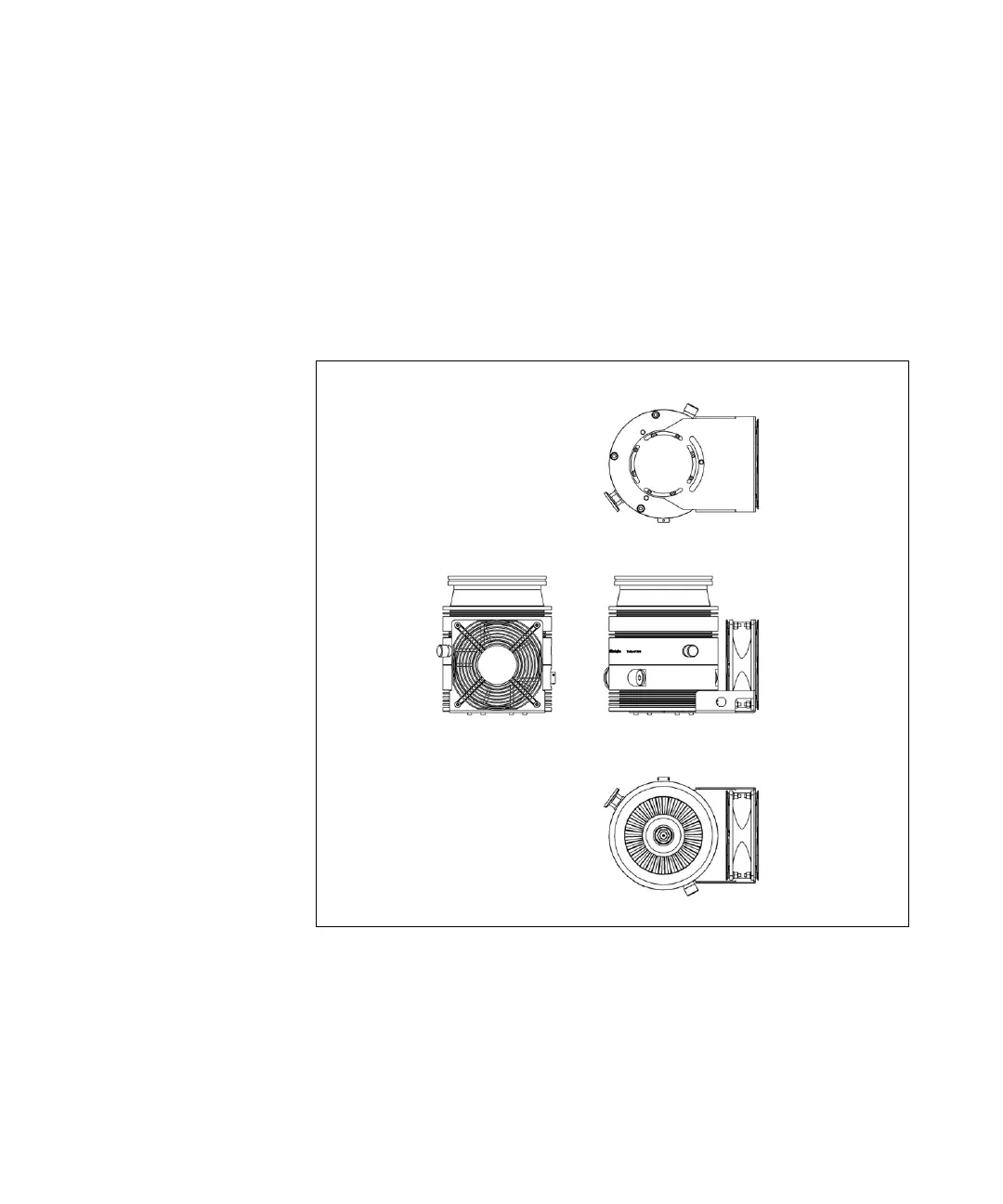

To fix the fan to the TwisTorr 304 FS case execute the following
procedure (see the following figure):
1 Fix the fan to the suitable bracket by means of the furnished
screws;
2 Fix the bracket to the pump body between the pump and the
controller;
3 Connect the fan supply to the P4 connector of the controller.
