17
Technical Information

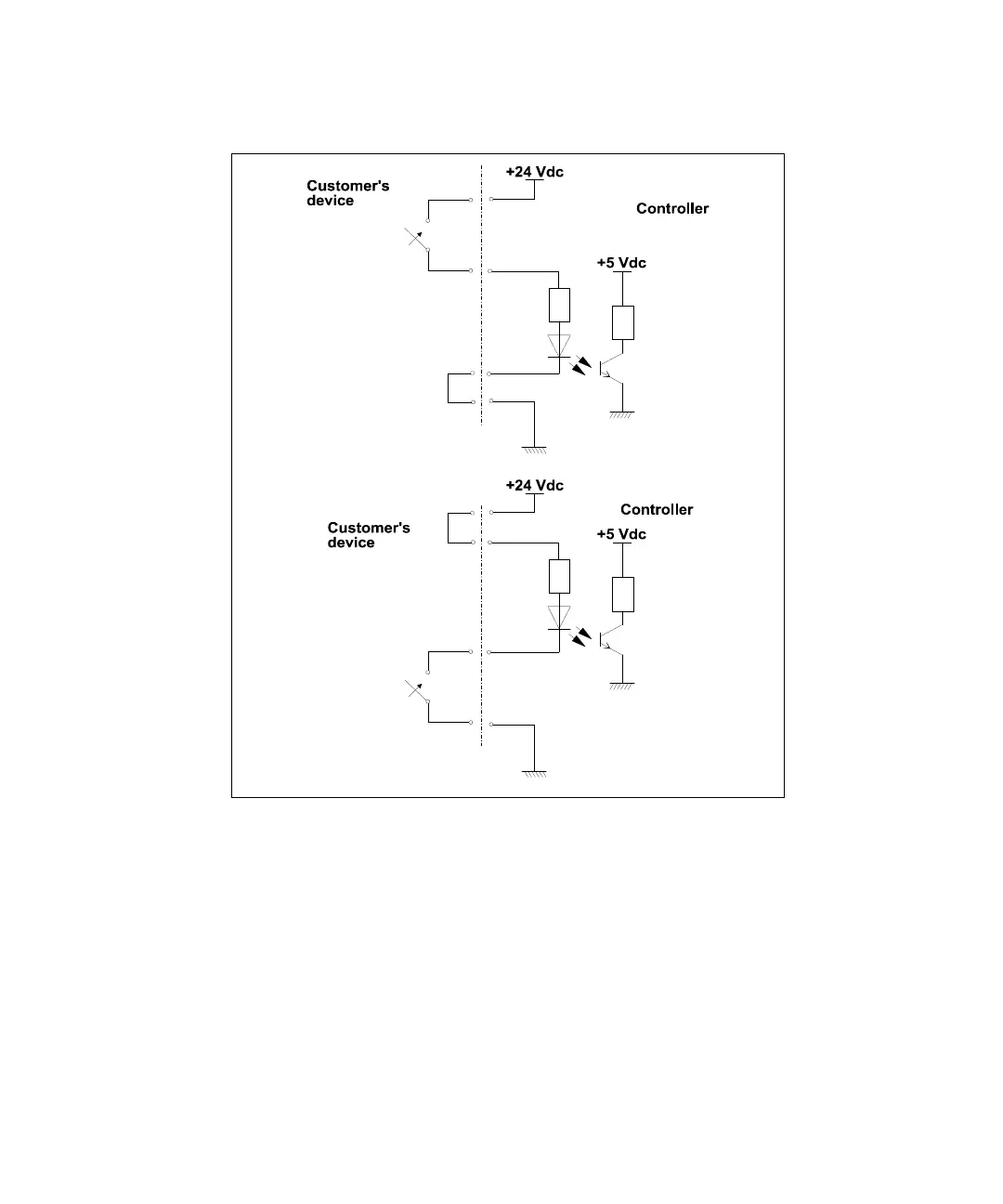

How to Connect the Open Collector Inputs of the Controller
Figure 12
Case 2 with relay utilisation
156/178 TwisTorr 304 FS on board Controller User Manual / 87-901-028-01 (C)
