Connection of the High Vacuum Flange
290/304 TwisTorr 304 FS User Manual / 87-901-027-01
8 Tighten the screws properly;
9 Turn the pump again;
10 Plug the line cord and connect the pump cable to the pump;
11 Connect the mating connector with the jumper on the interlock
signal to start the pump.
Mounting 2

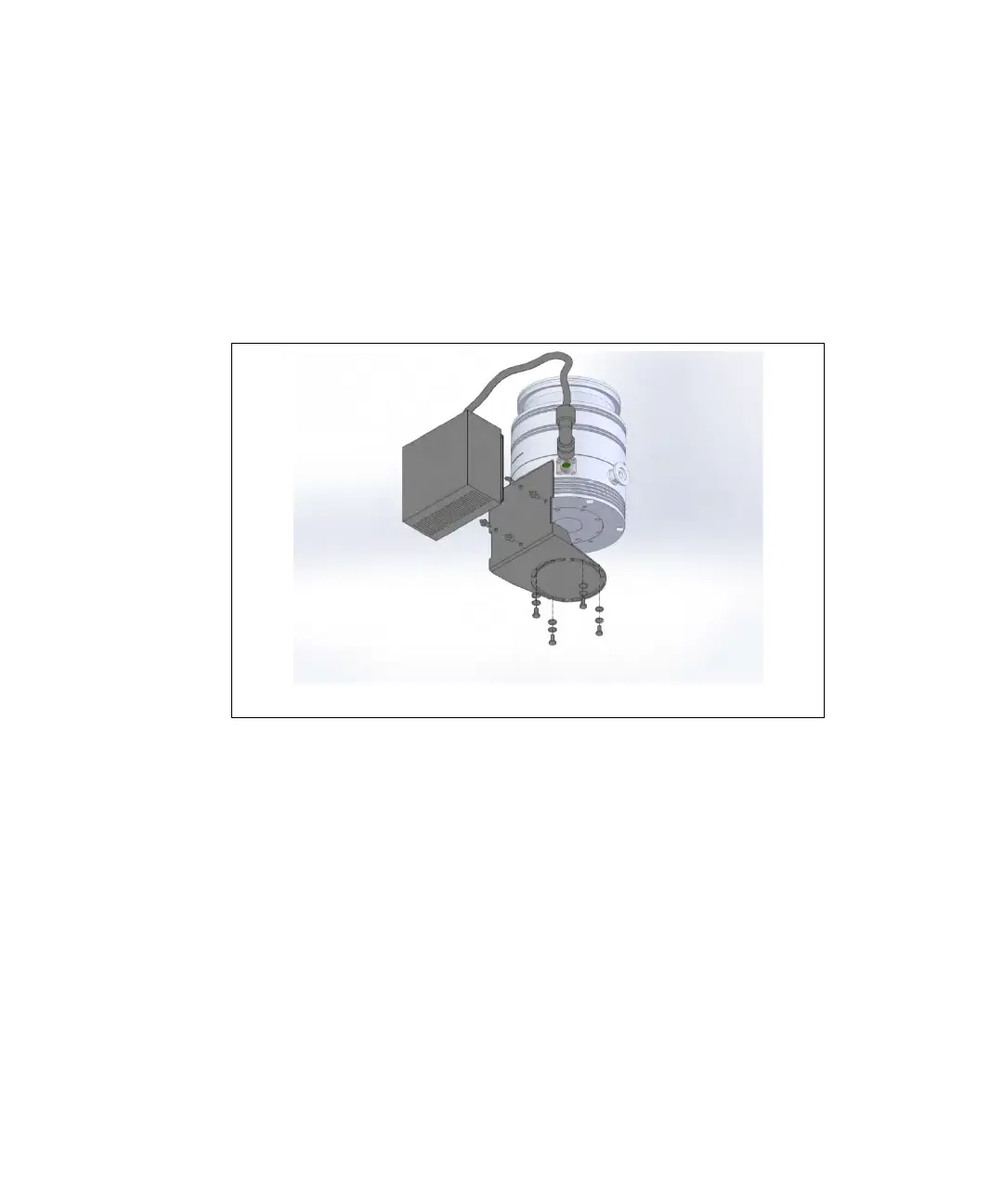

Connection of the High Vacuum Flange
In the case the rotor is suddenly blocked, the torque arising from the
system and the high vacuum flange must be absorbed. Only the
components listed in the following can be used to fasten the pump to
the high vacuum flange.
