Technical Information
Inlet screen installation
17
TwisTorr 304 FS User Manual / 87-901-027-01 275/304

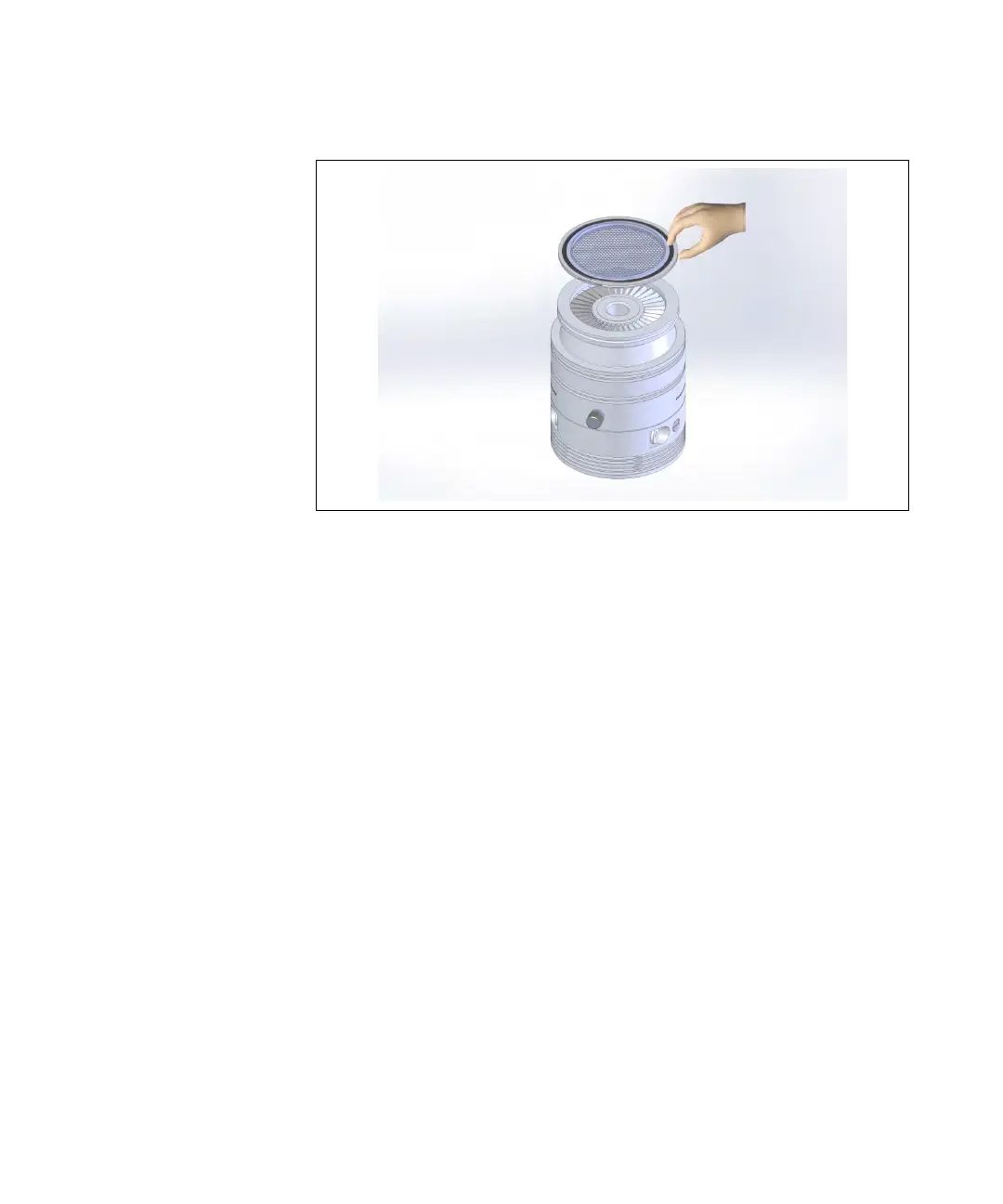

Figure 37
The overall flange dimensions with the protection screen fitted on
pump do not change as the inlet screen remains integrated into the
center-ring.
