Agilent Technologies X3500-64000

17
Technical Information
Vent Accessories
284/304 TwisTorr 304 FS User Manual / 87-901-027-01

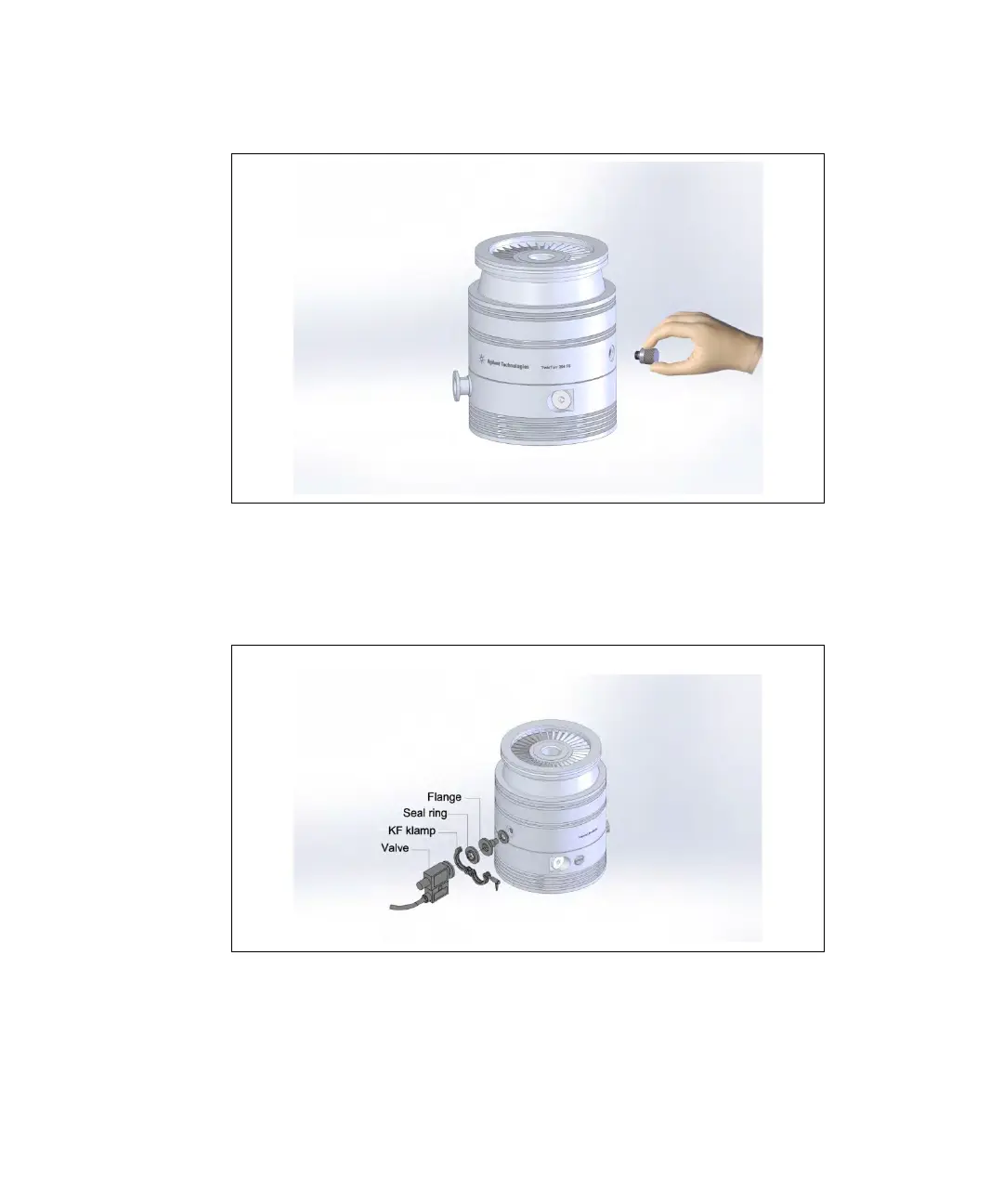

Figure 48
Screw the flange mod. 969-9108 on the pump, taking care of the oring
right position.
Assemble the seal ring and lock the vent device in position using the KF klamp.
Figure 49
