Air Techniques PROVECTA HD - 4.5 Installation Mounting Hardware

Air Techniques, Inc.
Page 10
Equipment Setup
4.5 Installation Mounting Hardware

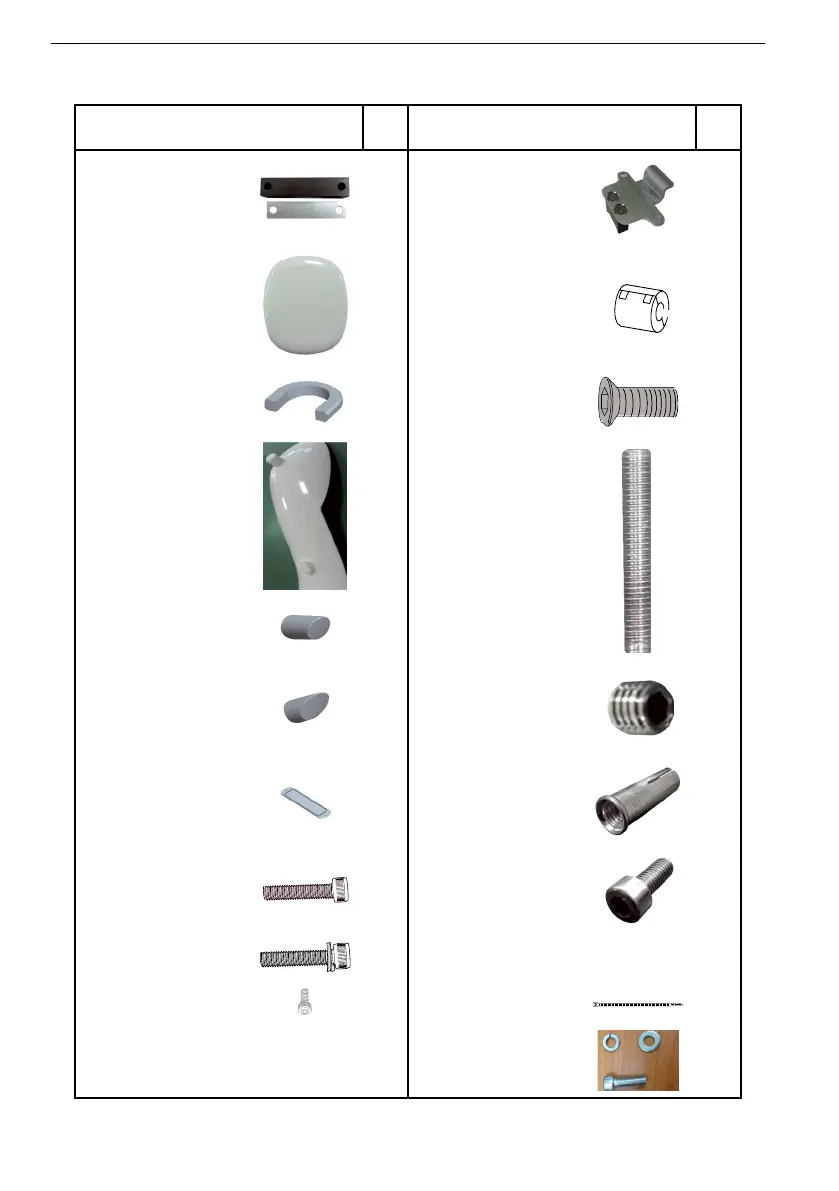

Description Qty Description Qty
Horizontal arm brake
1 Scissor arm brake 1
Horizontal arm cover
1 Ferrite Core 1
X-ray emitter lock
1
Flat head screw
M3x6
2
Supporting arm cover
1
Grub screw M5x25
1
Long supporting arm
cover plug
1
Short supporting arm
cover plug
1 Grub screw M8x8 1
Bottom horizontal
arm cover
1
Steel wall plugs (only
for concrete walls)
M8x30
5
Screw M5x30
2 Screw M8x20 4
Screw M5x15 with
spring washer
2
Screw M3x8
6 Cable tie 3
Bolt M8x25L (with
spring & flat washers)
4 ea.
