Equipment Setup
NOTE: Verifying the wall support capability and the selection of the proper mounting hardware
is the responsibility of the installer.
5.4 Base Unit Wall Mounting Options
The Provecta HD base unit is designed to mount on a single wood 4 x 4 post or equivalent drywall wall
stud support using either the Single Post Wall Mounting (4 x 4 inch post) Plate installation kit (P/N A6336)
or the 16 Inch Center to Center Wall Mounting Plate installation kit (A6330) mounting methods. Refer
to the procedures provided with the corresponding mounting plate installation kit to install the plate and
mount the base unit.

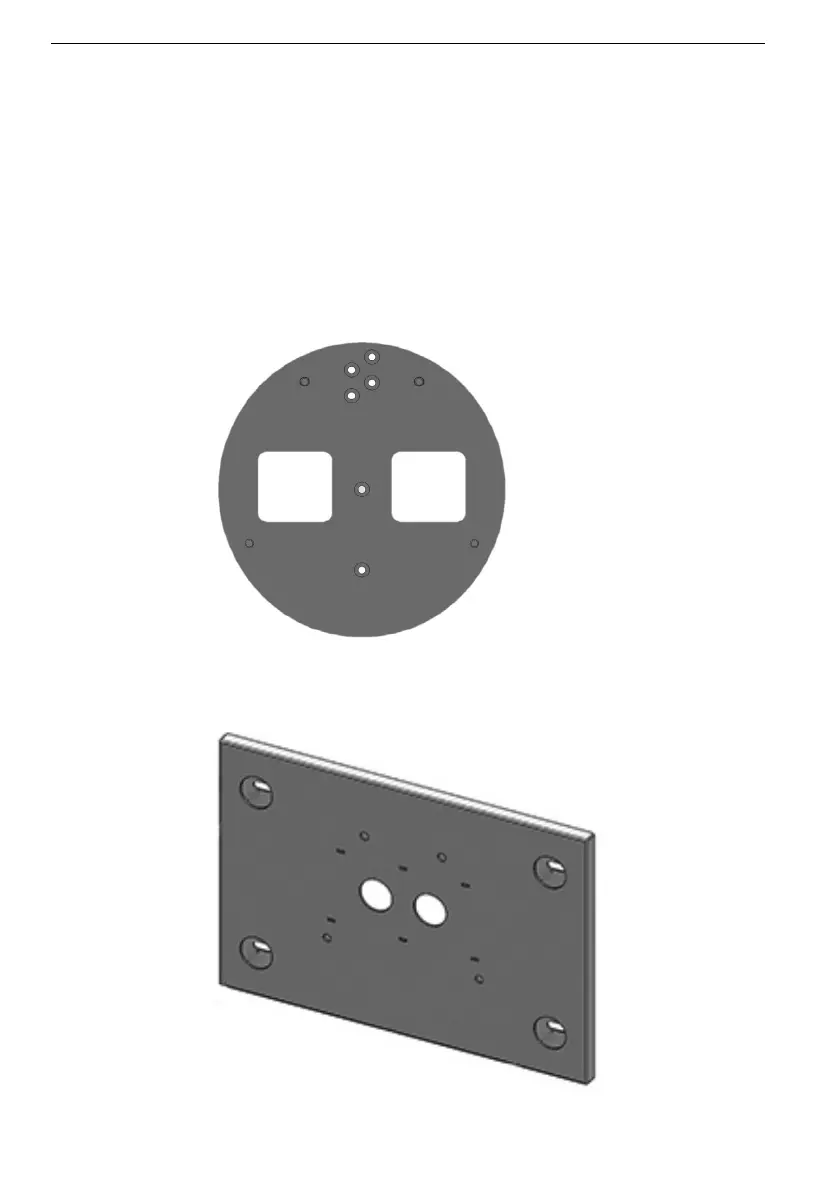

Single Post Wall Mounting Plate, P/N A6389
16 Center to Center Wall Mounting Plate, P/N A6341
