5.11 Scissor Arm Tension Alignment
The balance and spring tension of the scissor arm is initially set at the factory. During the installation pro-
cess, check the balance and spring tension.
Arm should be steady in all positions, If adjustments are necessary, follow the adjustment procedure
below.

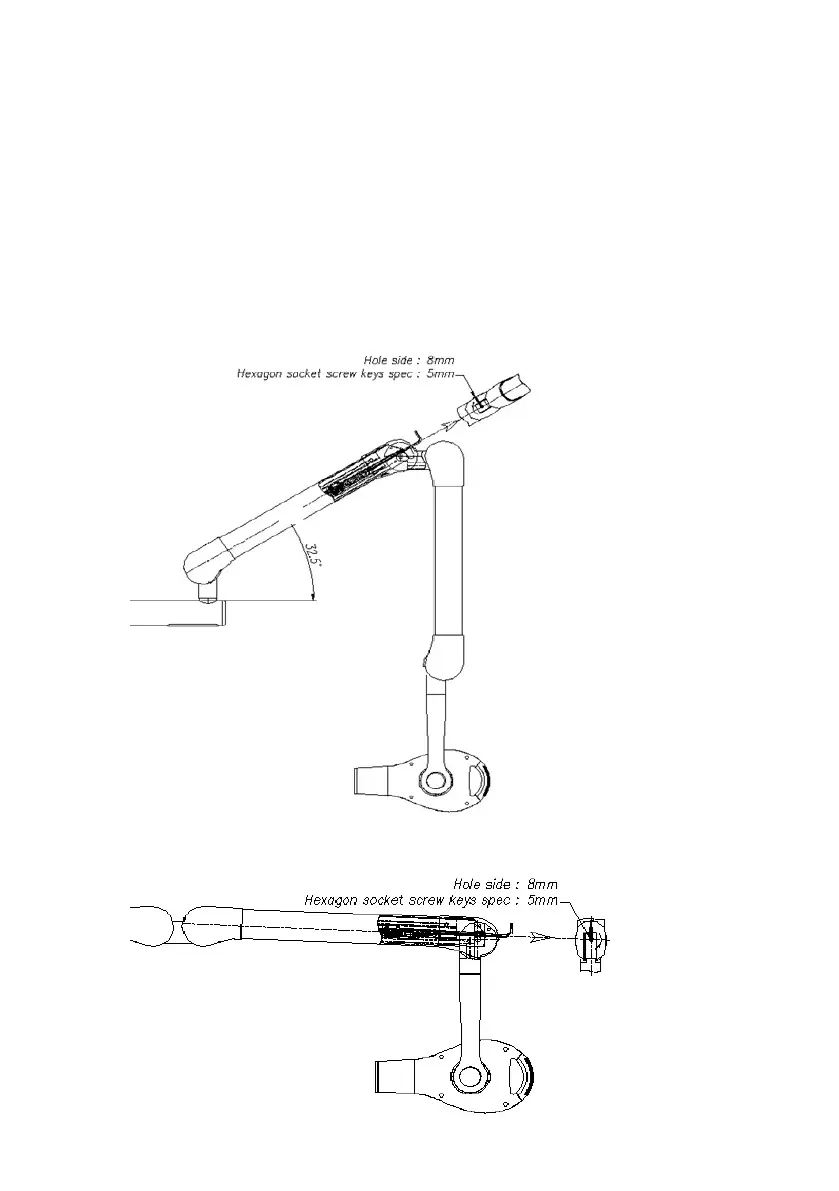

1. Place the scissor arm 32.5 degree from horizontal arm as shown in the first image below.
When the angle is correct the tool will guide into the arm easily.
* Note : Generator scissor arm should be vertically.
2. Insert the 350 mm long 5 mm allen key and turn clockwise to increase tension.
3. Place the scissor arm straight as shown in the second image below.
4. Insert the 350mm long 5mm allen key and turn clockwise to increase tension.
1
2
3
4
