5.1 Installation Procedure Summary
This section provides procedures to install the Provecta HD. Install the Provecta HD by performing the
procedures listed below and provided by the following paragraphs.
1. X-ray base unit Wall Mounting Options
- Single Post Mount (4 x 4 inch post) installation using mounting plate P/N A6389
- 16 Inch on Center Mount installation using mounting plate P/N A6341
2. Control unit disassembly for base unit access
3. Base unit lock slide setup
4. Base unit with exposure keypad installation
5. Horizontal arm and scissor arm installation
6. Tubehead installation
7. Determine optional remote switch configuration and install as necessary.
(See kit, part number A6320.)
8. X-ray control and main power connections
5 Installation

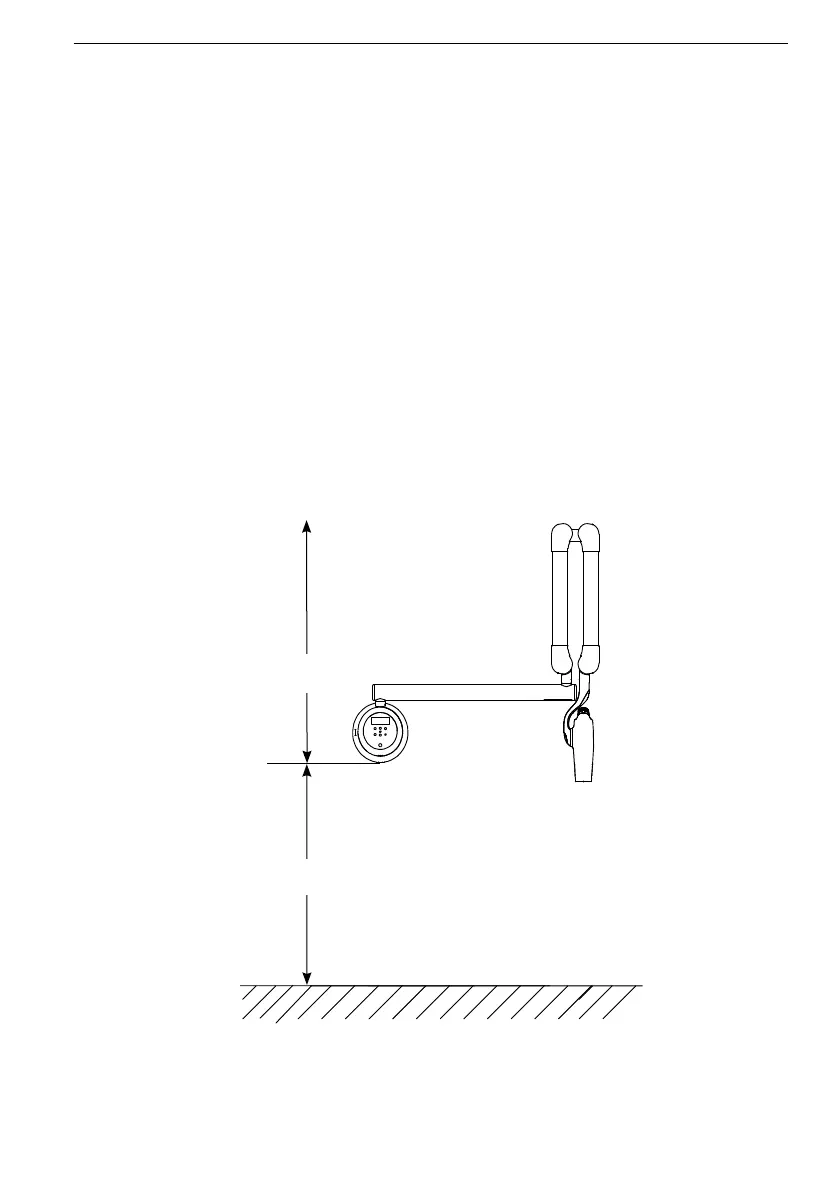

Provecta HD Base Unit Placement Above Floor ( minimum 8 foot ceiling)
