Air Techniques, Inc.

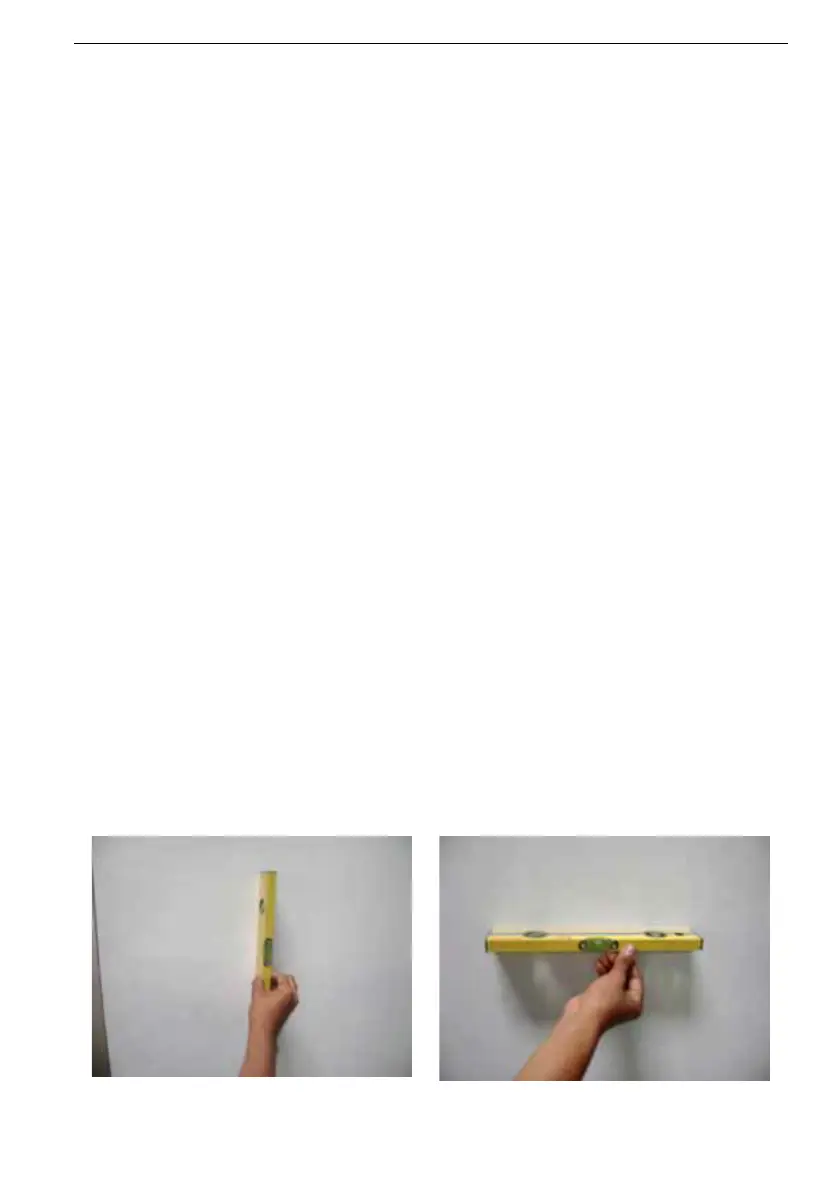

View A. Verify Vertical Leveling View B. Verify Horizontal Leveling
Site Survey
Make sure that the wall for mounting is strong enough for the installation and meet the support
load requirements of paragraph 4.6.
Make sure to review and understand all Technical data provided by paragraph 3.1 above.
Make sure the mounting wall is level in both vertical and horizontal directions using a level
indicator as shown below. If the wall is not level, adjust the leveling of the unit to be installed
by inserting shims as required between wall plate and base unit plate.
Make sure there shall be no electrical wiring conduits running around the area to be drilled
for the installation bolts.
Make sure that control unit to be mounted on the wall at a height of 45.25 inches (1150mm) for
single stud mounting from the floor (above finished floor). However this can change based on
site conditions without affecting the functionality of the system.
Make sure the location allows sufficient space for movement of the arms in the extended condition.
Make sure that the location allows the Provecta HD to be used with ease for all possible imaging
procedures on the patient with respect to the patient chair location.
Site Environment Requirements
Provecta HD is designed for indoor usage.
It should not be subjected to direct sunlight for any extended duration.
Mount the Provecta HD unit away from sources of liquid ingress.
If the unit is stored below 50°F (10°C) , time must be allowed for the unit to reach room tem-
perature before connecting it to the mains voltage.
Electrical Outlets & Requirements
The mains outlet should have a ground connection. Grounding of the electrical system must be
checked before connecting Provecta HD.
Additional wiring required for the site must done by a qualified electrician. All wiring should
conform to requirements provided by the User manual and in accordance with local codes.
The mains outlet should be capable of supplying 16A (110V) of current. It shall have fuse
protection or provided with a circuit breaker of 16A (110V).
It is recommended to have an ELCB (Earth Leakage Circuit Breaker) for protection against
earth leakage.
4.6 Site Preparation
Equipment Setup
