Air Techniques, Inc.
Equipment Setup

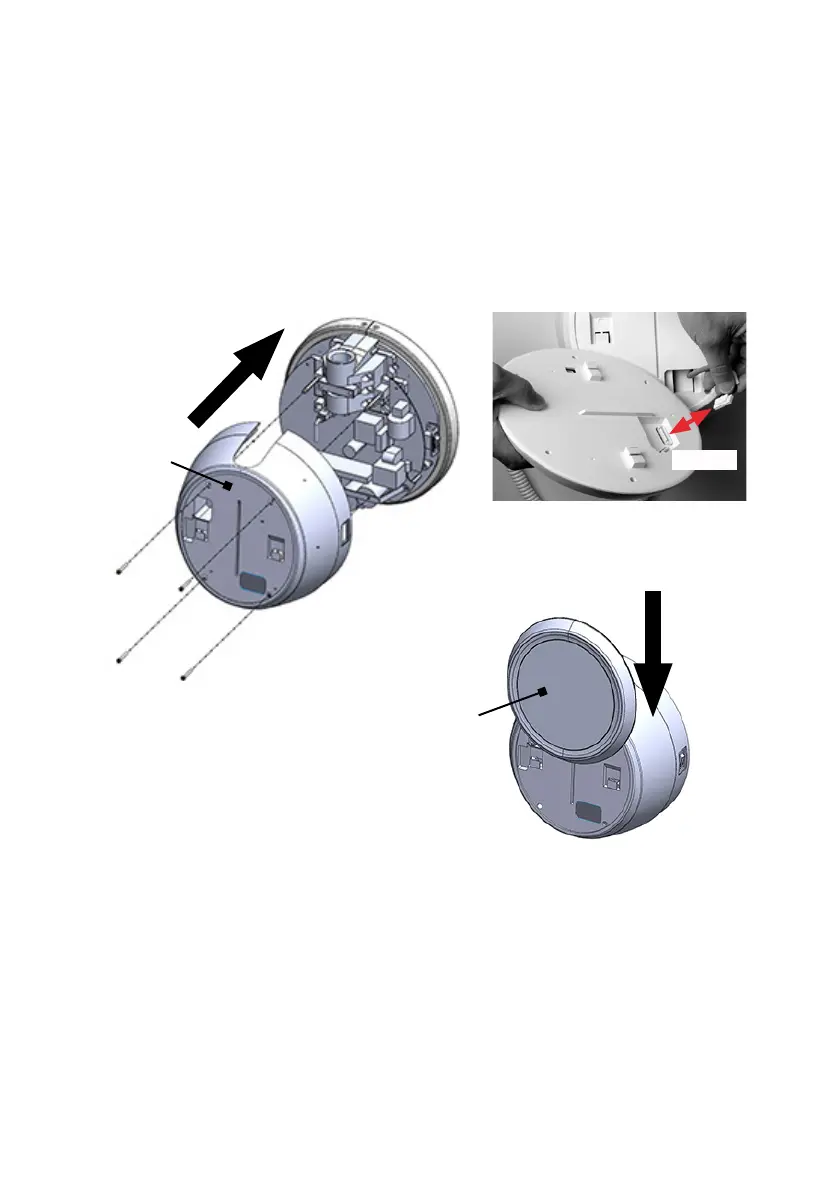

5.10 Assembling the Control Unit
Assemble the control unit by performing the following procedure.
1. Carefully thread the keypad connector cable through the control unit cover and align the
cover with the base unit.
2. Install and tighten the 4 screws (A, B, C,D) securing the control unit cover.
3. Connect the rear keypad connector of the control panel
4. Align the panel spine with the control unit cover center groove and slide the control panel
down in place.
B
C
A
D
Control Unit
Cover
Control
Panel
Keypad Connector Cable
Connect
To Next Page
