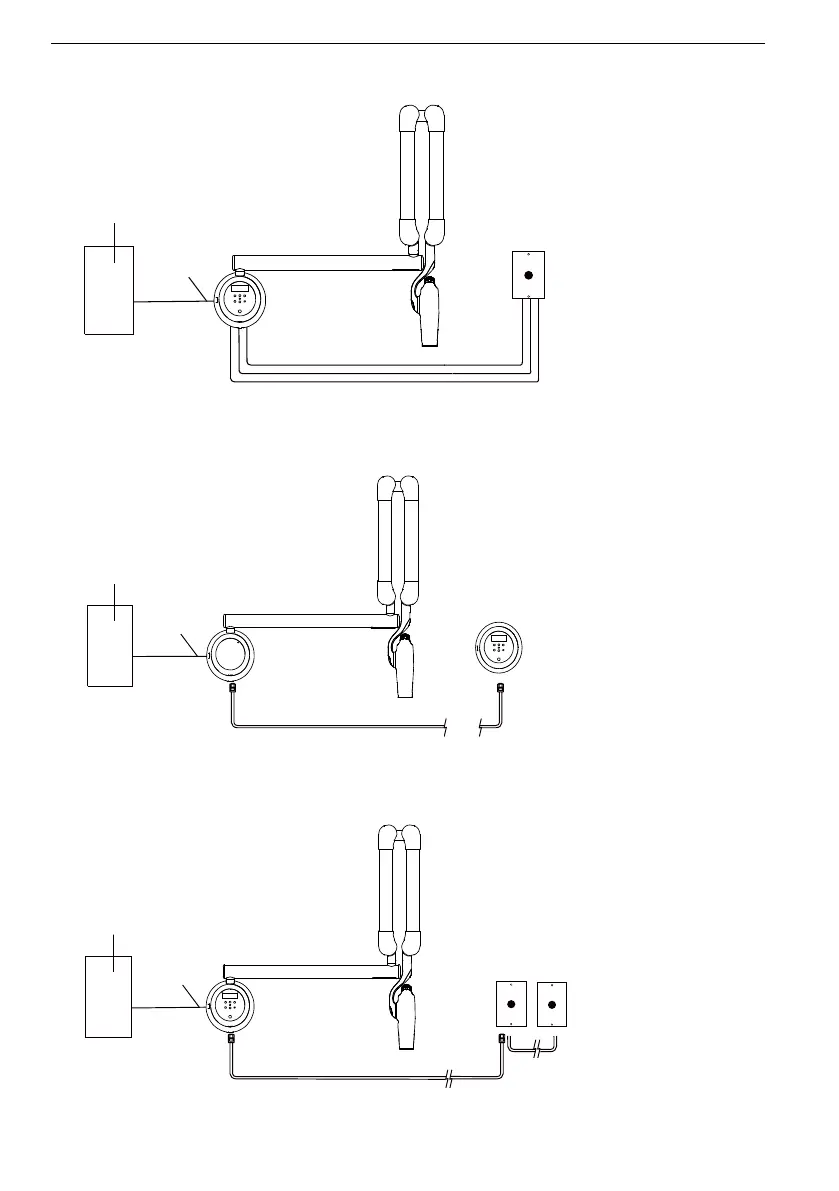

Equipment Setup
Configuration No. 4 -
1 ATI R emote Wall Plate Pushbutton Exposure Switch Kit (A6320) (3 wire)
Configuration No. 6 -
2 Remote Wall Plate Pushbutton Exposure Switch Kits (A 6320) (RJ11)
Configuration No. 5 -
Wall Mounted Remote Keypad Console using Control Panel Remote Mounting Kit (A6400)
Internal Wiring
(CAT 6 with RJ45 Connectors)
Power Source
Control Panel
or Outlet
Control
Panel
3-Wire Power
Connection
50 ft
(15 m)
Max
Control Unit
without
Control Panel
Remote Wallplate
Pushbutton
Exposure Switch
Control Unit with
Control Panel
Power Source
Control Panel
or Outlet
3-Wire Power
Connection
3-Wire Remote Connection
Remote Wallplate
Pushbutton
Exposure Switches
Control Unit with
Control Panel
Power Source
Control Panel
or Outlet
3-Wire Power
Connection
Internal Wiring
( RJ11 Connectors) (RJ11
Connectors)
SW #1 SW #2
