AIREDALE LogiCool InRak - Unit Pressure Drops (CC); Unit and Leak Isolation Pressure Drop (CC)

Technical Data - Dual Cool Chilled Water

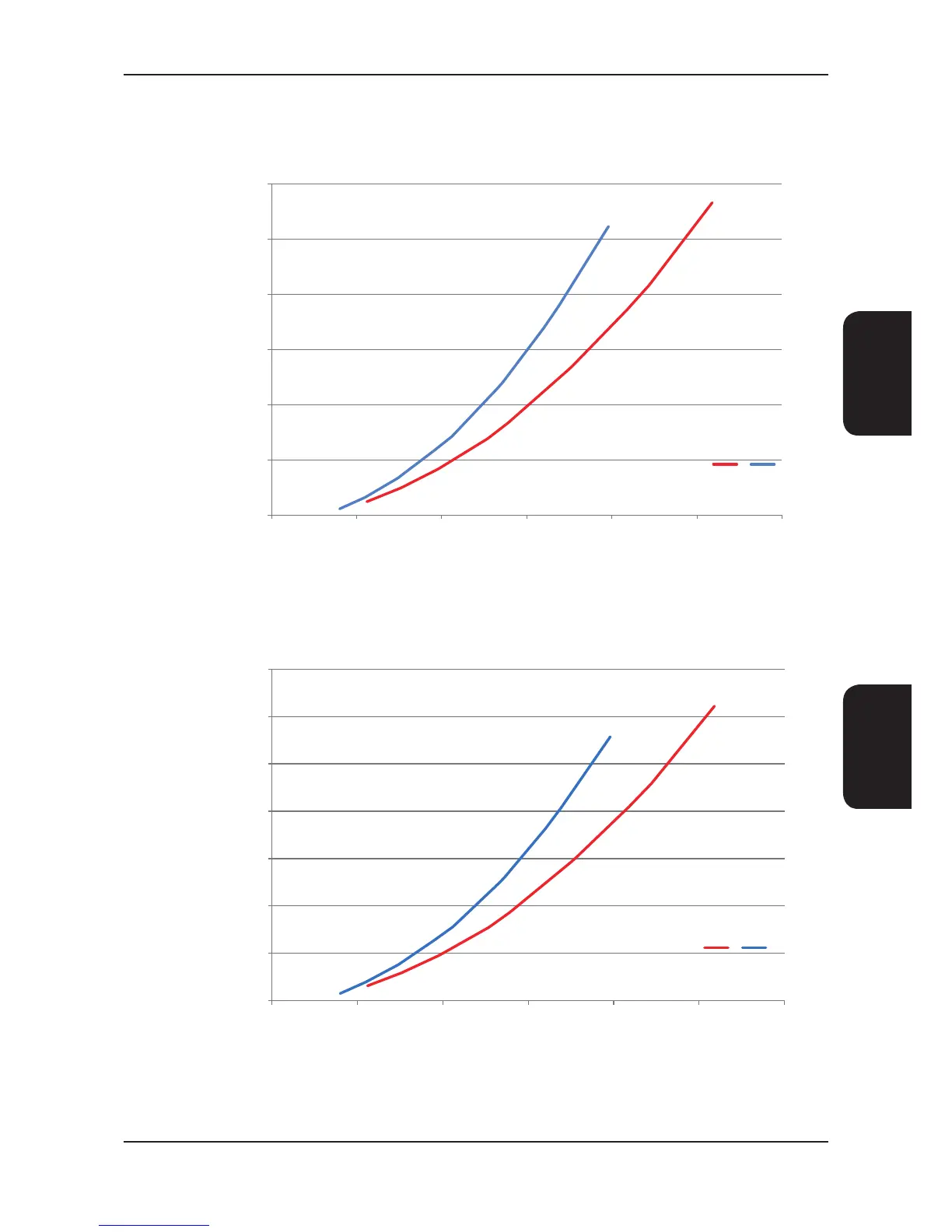

Unit Pressure Drops (CC)
Unit and Leak Isolation Pressure Drop (CC)
0
20
40
60
80
100
120
0 0.5 1 1.5 2 2.5 3
Pressure Drop (kPa)
Flow Rate (l/s)
1 2
1 LIR6042U-CC30-0, LIR6042U-CC40-0, LIR6042U-CC30-1, LIR6042U-CC40-1.
2 LIR6042U-CC22-0, LIR6042U-CC26-0, LIR6042U-CC22-1, LIR6042U-CC26-1.
1 LIR6042U-CC30-0, LIR6042U-CC40-0, LIR6042U-CC30-1, LIR6042U-CC40-1.
2 LIR6042U-CC22-0, LIR6042U-CC26-0, LIR6042U-CC22-1, LIR6042U-CC26-1.
0
20
40
60
80
100
120
140
0 0.5 1 1.5 2 2.5 3
Pressure Drop (kPa)
Flow Rate (l/s)
1 2
