AIREDALE LogiCool InRak - Incoming Services - Electrical

Installation

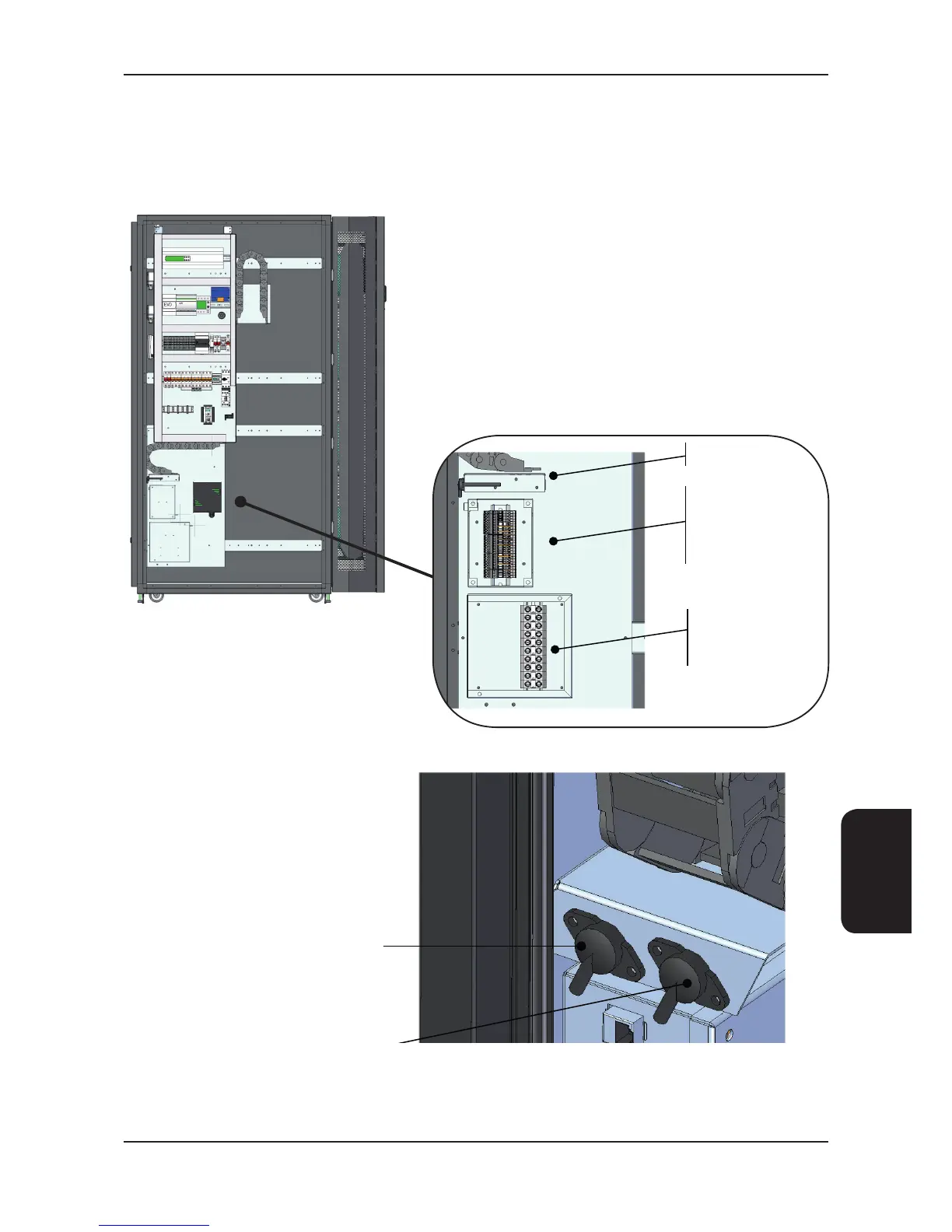

Electrical Services Incoming Cabling
The electrical services enter the unit through either the base or the roof of the unit. Termination is via a terminal box at
the base of the unit (bottom connections only, top connection direct to isolator).
IT Cooling
LogiCool InRak™
59
InRak™ Technical Manual 7462807 V1.11.0_04_2016
Installation
Hot Aisle Pressure
Tapping
Cold Aisle Pressure
Tapping
Connections are to be made between the tappings above (located in control panel) and pressure points in the aisles.
The tappings above are linked to the differential pressure sensor in the unit making easier customer termination.
Mains Incoming Cabling
• Supply A
• Supply B
• Sensors
• Network / BMS Connections
• Outdoor Fan Speed Control
• Cooling Demand to Chiller
• Remote On / O
• Alarms
• Aisle Pressure Tapping
