AIREDALE LogiCool InRak - Page 57

Installation
Incoming Services

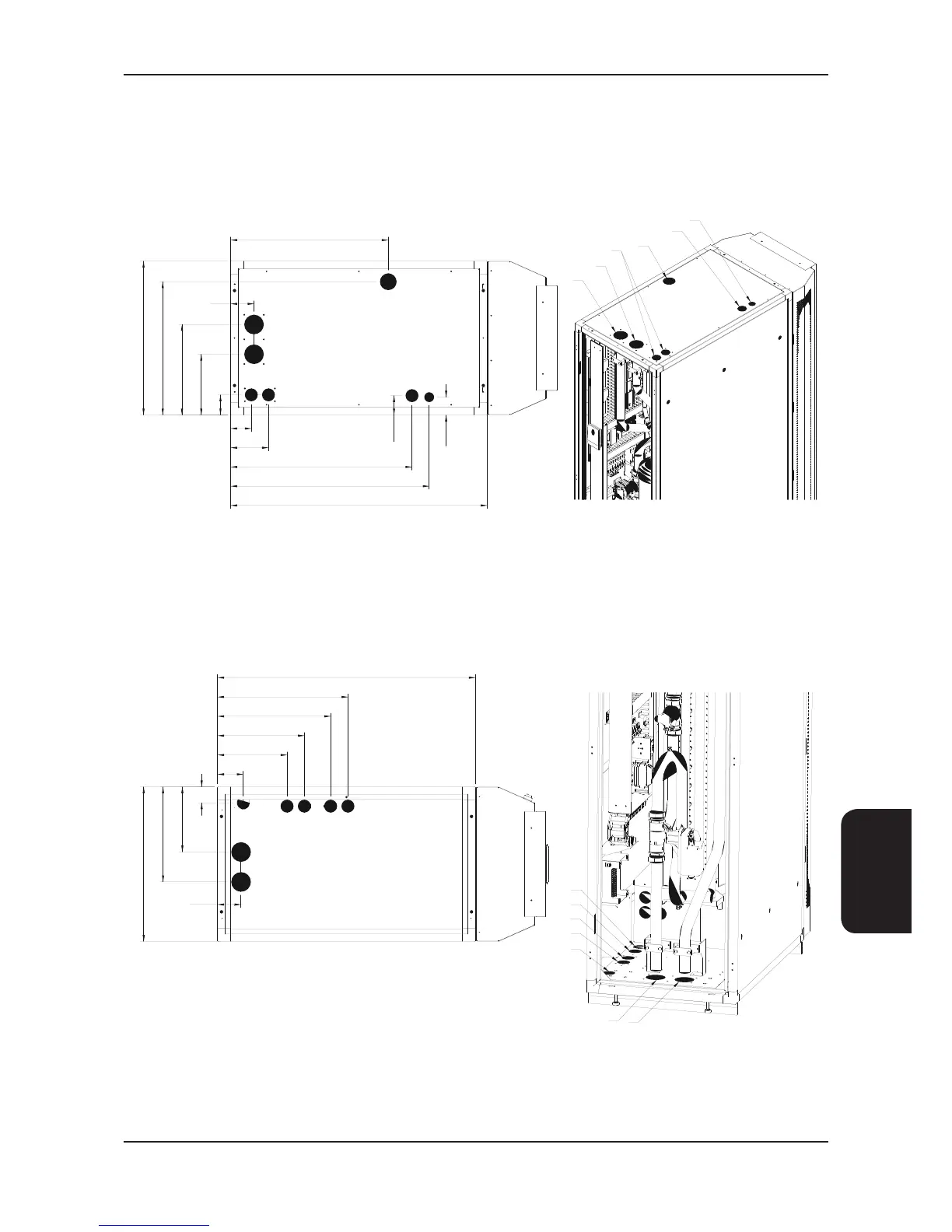

Top Entry - Chilled Water
Bottom Entry - Chilled Water
IT Cooling
LogiCool InRak™
57
InRak™ Technical Manual 7462807 V1.11.0_04_2016
Installation
HOLE 'A'
Ø
50mm CONTROLS IN/OUT
HOLES 'B' Ø50mm MAINS POWER SUPPLY
HOLE 'C' Ø50mm
HOLE 'D' Ø50mm CONDENSATE DRAIN
HOLE 'E' Ø76mm WATER OUTLET
HOLE 'F' Ø76mm WATER INLET
B
B
A
C
D
E
F
A
B C D
E
B
F
100
270
336
438
506
1040
62
253
369
600
91
VIEW FROM TOP
HOLE 'A' Ø65mm CONTROLS IN/OUT
HOLES 'B' Ø50mm MAINS POWER SUPPLY
HOLE 'C' Ø50mm
HOLE 'D' Ø38mm CONDENSATE DRAIN
HOLE 'E' Ø76mm WATER OUTLET
HOLE 'F' Ø76mm WATER INLET
HOLES 'B','E' AND 'F' TO BE SUPPLIED WITH GLAND PLATES FITTED .
ALL OTHER HOLES TO BE FITTED WITH BLIND GROMMETS
A
E
F
B
C
D
B B
A
C
D
F
E
78.5
236.8
352.8
519.5
91
614.5
80.5
147.5
707
774
1040
600
69.5
75.5
VIEW FROM TOP
Cable and pipe work passing through oors / ceilings are required to be sealed by integral grommets to ensure efcient
unit operation.
