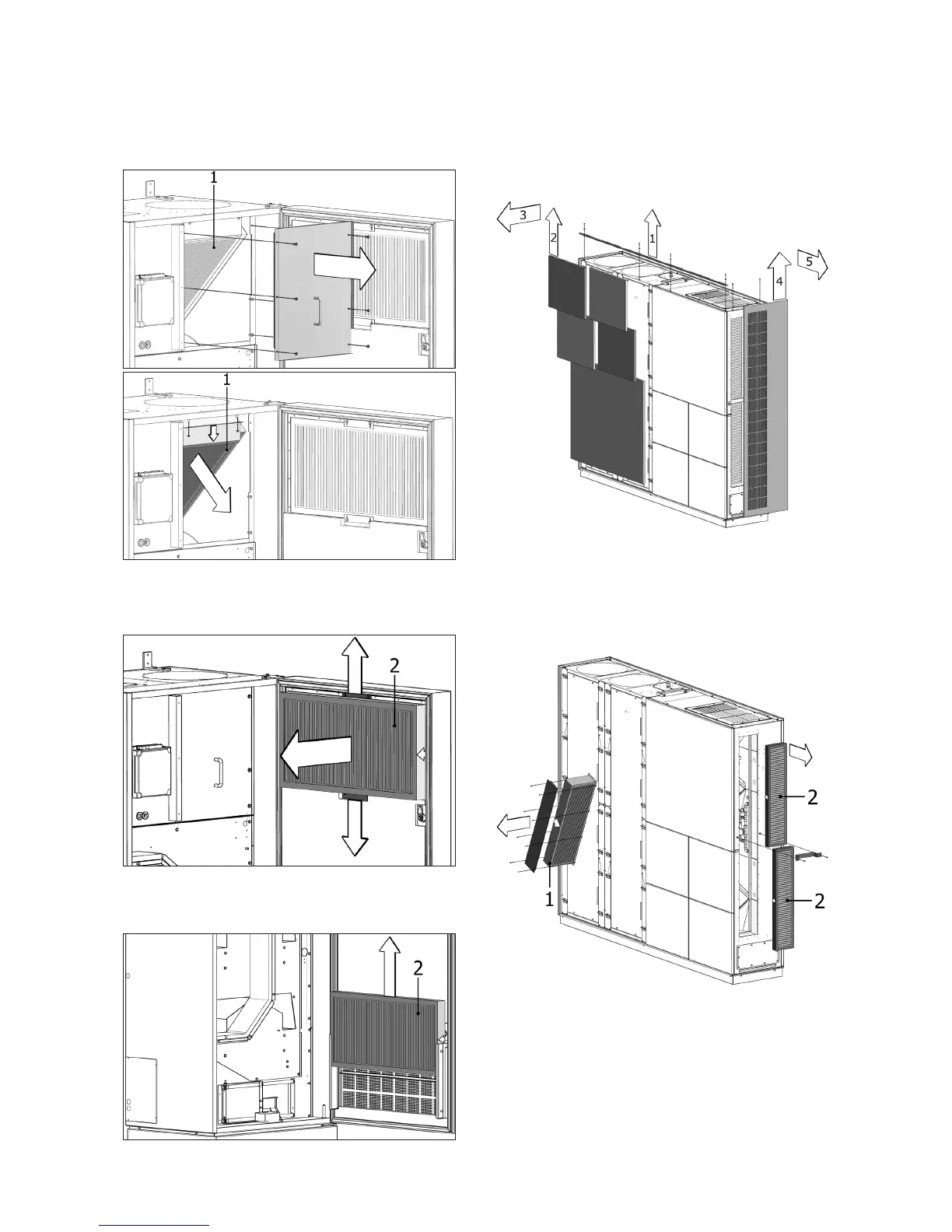

Filter position AM 900:
1. Supply air lter (1) (M5, F7, F9) behind the service cover
on top of a AM 900 unit:
2. Extracted air lter (2) (M5 only) on top of the front cover
on a displacement model:
3. Extracted air lter (2) (M5) at the bottom of the front
cover of a mixing model:
Filter position AM 1200:
Supply air lter (M5, F7, F9) is tted behind the side panels
on the motor section and is accessible from the left and
right sides. Extracted air lter (M5) is tted behind the
extraction panel.
Supply air lter (1) is tted under a service cover and exhaust
air lters (2) are tted using a retaining plate.
