Streaming Profiles
Below the Stream button is a drop-down menu for 10 different Streaming Profiles
which behaves similarly to the Recording Profiles. The text-entry box is a search
feature. Entering text lists only the profiles containing matching characters.
The blue gear is a shortcut to the current streaming profile. Check with your
streaming host for their suggested streaming settings.

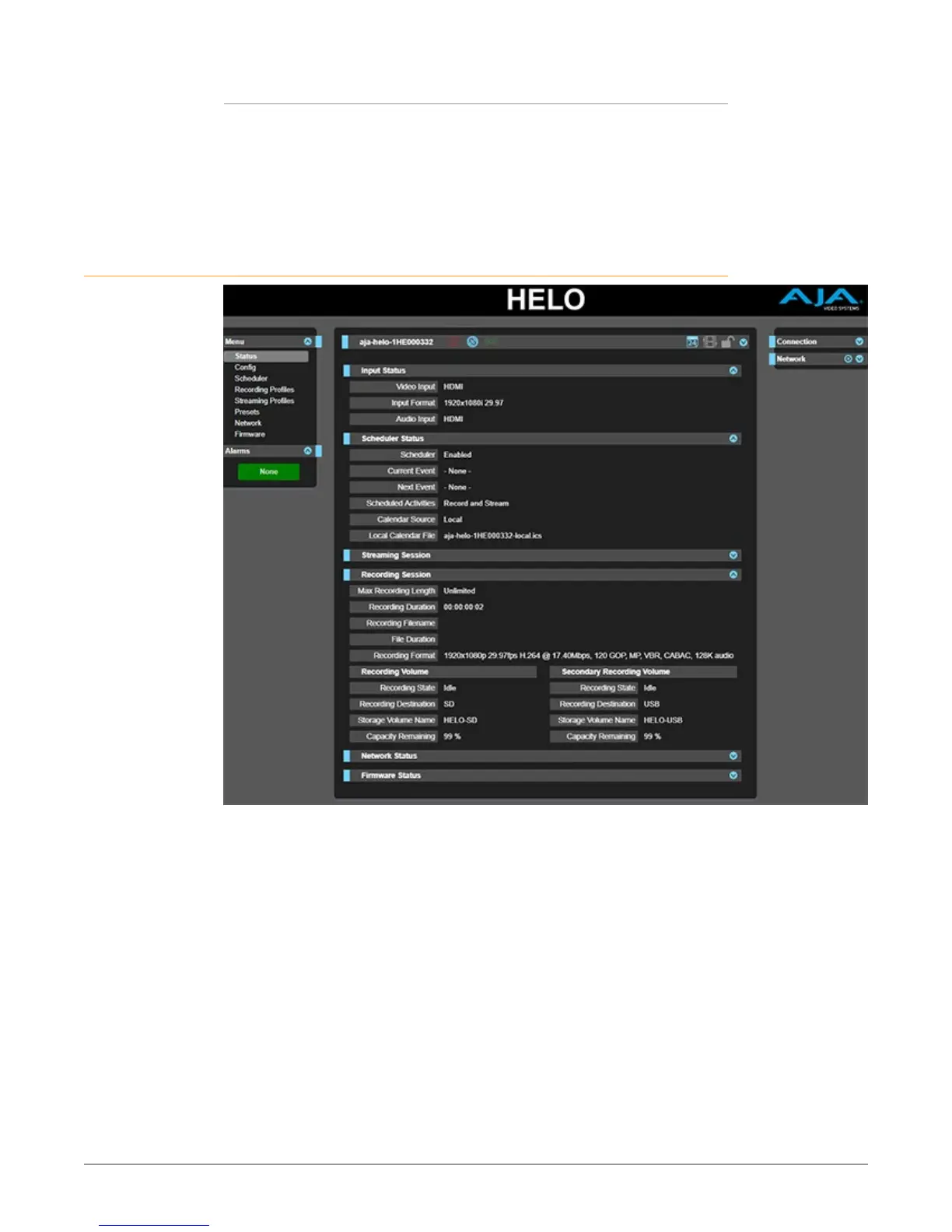

Status Screen
The Status screen reports the current status and settings for:
• Input Status
• Scheduler Status
• Recording Session
• Streaming Session
• Recording Volumes
• Network Status
• Firmware Status
Each group of parameters can be opened or closed.
Some of the parameters are editable using a right click. For example, right clicking
on the Video Input selection will bring up a list of available inputs, allowing you to
change it. Parameters cannot be changed when currently streaming or recording.
