Software
• Built-in web server for full remote control and conguration
• eMini-Setup can be used with a USB connection for initial HELO conguration

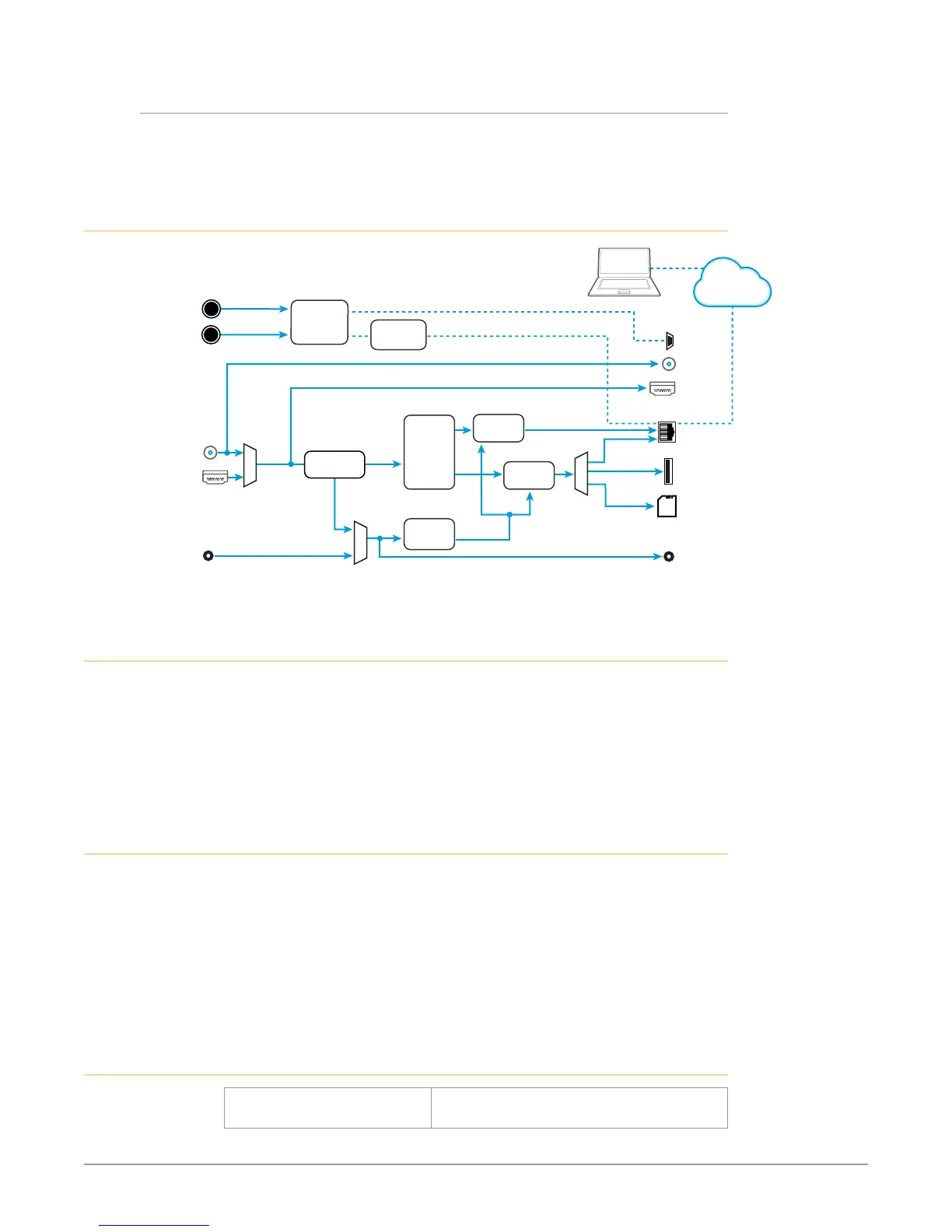

Simplified Block Diagram
HELO CPU
Control
Rec
Button
Stream
Button
HDMI In
SDI In
HDMI Out
SDI Out
Storage
USB
SD Card
RJ-45 LAN
Video
Encode
Audio
Encode
Recording
Interface
Remote Web
Browser
Control
Video Video
2 ch.
Audio
Streaming
Interface
Audio
De-Embedder
Stereo
Analog
Audio In
Stereo
Analog
Audio Out
LAN or WAN
Ethernet
2 ch. Audio
Cong
USB
Conguration and Operation
Conguration Only
Embedded
Web Server
What’s In The Box?
When you unpack your product you will find the following components:
• HELO streaming/recording encoder
• USB cable
• Universal input +5V power supply AJA model DWP-U-R1
Please save all packaging for return shipping, should you wish to do so.
System Requirements
Remote computer configuration and control is accomplished using HELO’s
internal web server. A Mac OS X or Windows computer with a web browser
installed is all that is required. A USB port is also required for eMini-Setup
configuration.
NOTE: Safari is the preferred web browser for control on the Mac, and additionally
Chrome and Firefox on Windows. Other web browsers may work, but AJA cannot
guarantee consistent operation for all web browsers or web browser versions.
In This Manual
Chapter 1 - Introduction Introduces the product, listing features and
system requirements.
