Ki Pro Quick Start Guide— A quick synopsis of the parameters in the CONFIG menu

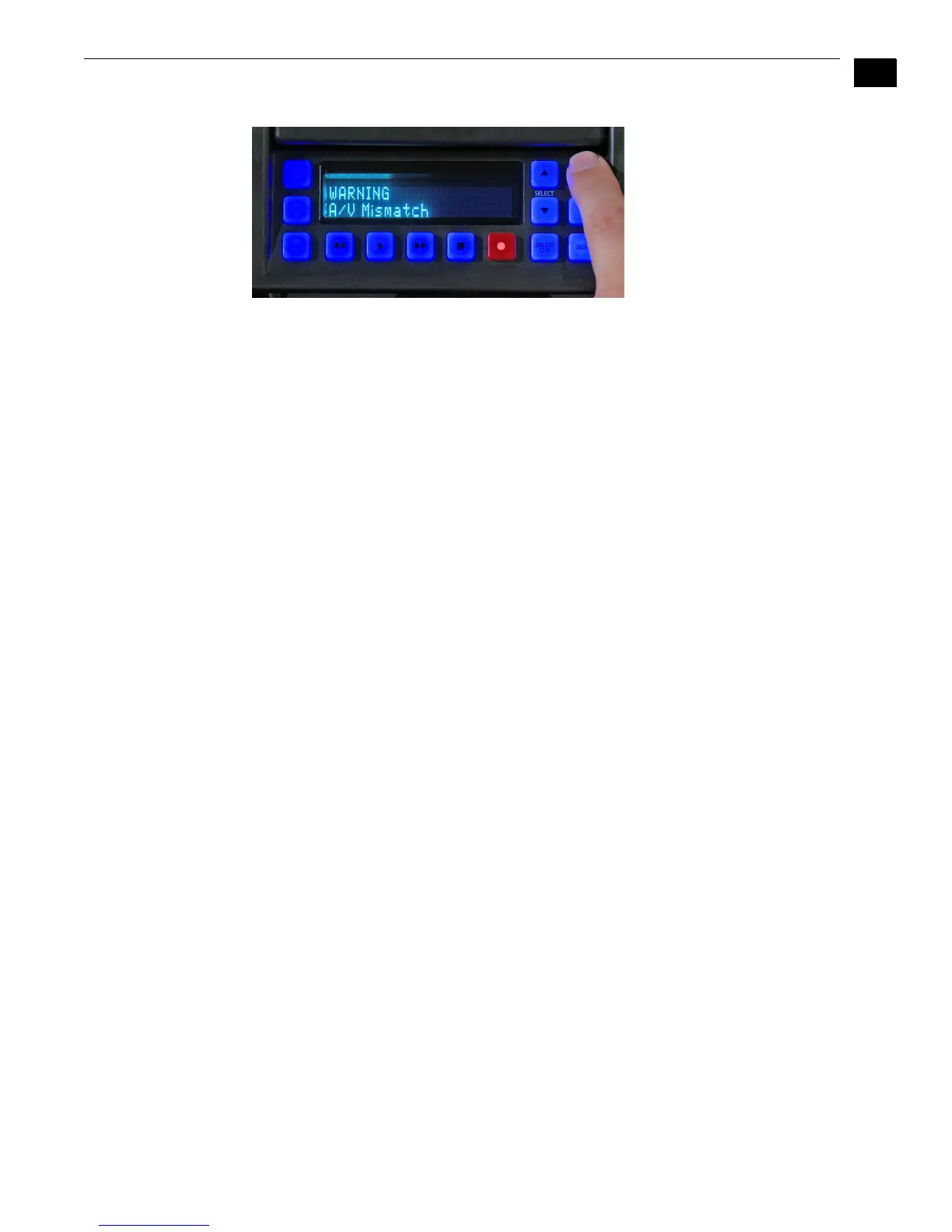

2.2 Audio Input This parameter selects an audio input source from the audio input connections available,
including embedded SDI audio which requires an SDI video source and HDMI audio, which
requires and HDMI video source. Analog audio can be used with any video source.
3.1 Component In Lvl This parameter selects the input level for signals applied at the component video input
connectors. For HD sources, the selection will be SMPTE/N10, but if you are getting signal from
something like a BetacamSP VTR, then you would select "Betacam".
3.4 Component Out
Lvl
This parameter selects the output level for signals applied at the component video output
connectors. If you are monitoring in HD, you will want to leave the setting at SMPTE/N10, but if
you are monitoring in SD, you will likely want to set this to "Betacam". In rare cases, you may be
connecting the Ki Pro output to a RGB only device (like a projector) and therefore may want to
set this to "RGB".
4.1 Analog Audio This parameter congures the analog audio signal levels for input and output. Professional
audio equipment has much higher levels than consumer equipment: a 0 VU reading
corresponds to +4 dBu. Connecting a professional +4 dBu device to a consumer audio input -
10dBV (-7.8 dBu) may cause overloading, whereas the output of a consumer device probably
does not have sufcient power to drive a professional audio input. Select the audio setting that
is appropriate for the type of equipment you are connecting to Ki Pro.
5.1 Upconversion This parameter selects the type of upconversion from SD performed, if set up to do so with
parameters 1.6 through 1.8.
ZOOM WIDE (default) Using a combination of zoom and stretch, the image is sized to t a
16x9 screen
ANAMORPHIC Anamorphic full screen display
ZOOM 14X9 Image is zoomed slightly to ll a 14x9 image with black sidebars
ZOOM LTTRBOX Image is zoomed to t the full screen (this can introduce a small aspect
ratio change)
PILLARBOX Image is not changed; black sidebars surround image
5.2 Downconversion This parameter selects the type of downconversion from HD performed, if set up to do so with
parameters 1.6 through 1.8.
LETTERBOX (default) Image is reduced with black top and bottom added to image area,
with the aspect ratio preserved
CROP Image is cropped to t new screen size
ANAMORPHIC HD image is converted to full-screen SD with a 16x9 aspect ratio
(anamorphic)
6.1 Genlock This parameter selects the source of reference video used to genlock to, either automatically or
explicitly. Keep in mind that during recordings, Ki Pro always locks to the selected Video Input
and that the genlock setting is with regards to playback.
INPUT (default) Use the currently selected input as the Genlock source
CMP Y Use component Y as the Genlock source
