Ki Pro Installation and Operation Manual — Installation
Exo-skeleton Setup and Adjustment
The Exo-skeleton option
has two configurations.
As it comes out of the
box, it contains an
adjustable camera
mount on top, a plate
on the bottom for
tripod mounting, and
two thumbscrews for
securing the Ki Pro unit
to the Exo-skeleton.
An option that can be
added is an accessory
rod kit that adds plates
to each side of the Exo-
skeleton frame so that
15mm user-supplied
rods can be used with
the camera.
Rods are handy for
mounting battery
packs, matte boxes, and
a wide variety of other
accessories.

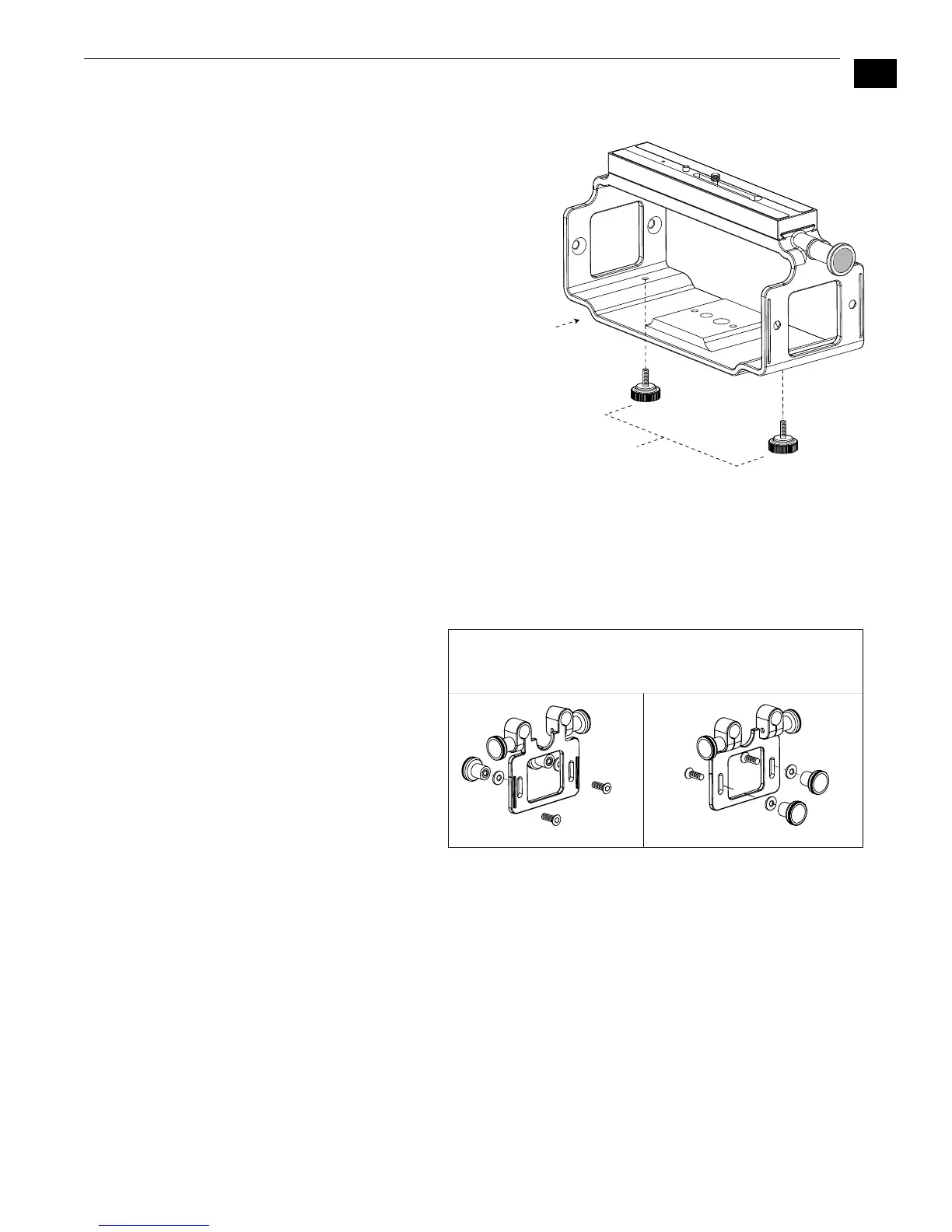

Base Ki Pro Exo-skeleton
chassis with camera mount
Knurled thumbscrews
secure Ki Pro chassis
to Exo-skeleton
Kit components:
2 endplates
4 screws (5/32 allen)
4 knobs with plastic washers
Optional Rod Accessory Kit Assembly
