40
Optional accessories

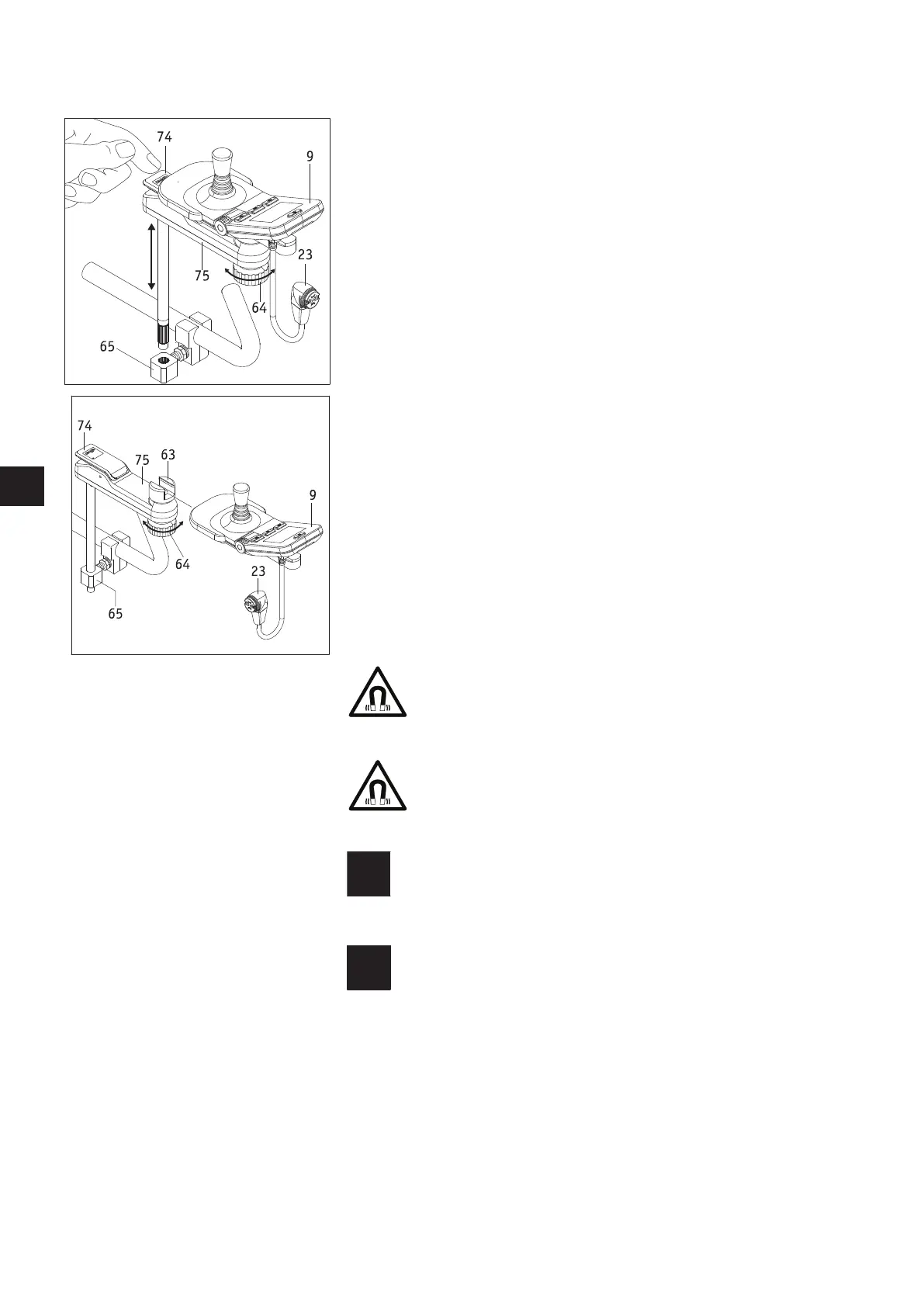

A - Swivel arm for the control unit
To make it easier to drive up to the table edge we recommend fitting the optional swivel
arm. This enables the control unit to be swivelled out, away from its original position.
• Press the cap [74] and swivel the control unit [9] completely to the side.
• Swivel the control unit [9] to return it to its initial position; the cap [74] lifts up and
automatically locks the pivoting mechanism.
• Turning the clamping wheel [64] clockwise releases the control unit clamp inside the
sliding part [63]. This allows the control unit to be moved slightly in longitudinal dir-
ection within the sliding part [63] if necessary.
• After you have set the optimum position for you, you need to fix the control unit in
place by turning the clamping wheel [64] anticlockwise in the sliding part [63].
• If the swivel arm [75] is entirely removed together with the control unit [9], you can
take it out of the holder [65]. However, first remove the plug [23] of the control unit
from the battery (see chapter 4.2).
Removing the control unit from the swivel arm
• Take the plug [23] of the control unit out of the battery (see chapter 4.2).
• Turn the clamping wheel [64] clockwise and slide the control unit [9] out of the slid-
ing part [63].
Attaching the control unit to the swivel arm
• Slide the control unit [9] into the sliding part [63] and fix it in place by turning the
clamping wheel [64] anticlockwise.
• Reconnect the plug [23] of the control unit to the battery (see chapter 5.1).
Before inserting the plug [23] into the socket [29] of the battery
pack, ensure that both parts are clean and there are no metallic
particles on them. If you detect such particles, use a dry and clean
cloth to remove them.
The control unit plug [23] is magnetic. Therefore prevent the plug
coming into contact with medical implants, electronic storage
media, bank cards or similar items.
It is necessary to ensure that the control unit is fixed in place
securely in the sliding part [63] with the clamping wheel [64]. If a
control unit falls to the ground when switched on, this can result in
an unintentional system malfunction and potentially in an accident.
The swivel arm can be fitted
to virtually all wheelchair models. Your
specialist dealer can provide more detailed information.
