4.13.2.3 Recommendations for installation
4.13.2.3.1 Standard Topology

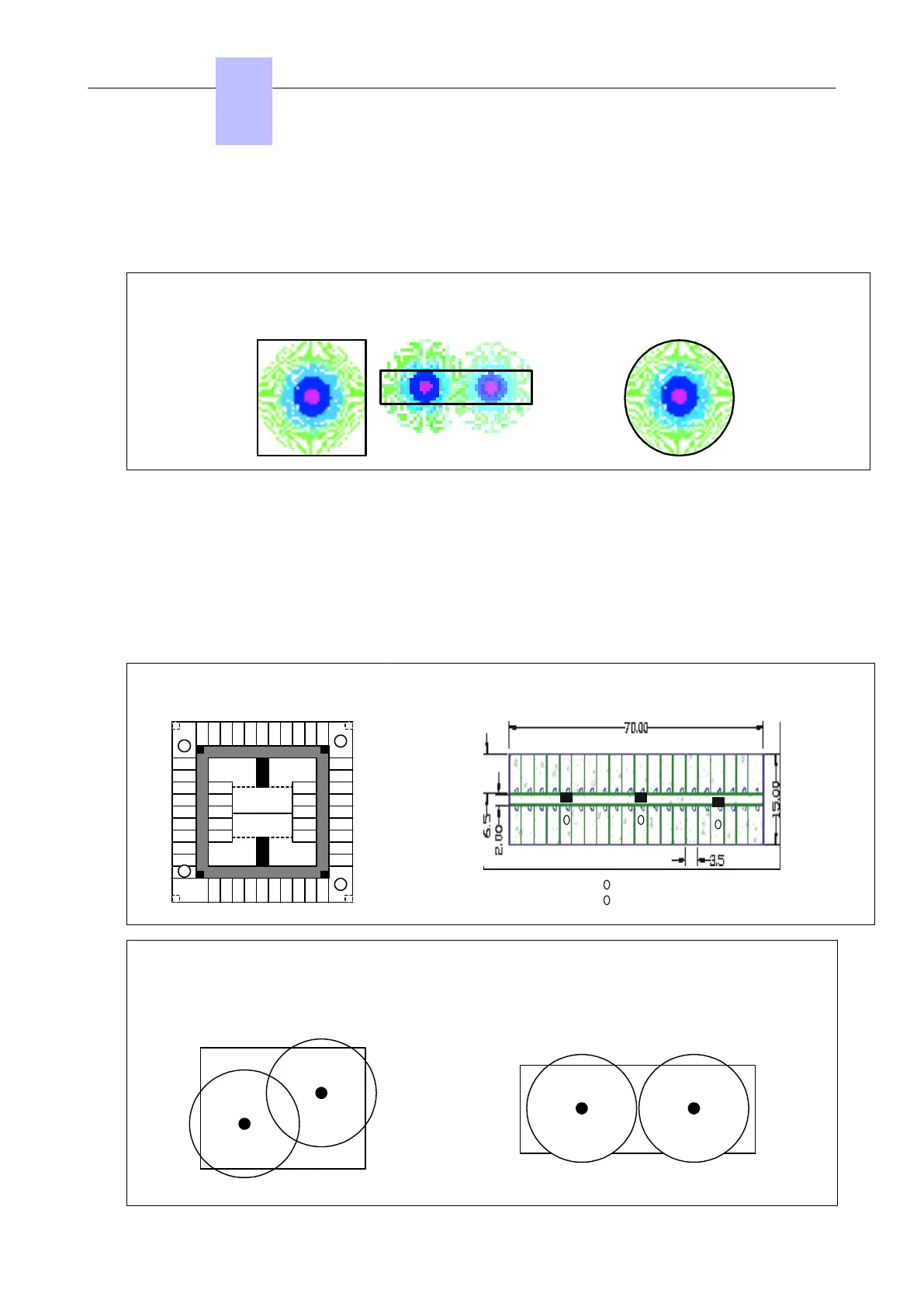

The various building infrastructures are grouped into three types of geometric shape.
Coverage areas SQUARE: Coverage areas RECTANGU-
LAR :
Coverage areas ROUND
The distances quoted below give an idea of typical range of a base station. It is clear that a rectangular
zone requires more base stations to provide full coverage.
4.13.2.3.2 Layout technique
For structures with a number of floors, different solutions can be envisaged as a function of:
• the coverage obtained at each level.
• the position of the 4070 IO/EO (higher or lower level).
4.13.2.3.2.1 Installation examples
Square zone Rectangular zone
2
1
1
2
1
1 2
2
2 floor terminals
nd
1
1 floor terminals
st
Example 1: square building Example 2: rectangular building
1
st
floor 1
st
floor
Chapter
4
Installation and Cabling
3EH21123USAA - Ed. 01 - April 2017 - Installation Manual 132/207
